Overview

FSII-Base-II

The FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.

Wireless

FreeSpeak II Base Station supports the FreeSpeak II family of wireless intercom, including 1.9 GHz and 2.4 GHz frequency bands which can be concurrently deployed on an FreeSpeak II Base Station system. FreeSpeak antenna transceivers, connected via E1 CAT/Fiber plug and play cable connections can be modularly added for coverage and capacity of beltpacks which can roam between overlapping transceivers. FreeSpeak beltpacks can have their keys assigned to any Channel, Group or Interface Port on the system.

Partyline, Analog Audio & Control - Interfacing

FreeSpeak II Base Station can interface to a variety of 3rd party audio and intercom systems with audio interface ports assignable to any Channel, Group, FreeSpeak Beltpack and FreeSpeak II Base Station keyset on the system:

• 4-Wire provides the ability to connect analog line-level audio inputs and outputs to FreeSpeak II Base Station.
• 2-Wire Partyline allows interfacing to existing analog partyline intercom system infrastructures or to add Partyline user stations or interfaces using FreeSpeak II Base Station’s built in power supply.
• Program Audio Input provides a line level analog audio input, on an XLR connection, with assignability to any keyset or channel.
• Stage Announce Output a line level analog audio output, on a XLR connection with assignability to any keyset or channel.

    GPIO provides Inputs and Relay Outputs for system control. Inputs allow activation of audio crosspoints while Outputs can be activated upon key presses, audio crosspoints and or call signals configurable in FreeSpeak II Base Station’s Logic Event configurator.

Intercom User Station

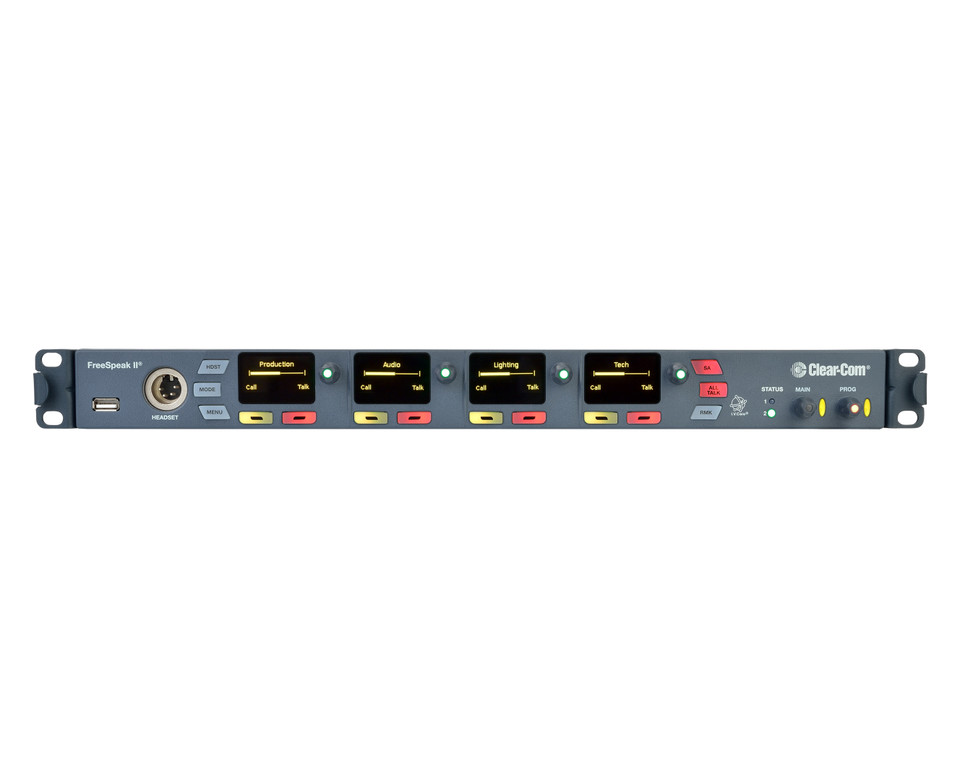

FreeSpeak II Base Station’s front panel user station provides four keysets assignable to any Channel, Group, FreeSpeak beltpack, Program Audio or Stage Announce on the FreeSpeak II Base Station system. The user station is provisioned with a headset connection in addition to All Call, Stage Announce and Remote Mic Kill.

System Configuration & Monitoring

FreeSpeak II Base Station front panel menus provide the ability to configure system configuration using an interface consisting of high contrast screens coupled with tactile rotary encoders and buttons. With the front panel, the status and utilization of all transceivers and beltpacks can be monitored. FreeSpeak II Base Station’s Core Configuration Manager™ (CCM) is an integrated, browser-based configuration utility enabling rapid setup, configuration and monitoring of the system.

Scalability

FreeSpeak II Base Station is available for 5 or 25 beltpack system with a field upgrade option.

Specifications

Capacity

FreeSpeak Wireless Intercom

(10) E1 Transceivers (1.9, 2.4 GHz)

(5) or (25) Beltpacks (1.9, 2.4 GHz)

Configuration

• (12) Channels
• (12) Groups
• (50) Roles for FreeSpeak

Connectors

Headset: 4-pin XLR-M (X4), 5-pin XLR-F (X5)

2-Wire I/O: (4) XLR-3F

4-Wire I/O: (4) RJ45

Program Audio Input: XLR-3F

Stage Announce Output: XLR-3M

GPIO: (1) DB15F (2 GPI, 4 GPO)

FreeSpeak II E1 TCVR/SPL Ports: (2) RJ45, (2) SFP (RJ45 or SFP selectable)

FSII DECT Synchronization: (2) RJ45 (Input and Output)

LAN: (2) RJ45

AC Power Connector: IEC-C14

DC Power Connector: KPJX-4S-S

Grounding Screw: Terminal

Note: While mechanically identical, SFPs are designed with different properties for data rates, power and fiber cable type. Please refer to the Clear-Com SFP Compatibility Chart for compatible SFP transceivers.

Controls and Indicators

Front Panel:

(4) OLED Displays

(2) Power Supply Status LED

(1) Headset Mic Button

(1) Front Panel Mode Button

(1) Menu Access Button

(4) Encoders for Menu & Level Control

(4) Call & Talk Buttons

(1) Stage Announce Button
(1) All Talk Button

(1) Remote Mic Kill Button
(2) Status LEDs

(1) Main Listen Level Encoder

(1) Program Audio Level Encoder

Rear Panel:

(2) LAN RJ45 Link/Activity LEDs

(2) FSII E1 TCVR RJ45 Link/Activity LEDs

(4) 2-Wire Power / Configuration Indicator LEDs

Microphone Input

Input Type: Dynamic/Electret – Selectable

Headset Mic Voltage: 5V

Input Level (nominal): -58dBu

Input Level (max): -10dBu

Frequency Response: 300Hz to 22kHz ±3dB

Mic Limiter Threshold: -35dBu ±3dB

Mic Limiter Range: ≥ 20dB

4-Wire Line Level Interfaces:

Transformer balanced input and output

Input: Nominal Level: 0dBu (adjustable -12dB to +12dB)

Maximum Level: +18dBu

Frequency Response: 80Hz to 22kHz ±3dB

Impedance: >= 10KΩ

Output: Nominal Level: 0dBu (adjustable -12dB to +12dB)

Maximum Level: +18dBu

Frequency Response: 80Hz to 22kHz ±3dB

Impedance: 120Ω + 10%

2-Wire Partyline Interfaces

Unbalanced High-Impedance bridging

Compatibility: Clear-Com, RTS-TW with Call and Remote Mic Kill

Termination: Optional per pair (A/B or C/D)

Nulling: User initiated Auto-Calibration

Null Depth: >60dB at 12kHz

Nominal Level: CC: -18dBu, RTS-TW: -12dBu (adjustable -3dB to +3dB)

Headroom: 18dB

Frequency Response: 80Hz to 12kHz ±3dB

Impedance: >= 10KΩ bridging

Total Harmonic Distortion (THD): < 0.1% THD @ 1 kHz

Power: 400mA optional per pair (A/B or C/D)

Voltage: 26-28V DC

Frequency Response

Headset Mic: 300Hz to 22kHz

Headset Speaker: 50Hz to 18kHz

FreeSpeak II: 200Hz to 7.1kHz

4-Wire: 80Hz to 22kHz

2-Wire: 80Hz to 12kHz

Logic Inputs – GPI

Assignable to activation of audio crosspoints

Input: 2

Style: Opto-Isolated. Powered input, close contact to ground

Input Voltage Range: 0 - 12V DC or AC

Input Current: >=1mA required

Logic Outputs – GPO/Relay

Assignable to talk, call keys, audio crosspoints or call

Style: SPDT / Power Relay

Normalized: Open or Closed, separate pins

Switching Voltage (Max): 60V DC

Switching Current (Max): 2A

Power

AC Internal Power Supply:

Input Voltage Range: 100 - 240V AC

Input Frequency Range: 50 - 60Hz

Input Power (Max): 48W

BTU (Max): 164BTU/h

Input Power Connector: IEC-C14

DC Power Input: Voltage: 12V DC ± 5%

Current (Max): 4A

Power (Max): 48W

BTU (Max): 164BTU/hr

Input Power Connector: KPJX-4S-S

This unit can be powered via DC input using:

AC Adapter - Inline:

Type: PSU-EXT-002 (supplied)

Input Voltage Range: 100 - 240V AC

Input Frequency Range: 50 - 60Hz

Input Power Connector: IEC-C14

Output Voltage: 12V DC ± 5%

Output Current (Max): 5A

Output Power (Max): 60W

Output Power Connector: KPPX-4-P

Environmental

Operating: 32° to 113°F (0° to 45°C)

Storage: -22° to 158°F (-30° to 70°C)

Humidity: 20-90% Non-Condensing

Dimensions

1RU

19 x 1.7 x 10.2in (WxHxD)

(482.6 x 43.2 x 259.0mm)

Weight

5.57lbs (2.5kg)
