Overview

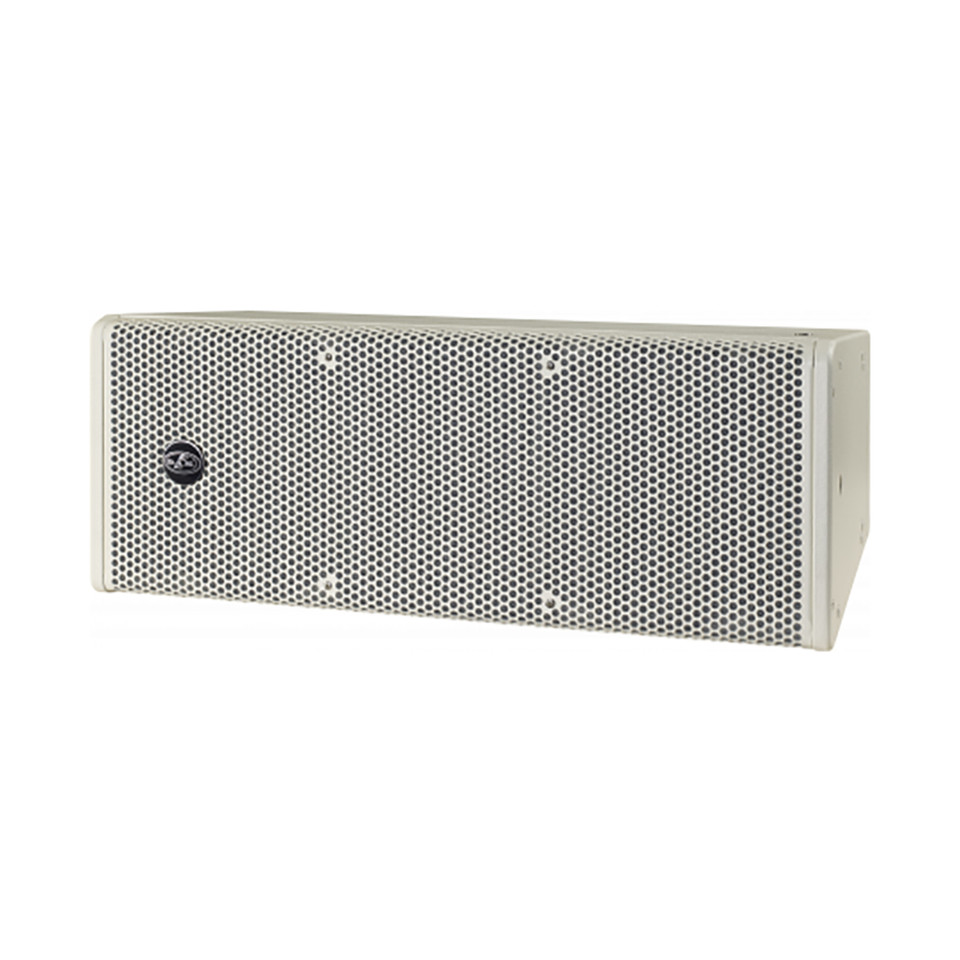

The ARTEC-320-W is a passive installation line array in a double 10” configuration. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. The JP-320 joining plates allow for an effective installation solution and are compatible with the ARTEC-322S subwoofer systems. The ARTTEC-320 is delivered with the joining plates.
Features
- Installation Line Array
- 2 x 10MI low frequency loudspeakers, 2.5” VCD
- 1 x D.A.S. M-75 compression driver
- Rigging systems for permanent installation
- Rigging compatible with the Artec-322S
Applications
- A/V systems and corporate events
- Meeting rooms, classrooms, and exhibit areas
- Installations in bars and clubs
Specifications
Performance
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 90º
- Vertical Coverage: Splay Dependent
- Nominal Impedance: 16 ohms
- RMS Power Handling: 500 W
- Peak Power Handling: 2000 W
- On-axis Sensitivity 1W/1 m: 90 dB SPL
- Maximum Peak SPL at 1 m: 132 dB
- Recommended Amplifier: PA-2700
- Recommended Processor: DSP-226
Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: White
- Depth: 360 mm (14,2 in)
- Dimensions ( H x W x D ): 345 x 710 x 360 mm, 13,6 x 28,0 x 14,2 in
- Net Weight: 26,5 kg ( 58,3 lb )
Components
- LF Driver: 10MI
- HF Driver: M-75
