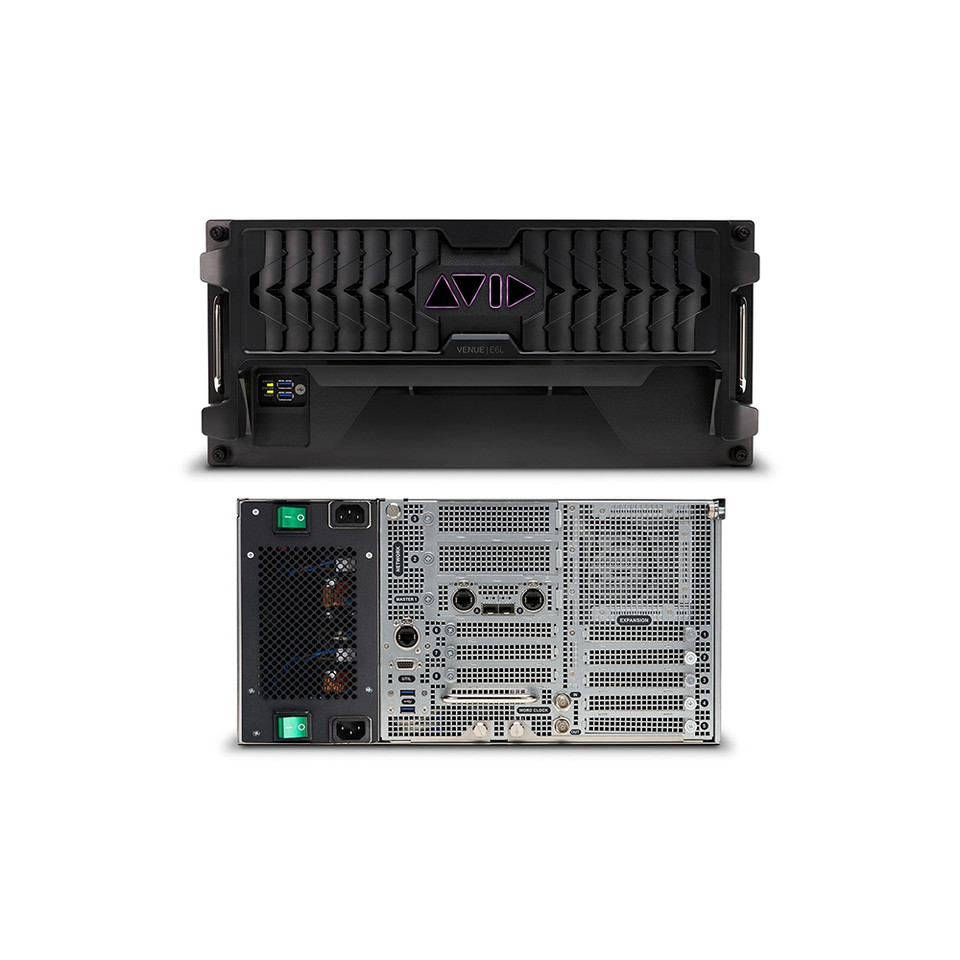

Overview

Get the power and performance you need to handle any small- to mid-size live production in a more affordable engine that supports up to 112 input channels.

Features

• 112 input channels
• 48 mix busses + LCR
• 100 plugin rack slots
• 16 x 16 matrix
• Includes 1 HDX-192 DSP card for sound processing (supports up to 2)
• 2 expansion slots to add capabilities through option cards, including Waves SoundGrid support, Ethernet AVB, and MADI

Specifications

Sample rates

96 kHz

Input channels

112

Input processing

HPF, LPF, 4-band PEQ, Expander/Gate, Compressor/Limiter, Delay, 4 plugin inserts,hardware insert

Mix busses

48 + LCRO

utput processing

7-band PEQ, Compressor/Limiter, Delay, 4 plugin inserts, hardware insert

Matrix

16 x 16

VCAs

24

Stereo solo busses

2, with independent control

Graphic EQs (31-band)

32

Digital signal processing

Supports up to two HDX-192 DSP Expansion Cards for plugin processing; includes one card

Plugin support

64-bit AAX DSP; also supports Waves SoundGrid systems through the WSG-HD Option Card for full integration with S6L, or over MADI

Plugin slots

100

Pro Tools integration

Record/play back up to 128 audio tracks via Ethernet AVB

Expansion Option Card slots

2 max

Ethernet AVB

portsIncludes one AVB-192 Ethernet AVB Network Card with two ports (up to two AVB cards supported), selectable as etherCON (copper) or SFP (fiber), with redundant ring topology

I/O sharing

Supports up to three Stage 64 and four Stage 16 racks, up to 192 inputs total (requires two AVB-192 Ethernet AVB Network Cards to share I/O)

Word Clock I/O

Clock I/O BNC, 75 Ohm coaxial

USB ports

5 USB 2.0 ports (2 front, 2 back, 1 internal)

Power supply

Dual redundant, internal

Dimensions (H x W x D)

8.6 x 16.9 x 19 inches (218 x 430 x 483 mm)

Rack spaces

5U

Weight

74 lbs (33 kg)
