Overview

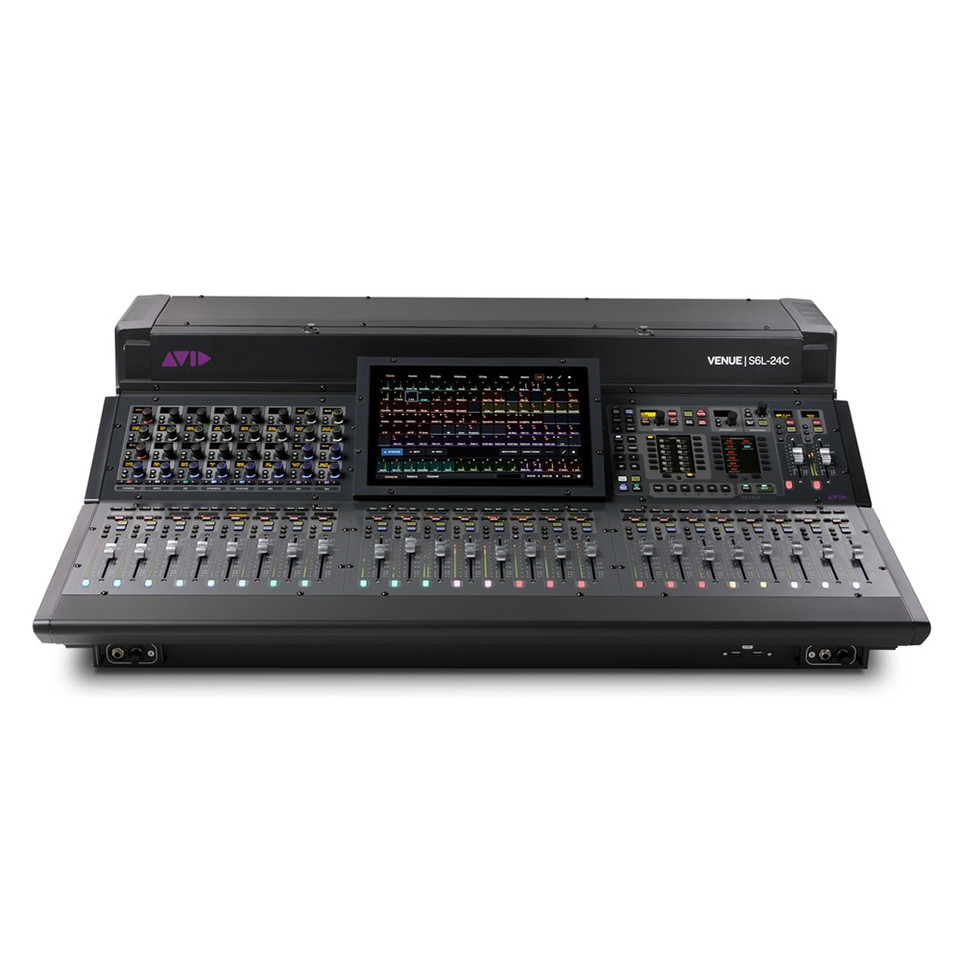

For smaller spaces and better portability, S6L-24C provides easy hands-on control and powerful performance in a more streamlined and affordable control surface.

Features

• 24 channel faders across 3 Channel Fader Modules, plus 2 assignable faders in the Master Live Module
• 32 assignable channel knobs (encoders) across 1 Channel Knob Module
• 1 Master Touchscreen (central screen for quick navigation, parameter identification, and control, plus Channel and Meters view)
• 1 Master Live Module (provides control over global system parameters, such as channel banking, snapshots, and monitoring)
• Local analog I/O, digital I/O, and ancillary I/O, including ECx for remote control and DVI for connecting an external monitor (sold separately) for VENUE software display

Specifications

12-inch daylight-visible touchscreens

• 1 Master Touchscreen

Faders

• 24 + 2

Knob Modules with high-resolution OLEDs and tri-color function indicators

• 32 assignable knobs across 1 Channel Knob Module

Master Live Module

• Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons

Metering

• 8 XLR mic/line inputs with 48V and signal present LEDs

Analog inputs

• 8 XLR mic/line inputs with 48V and signal present LEDs

Analog outputs

• 8 XLR outputs with mute and signal present LEDs

Digital inputs

• 4 pairs of XLR stereo AES/EBU (8 channels total)

Digital outputs

• 4 pairs of XLR stereo AES/EBU (8 channels total)

Headphone outputs

• 2 independent 1/4" TRS stereo headphone jacks

Ancillary I/O

• DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O

Ethernet AVB ports

• 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology

Power supply

• Dual redundant, internal

Height (front, rear)

• 3.6, 8 inches (91, 205 mm)

Width

• 38.9 inches (989 mm)

Depth

• 31 inches (787 mm)

Weight

• 84 lbs (38 kg)
