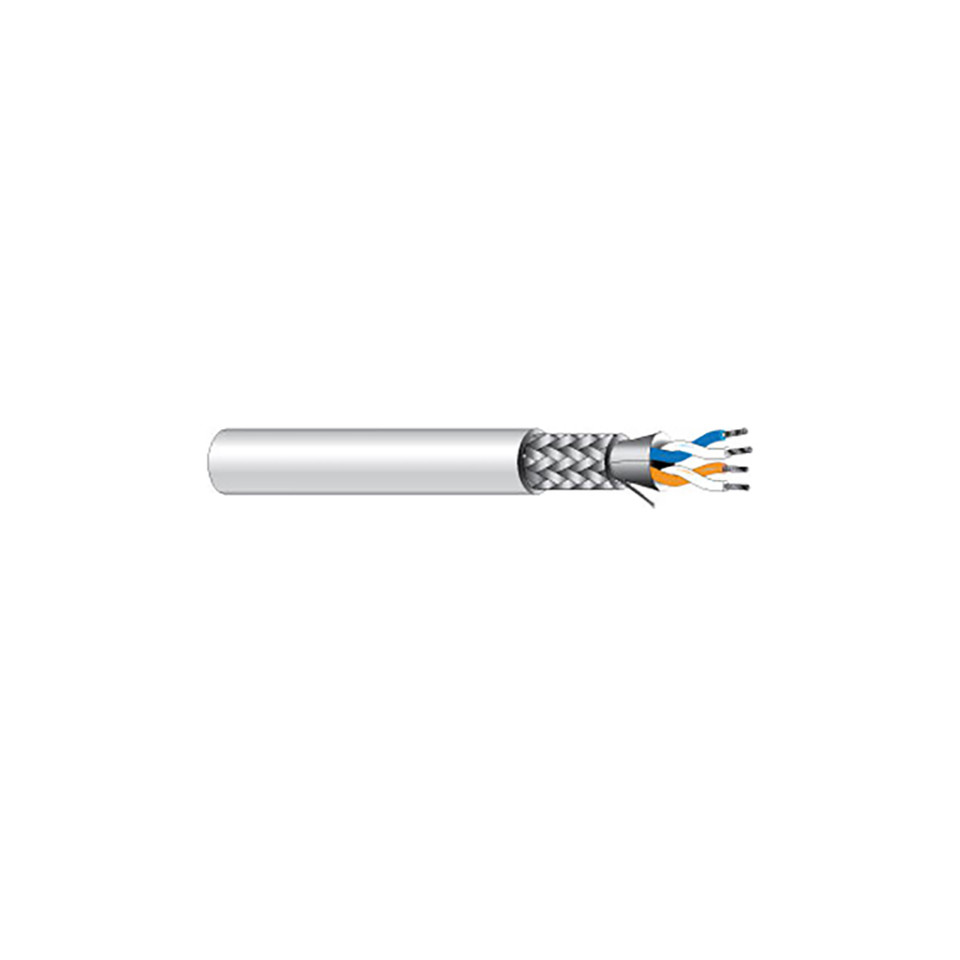

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Pairs | 2 |
| AWG Size | 24 |
| Conductor Stranding | 7x32 |
| Conductor Type | Tinned Copper |
| Nominal DCR | 26 Ohm/1000ft |
| INSULATION PARAMETER | |
| Insulation Type | Foam FEP |
| Insulation Thickness | 0.023 in |
| Insulation Color Code | 1.Blue-White,Blue |
| SHIELDING PARAMETER | |
| Shield Type | Overall 100% Aluminum Foil |
| Shield Type 2 | 90% Tinned Braid |
| Drain Wire Type | Tinned Copper |
| Drain Wire AWG | 24 AWG |
| ELECTRICAL CHARACTERISTICS | |
| Nominal Impedance | 120 Ohm |
| Nom. Cap. Between Conductors | 12.8 pF/ft |
| Nom. Cap. Conductor to Shield | 23 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Total Number of Conductors | 4 |
| Jacket Type | Flexible Plenum |
| Jacket Thickness | 0.017 in |
| Nominal Cable O.D. | 0.305 in |
| Plenum | Yes |
| NEC UL Rating | CMP |
| RoHS Compliant | Yes |
| Pull Tension | 56 lbs |
| Bend Radius | 2.745 in |
| Cable Weight | 38 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| Nominal Velocity of Propagation (VP) | 69 % |
| Delay Skew | 1.6 ns/ft |
| UL Flammability | NFPA 262 Plenum |
| Operating Range | -0 to 60 Deg C |
| UL Voltage Rating | 300 |
