6 CH Pro Headphone Amp 1U

SKU: ROLLS-RA62c
MSRP: $306.00
MAP: $239.00

Overview

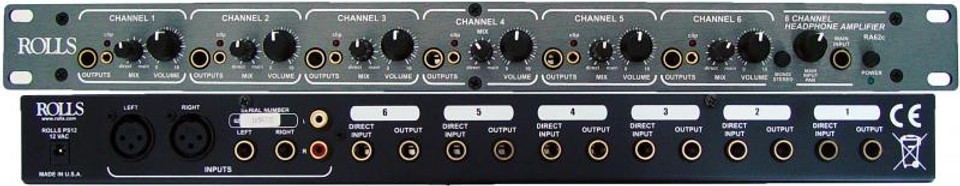

The ROLLS RA62c is a six-channel headphone/earphone amplifier for professional audio monitoring. A variety of input options are available including 1/4", RCA, and balanced XLR. Since the MONO/STEREO switch is after the pan control, it will mix 2 MONO signals and their balance can be adjusted with the Pan control. With the addition of rear panel Direct Input connectors, each channel may mix a second stereo signal.

Specifications

  • Input Impedance: 10K Ohms unbalanced
  • Max Input Level: +18 dBV
  • Input Connectors: 1/4" TRS stereo, R & L bal. / unbal. 1/4", RCA, R & L balanced XLR, 6: 1/4" TRS Direct Input jacks
  • Output Connectors: 12: 1/4" TRS Stereo jacks, 6: 1/8" (3.5 mm) TRS Stereo jacks
  • Max Gain: 20 dB/Channel
  • Output Power: 972 mW/side, 1944 mW/Channel ( @ 32 Ohms )
  • Frequency Response: DC - 30 kHz
  • S/N Ratio: 90 dB
  • THD: <.008%
  • IMD: <.008%
  • Phase Shift (In to Out): 0 deg.
  • Slew Rate: 25 V per microsecond Second
  • Crosstalk: - 65 dB
  • Power: 12 VAC (Rolls Model PS12)
  • Size: 19" x 1.75" x 6.5" (48cm x 4.5cm x 17cm)
  • Weight: 7 lbs (3KG)
  • Six Channels of clean, quiet headphone/earphone amplification.
  • Individual Direct Inputs to mix separate stereo signal with Main Input signals.
  • 1/4" and 3.5mm Headphone/Earphone Outputs.
  • LED Clip indication.
  • Stereo/Mono operation.
