Overview

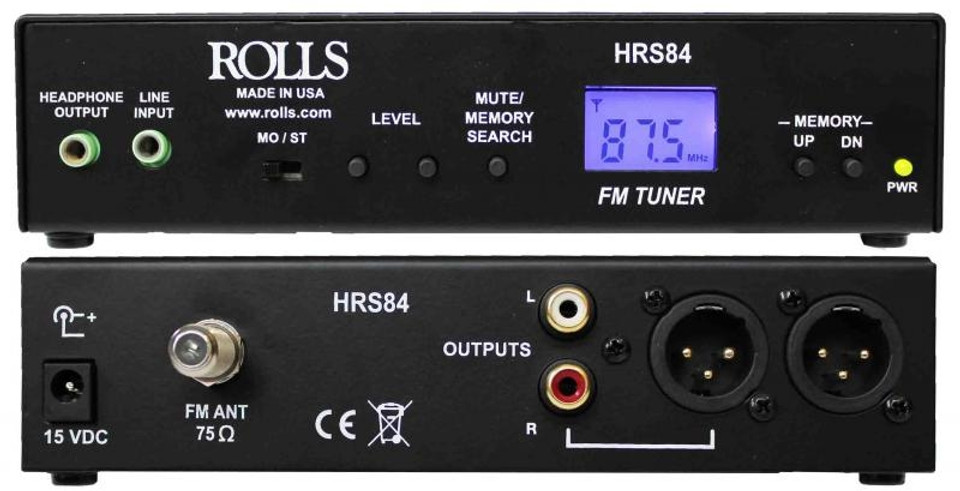

The HRS84 is a digital FM tuner. It features professional line level XLR outputs. A dedicated headphone output on the front of the unit. Operates in Mono or Stereo. Up to two HRS84’s can be rack mounted in a single standard 1U rack space, the Rolls URT5 (Universal Rack Tray), or the RMS270 Rack Module System.

Specifications

• 30 dB quieting sensitivity: 28 dB
• Image Rejection 105.9 MHz: 20 - 26 dB
• 3dB Limiting Sensitivity: 28 - 35 dB
• THD 1 mV Input: 0.5 - 2 %
• Auto Tuning Sensitivity 97.9 MHz: 25 - 30 dB
• Current: 100 mA
• Supply Voltage: 12-15 VDC
• Dimensions: 6.75"w x 3"d x 1.6"h
• Weight: 1.1 lbs
• Tuning Range: 87.5 - 108 MHz
• Output Level control
• XLR and RCA Outputs
• FM stereo or mono operation
