Microphone Preamplifier-Stereo Output with Compressors

SKU: RDL-EZ-MPA1X
MSRP: $279.69
MAP: $209.77

Overview

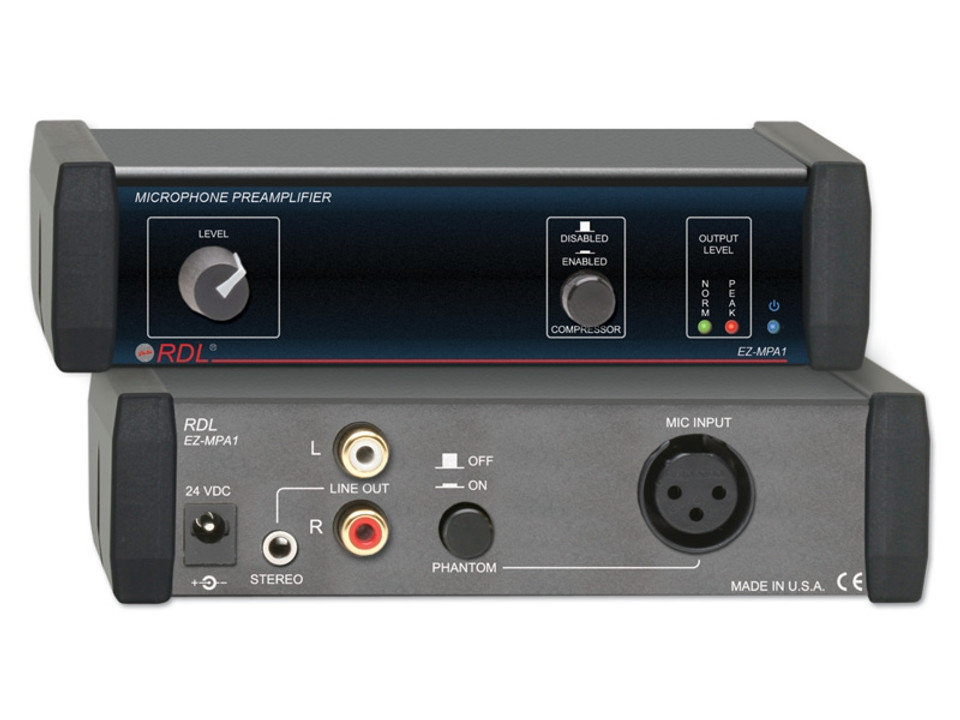

The EZ-MPA1 is a microphone preamplifier with front-panel volume control and audio level metering. A front-panel switch engages an audio compressor to control overloads and clipping during high level audio bursts or peaks from the microphone. Dynamic or condenser microphones are both supported with rear-panel switchable phantom voltage. The preamplified mic signal feeds both channels of the line output on RCA or MINI jacks. LED VU metering facilitates easy level adjustment. The EZ-MPA1 is ideal to add microphone inputs to mixers and amplifiers with line inputs. It is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, studios and commercial sound systems.

Features

  • Balanced Microphone Input on Rear-Panel XLR
  • Switch-Selectable Phantom on Rear Panel
  • Unbalanced Output on MINI or RCA Rear-Panel Jacks
  • Preamp Feeds Left and Right Output Channels
  • Front-Panel Compressor Enable/Disable Switch
  • Audio Compressor Controls Overloads
  • Front-Panel LEVEL Control
  • Dual-LED VU Meter

Specifications

Input1.2 k? balanced on XLR jack, mic-level, -11 dBu max.
Level controlOff to 50 dB gain
Outputs (2)-10 dBV nominal on RCA jacks or Mini jack, +16 dBV max. without compression, -4 dBV max. with 20 dB compression
Frequency Response80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter)
THD+N< 0.1% (35 Hz to 20 kHz, -50 dBu input)
Compression 20 dB range, switch-selectable
CMRR> 55 dB (20 to 20 kHz)
MeteringDual-LED VU Meter, calibrated to -10 dBV output
PhantomSwitch-selectable 24 V (IEC 61938: 2013)
Noise< -65 dB (below -10 dBV output, -50 dBu input)
24 Vdc power supply current55 mA (idle), 80 mA (max.), 100 mA (max. with phantom)
Case dimensions5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size1/3 rack width
Package TypeCardboard Box
Package Dimensions9.5 x 7 x 2.25 in.
Shipping Weight0.955 lbs.
WEEE weight0.56 lbs.
Tariff code8518.40.2000
