QSC AD-S12-BK

QSC AD-S12-BK

QSC AD-S12-BK

QSC AD-S12-BK

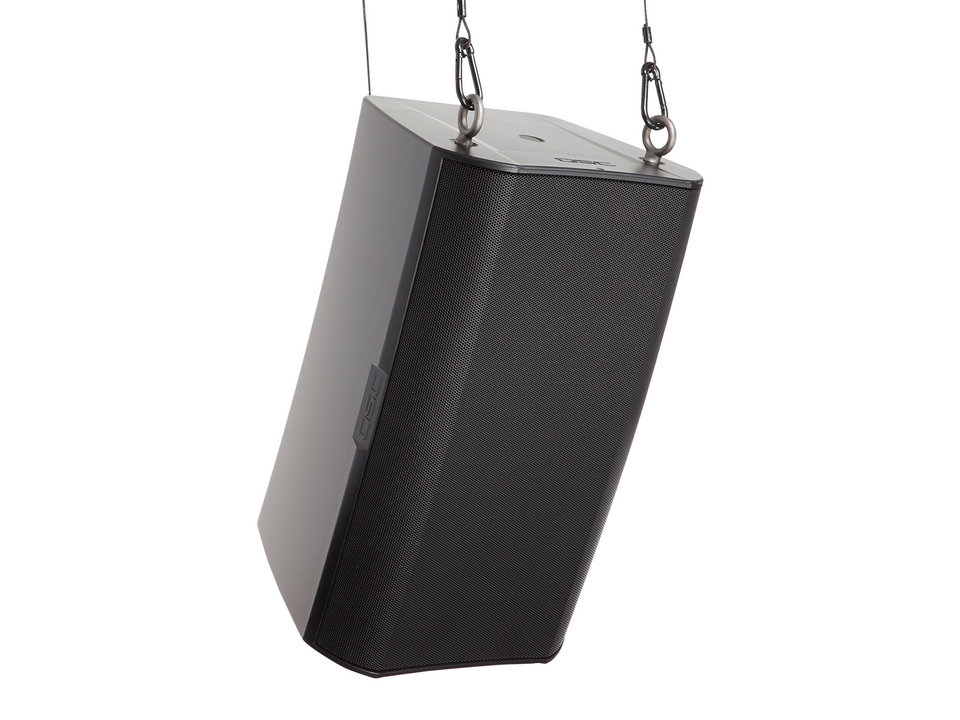

12" Two-way surface speaker, 75° conical DMT coverage, includes X-Mount and weather input cup. Available in black.

SKU: QSC-AD-S12-BK
MSRP: $1,100.00
MAP: $1,100.00

Overview

The AD-S12 12" 2-Way AcousticDesign Surface Mount and Loudspeaker from QSC is designed to serve as a versatile, all-weather device. The speaker uses DMT (Directivity Matched Transition) technology to provide a uniform frequency response over the axisymmetric coverage area. The ABS polymer enclosures, sealed input panel covers, and powder coated aluminum grille allow for indoor and outdoor use.

The included X-Mount System is designed to offer simple installation. Articulation marks allow the loudspeaker to be pre-installed on the ground and knurled surfaces at the pivot planes work to prevent the speaker from drifting or sagging over time.

Features

  • 12” weather treated woofer; 1.4” compression driver
  • 75° conical DMT coverage
  • Maximum peak SPL 126 dB
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS processing or CXD amplifier platforms
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online

Specs

Frequency Range 52 Hz to 20 kHz
Noise Power 300 W / 50 V (rms)
Sensitivity 95 dB SPL
Coverage Angle (-6 db): 75°
Directivity Factor 12
Directivity Index 11 dB
Maximum Sound Pressure Level (SPL) Continuous: 120 dB
Peak: 126 dB
Impedance 8 Ω
Recommended Amp Power 600 W
Transformer Taps 70 V:
100 V:
High Frequency Transducer 1" exit / 1.4" voice coil compression driver
Low Frequency Transducer 12" weather resistant paper cone woofer
Input Connector Euroblock connector with parallel output terminals
Weight 35.2 lb (16.0 kg)
Dimensions 23.4 x 13.9 x 12.7" (59.4 x 35.4 x 32.3 cm)
