Integrated Sub/Sat pendant system with a 6.5" dual voice coil subwoofer and (4x) 2.75" satellites, 70/100V transformer with 6Ω bypass, includes cable and fastener for suspended installation. Color-White.

SKU: QSC-AD-P.HALO-WH
MSRP: $810.00
MAP: $810.00

Overview

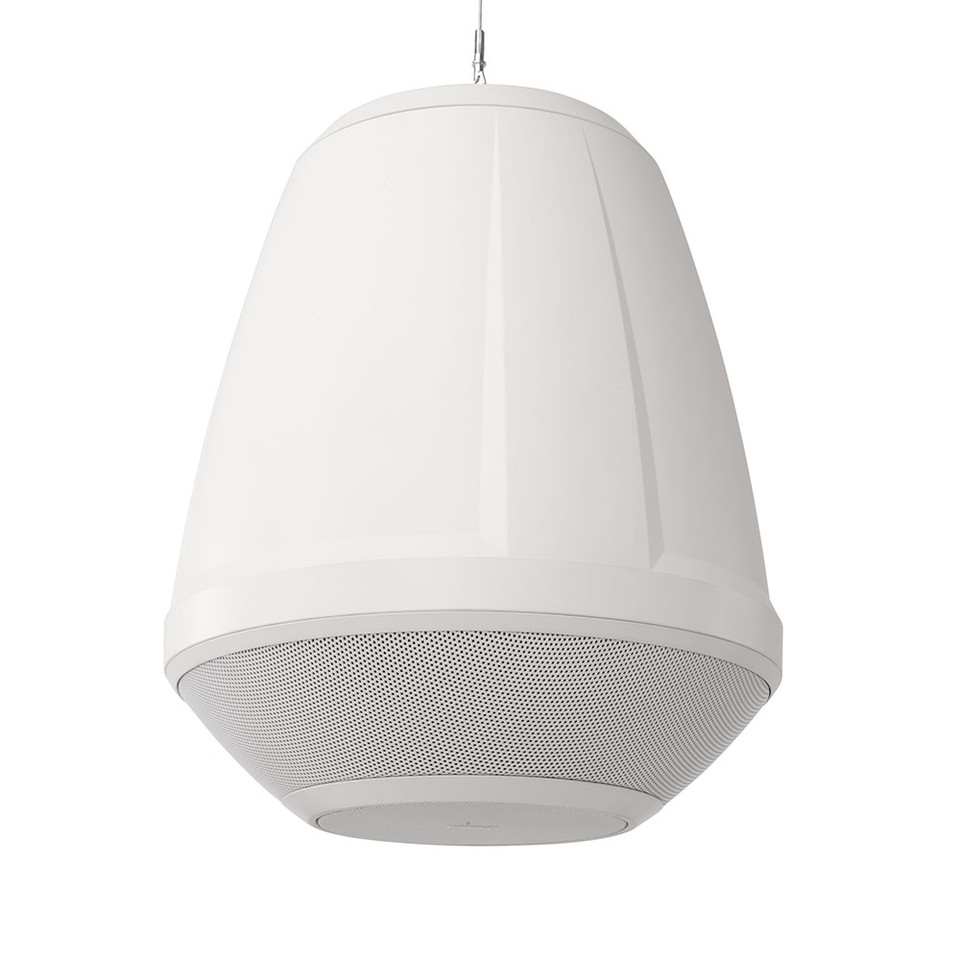

The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.

Features

  • All-in-one solution, no assembly required: The AD-P.HALO is purpose-designed and fully integrated in a single-enclosure pendant that is ready to hang right out of the box. This hassle-free design simplifies and expedites the installation process, lowering the overall project costs and allowing the integrator to focus on the sound.
  • Designed for performance and musicality: Featuring a 6.5" subwoofer and four 2.75" transducers in a single, pendant-mount enclosure, the AD-P.HALO brings high-performance and musicality to high-end retail and hospitality applications where sound drives the atmosphere. The 200 W RMS power rating provides significant dynamic headroom that far surpasses the background music performance of traditional two-way pendant-mount loudspeakers.
  • Perfect AcousticDesign Series companion:  The AD-P.HALO joins the AcousticDesign Series portfolio of loudspeakers, which offer sleek aesthetic design and high-quality sound across multiple form factors (ceiling-mount, pendant-mount and surface-mount).

Specifications

  • Systems type: Integrated SUB/SAT
  • LF Transducer: 6.5 in (165.1 mm)
  • HF Transducer: 4x 2.75 in (69.85 mm)
  • Frequency range: 40 Hz - 20 kHz
  • Sensitivity: 86 dB
  • Rated noise power: 100 W
  • Max noise voltage: 24.5 V RMS
  • Coverage: 110° conical
  • Directivity index: 8 dB
  • Directivity Factor: 6
  • Maximum SPL (continuous/peak): 105 / 111 dB
  • Nominal impedance: 6 Ω
  • Crossover frequency: 250 Hz (2nd order low-pass + 3rd order high-pass filters)
  • Transformer Taps: 70 V : 12.5, 25, 50, 100, 100 V : 25, 50, 100
  • Port Tuning: 50 Hz
  • Input connectors: 4-pin male/female Euroblock with pass-thru and locking screws
  • Enclosure material: Injection-molded ABS baffle and enclosure
  • Grille material: Stamped steel, perforated and powder-coated
  • Product dimensions: Diameter: 339.8 (mm) (13.37 in), Height: 433 (mm) (17.04 in)
  • Shipping Dimensions (W x D x H): 535 x 445 x 435 (mm), (21.06 x 17.52 x 17.13 in)
  • Net weight: 10.2 lb (22.5 kg)
  • Shipping Weight: 12.5 lb (27.6 kg)
