Neumann 508296

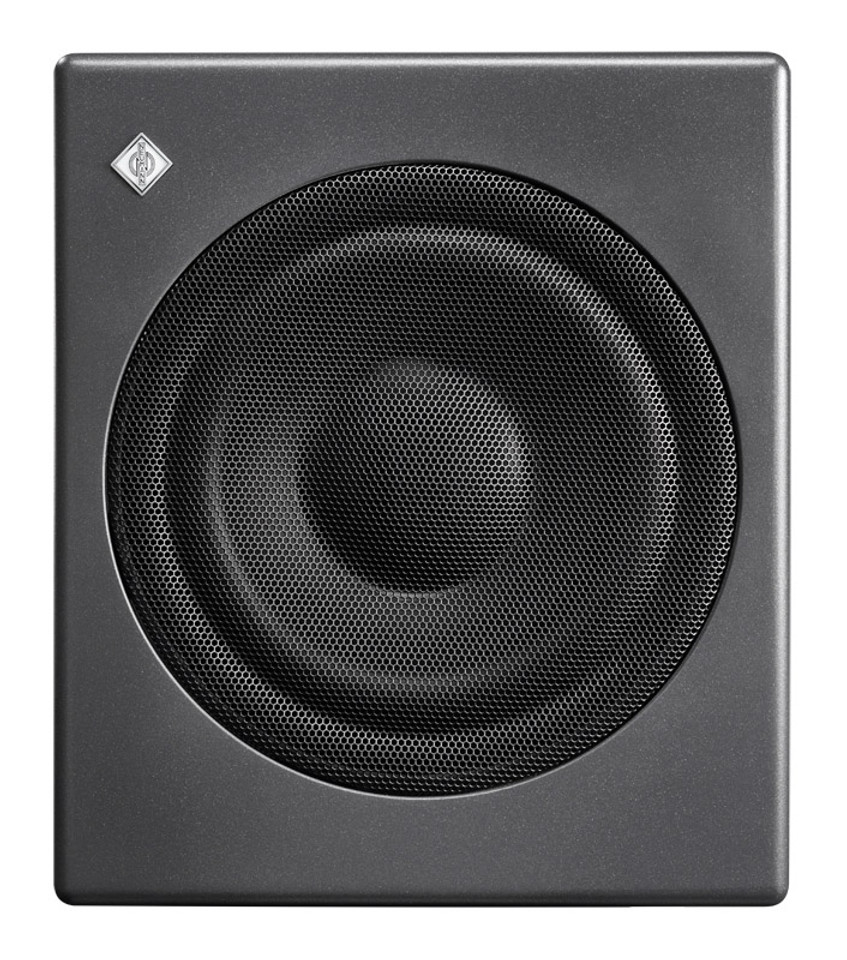

Active DSP Subwoofer, 10" driver, 48.4 liters, 256 W, 105 dB SPL, 18-750 Hz, anthracite metallic, 100-240 VAC, 3 Mains cables (EU, UK, US)

SKU: NEU-508296
MSRP: $2,199.00
MAP: $1,750.00

Overview

Deep bass in a small space
The compact KH 750 DSP is the ideal choice for smaller rooms and smaller studio monitors, such as the KH 80 DSP. It has a unique and flexible 2.0/0.1 Bass Manager allowing the subwoofer to be used in many different system configurations. On the back panel there are analog and digital inputs and outputs, four routing modes and adaptable acoustical controls to allow for seamless system integration. The Neumann.Control software gives access to many additional functions inside the subwoofer. The KH 750 DSP can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.

Dealer Description
The newly designed 10” long-throw driver has a large magnet, linear motor design and a very stiff pressed steel basket. As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. The well-braced cabinet is a sealed designed which brings the fastest possible transient response. The two analog XLR inputs are balanced as are the two analog XLR outputs. The 192 kHz / 24-bit digital input can accept AES3 and S/P-DIF signals. There is a bypassable standby function and the switch-off time can be adjusted in Neumann.Control.

Control and align your monitor setup with your iPad®
Via standard IP networking, Neumann.Control gives access to many additional the functions of the KH 750 DSP Subwoofer. Systems of loudspeakers can be defined, from mono to 3D, aligned for a good in-room sound, and then operated centrally: Setup, Align, Operate. At last, you do not have to be an expert to optimally integrate this subwoofer into your system, even in a small room.

Neumann.Control for iPad®
The Neumann.Control app for iPad® offers several features allowing you to setup, align and operate the KH 750 DSP and KH 80 DSP even in large setups up to 9 loudspeakers.

The key features are:

Setup:

  • 1, 2, 4, 5, 7 and 9 loudspeakers and subwoofers
  • Identify loudspeakers and subwoofers on the network that are in the room
  • Assign the identified loudspeakers and subwoofers to positions in the room

Align:

  • Guided Alignment – a set of simple questions resulting a well-balanced sound. The Guided Alignment is a process where you are asked very simple questions about the room and the loudspeaker/subwoofer position, and then the app adjusts the response of each loudspeaker/subwoofer accordingly.
  • Manual Alignment – an 8-band fully parametric equaliser for expert users. In Manual Alignment expert users have complete freedom to adjust an 8-band parametric equalizer, levels and delays in each loudspeaker/subwoofer as they wish. Manual Alignment can also be used to edit Guided Alignments in a more detailed way.

Operate:

  • System and alignment selection
  • Volume control, preset levels, dim, mute all
  • Groups, solos, mutes
  • Other system settings such as delay, standby level and logo brightness

System Requirements: iPad® with iOS® 10 or higher

Applications:

  • Decreased the bass extension of the monitoring system
  • Increasing the maximum SPL of loudspeakers
  • Decreasing harmonic and intermodulation distortion of loudspeakers
  • Reproducing the LFE channel
  • Reproducing the “Sub” signal of a bass managed multichannel source
  • Working as an extension for KH line subwoofer systems

Compact ultra stiff wooden cabinet

  • Tough painted finish and high density rubber isolating feet
  • Excellent self-damping properties leading to minimal cabinet resonances
  • No standing wave resonances inside cabinet
  • Tight bass sound due to very low group delay

In-house modelled long-throw bass driver with Extremely Linear Force Factor™ (ELFF™) and robust built-in grille

  • Damping of break up modes brings low distortion at high sound levels
  • Extremely linear force factor provides low harmonic distortion even at high excursions
  • Reduced air noise and improved rocking modes
  • Grille protects against mechanical damage

2.0/ 0.1 Bass Management

  • Stereo and externally bass managed applications
  • Bypassable 4th order crossover for maximum compatibility with consumer reproduction systems
  • Allows main loudspeakers to play louder and with lower distortion

Four routing modes

  • Stereo 80 Hz bass management
  • External bass management
  • LFE up to 120 Hz
  • LFE full range

XLR electronically balanced analog inputs and outputs

  • Standard interfacing to professional equipment
  • Daisy chain output for subwoofer arrays

Wide range input gain and output level controls

  • Easier interfacing with signal sources

8-position phase control, continuous low cut control and parametric equalizer

  • More control in various acoustical environments
  • Easy to correct room modes

Universal switched-mode power supply (100 … 240 V)

  • One version works in any country and robust to poor quality mains supply

Ground lift

  • Reduced noise in electrically noisy environments and overcomes ground loops

Low heat dissipation amplifiers with large headroom and sophisticated protection circuitry

  • Improved transient response
  • Assured reliability and safety

Separate thermo limiter to protect the voice coil and power amplifier

  • Soft clip and excursion limiters
  • Increases system reliability
  • Allows extraction of the maximum performance from the system

Digital input and output

  • 192 kHz, 24-bit conversion
  • BNC connector: AES3 and S/P-DIF signals

Network connector using standard IP protocol and your existing network infrastructure

  • No additional special equipment needed
  • Loudspeaker system can be controlled via the Neumann.Control software

Control function

  • Use the back panel controls or the control set defined by the Neumann.Control software

Standby function

  • Reduces power consumption when product is not in use

More features

  • 8 x full parametric equalizer incl. Lo-/Hi-Shelf and Low-/High-Pass, controllable via Neumann.Control -> Accurate and flexible alignment of the subwoofer in the room and within systems
  • Delay -> Lip-sync (100 ms): To align audio and video signals up to 2.5 frames at 50 Hz or 3 frames at 60 Hz -> Time-of-flight (2 x 20.8 ms): To compensate for listening distance differences up to 7.2 m (12 ft 5in)
