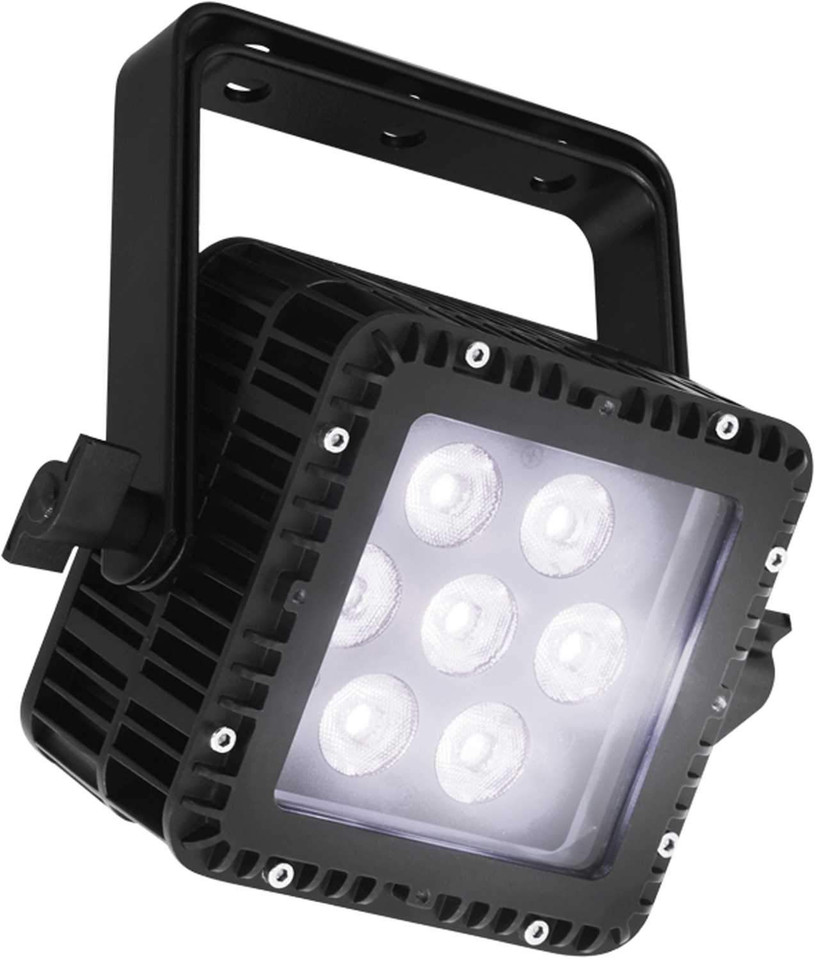

The Tuff Baby VW-42 is an ETL listed LED lighting fixture that's weathered for outdoors and can still be used indoors. This compact IP 64 rated unit packs a punch with 7 tri Amber, Cool White, and Warm White 6-watt LEDs. It has a 25 beam angle and also comes with a removable diffuser that creates a 30 diffused beam angle. The Tuff Baby VW-42 is equipped with 3 pin XLR Sockets for DMX input and output and a weather seal screw-type power connection. The fixture has a double mounting yoke for simple rigging or ground stacking. It is controlled via DMX 512, featuring 6 channels, and master-slave control options.

Features

• 7 TRI WATT LEDS: The ETL listed Tuff Baby VW42 is equipped with Tri Amber, Cool White, and Warm White 6-Watt LEDs.
• DMX Control: Easily control with DMX 512. Double mounting yoke for simple rigging or ground stacking, ideal for touring or permanent installations.
• IP Rated: Rated IP65 for both indoor and outdoor applications.

Specifications

Source

• LED Type: 6-Watt Tri Amber, Cool White, and Warm White LEDs
• LED Quantity: 7

Optical System

• LED Angle: 25
• Diffusion Beam Angle: 30
• Nanometre: 390

Control and Programming

• Display: Digital
• Protocol: DMX 512
• DMX Channels: 3 Modes Of Operation
• Mode 1: 3 Channels Amber, Warm White, Cool White
• Mode 2: 4 Channels Dimmer, Amber, Warm White, Cool White
• Mode 3: 6 Channels Dimmer, Amber, Warm White, Cool White, Cto, Strobe
• Control Options: Audio Trigger, Master Slave

Thermal and Ratings

• Max Ambient Temp: 40c (104f)
• Max Surface Temp: 60c (140f)
• Max Operating Temp: 45c (113f)
• IP Rating: IP65

Electrical and Connections

• Signal Connectors: Weather 3 Pin Xlr Connectors In And Out
• Power Connection: Weather Seal Screw Type
• DMX Connectors: 3 Pin Xlr Connectors In And Out
• Power Supply: 110V-240V 50/60Hz
• Power Consumption: 33 Watts | .48 Amps
• Ballast: Electronic Auto Switching

Rigging:

• Installation System: Double Mounting Yoke

Included Items:

• Removable Diffusion Filter 4100-Df
• 3 Par Jumper Cables 4100-Pc 1M, 5M, 11M
• Power Supply

Dimensions:

• Fixture Size: 8.80" X 6.26" X 8.80"
• Fixture Weight: 6.4 Ib (2.27 Kg)
• Packaged Size: 10.25" X 10.25" X 11.5"
• Packaged Weight: 7.4 Ib (2.72 Kg)
