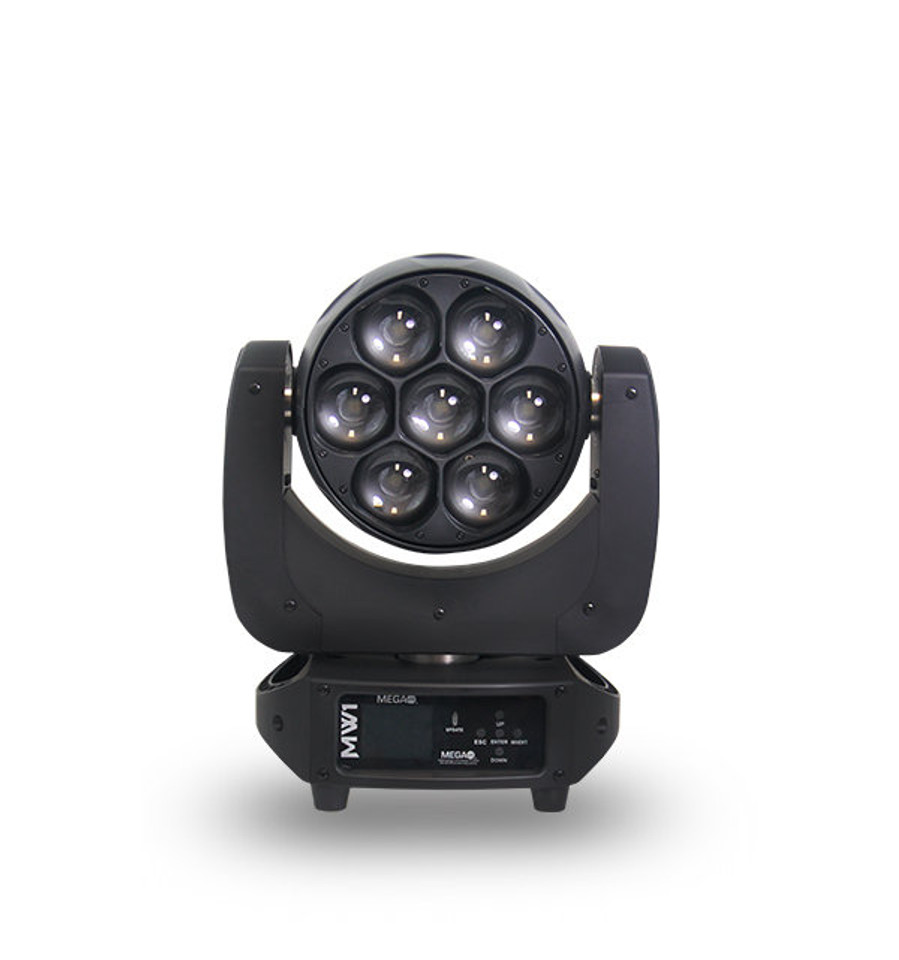

Mega-Lite 1215

Mega-Lite 1215

Mega-Lite 1215

Mega-Lite 1215

MW1, 7 X 40W LED, RGBW, 9-44 DEGREE ZOOM, PIXEL CONTROLLED, RDM, 3 AND 5 PIN XLR, 100-240V AC 50/60Hz

SKU: MEGA-1215
MSRP: $1,199.00

The MW1 is part of the diverse M-Series. It offers numerous features that can compete with larger fixtures. With a 9-44 zoom range, the MW1 can project sharp beams or create a soft-edge wash effect while maintaining an even output. The seven 40W RGBW OSRAM LEDs produce a bright, powerful projection and each can be individually controlled for easy pixel mapping to create colorful eye candy effects. The CTO channel creates truer whites and better tones for highlighting performers. The powerful stepper motors give the unit specific speed control of the 540 pan and 270 tilt. The MW1 can be used in numerous applications such as church, theater, mobile DJ and clubs to add alluring multi-colored effects.

Features

  • Individual pixel control allows users a wider range of effects.
  • Featuring a 9 beam angle to project sharp beams and a 44 wash angle to create a soft-edge wash effect.
  • Powerful stepper motors allow the unit to create fast and slow movements with a 540 pan and 270 tilt.
  • Equipped with a seven 40W RGBW OSRAM LEDs that can produce a bright, Powerful and even projection.


Specifications

Source

  • LED Type: 7 X 40W Osram LEDs

Optical System

  • Zoom: 9-44

Effects

  • Color Selection: RGBw
  • Pixel Control: Each LED - 7
  • Shutter: Electronic Shutter Strobe 18 Flash/Second

Control and Programming

  • Display: Lcd Display
  • Protocol: DMX 512
  • DMX Channels: 39 Channel Mode

Movement

  • Pan: 540 8/16 Bit 3 Phase Motors
  • Tilt: 270 8/16 Bit 3 Phase Motors
  • Pan Tilt Lock: Yes

Thermal and Ratings

  • Max Ambient Temp: 43.3c (110f)
  • Max Surface Temp: 60c (140f)
  • Max Operating Temp: 40c (104f)

Electrical and Connections

  • Power Connection: Power Con Type In And Out
  • DMX Connectors: 3 and 5 Pin XLR Connectors
  • Power Supply: Auto Switch 100V-240V 50/60Hz
  • Power Consumption: 376 Watts | 3.24 Amps
  • Ballast: Electronic

Rigging:

  • Installation System: 2 Quick Release Bi Directional Clamp Mounts

Dimensions:

  • Fixture Size: 12.75" X 9" X 15.5"
  • Fixture Weight: 19 Ib (8.62 Kg)
  • Packaged Size: 14.5" X 12" X 17.5"
  • Packaged Weight: 21 Ib (9.53 Kg)
