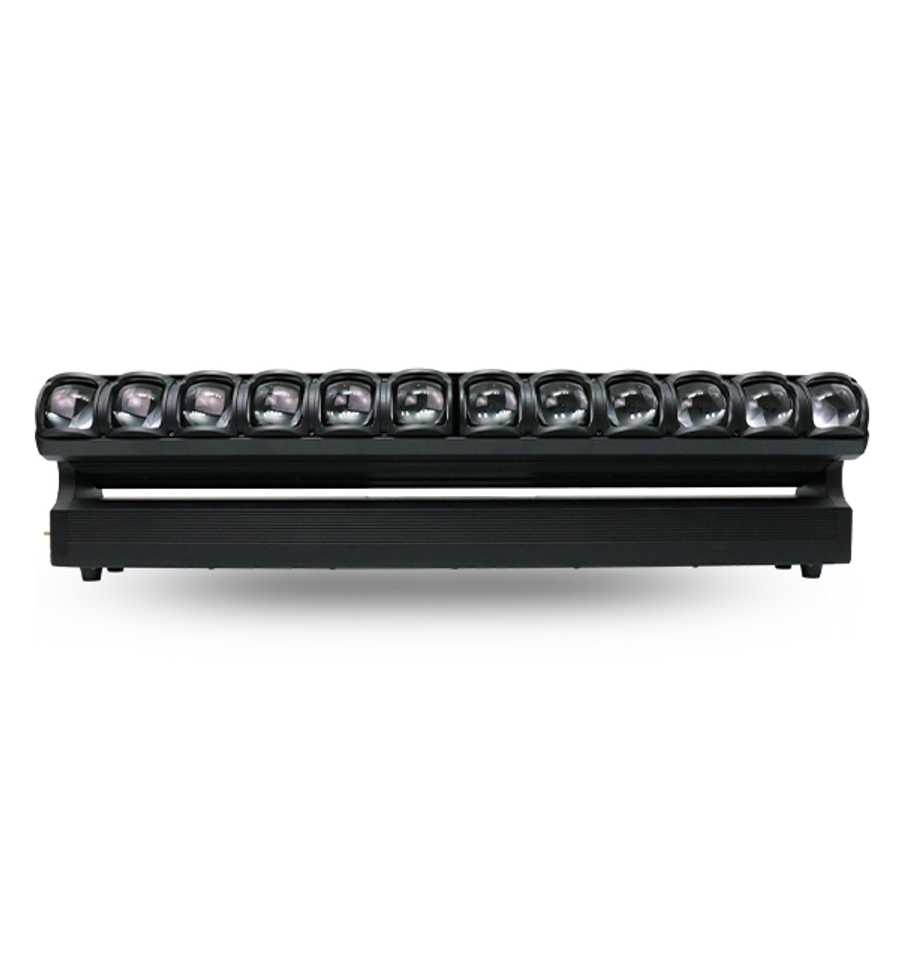

Create an unforgettable show with the Linebot Q480. Powered by 12
40-Watt RGBW LEDs, this bot can be used to create desired effects for a
variety of applications. Featuring a broad spectrum of colors, it can
produce pastel to saturated color combinations. Combined with the 12
individual pixel mapping control, the Linebot Q480 was designed to
spread creativity in linear lighting.
The high output LEDs can be used to produce aerial effects or highlight performers and objects on or off stage. With a 3º to 54º zoom range, the unit offers two zoom sections for greater control. It gives the incredible ability to create piercing narrow angles that can form a harmonious curtain of light effect or wide angle wash. The motorized 210º tilt is further enhanced with the 16 bit movement, for a seamless tilt rotation.
It can be grounded or mounted using the included dual quick-release clamps. The removable side alignment guides allow multiple units to be daisy chained efficiently. Take your show to the next level with the Linebot Q480.
Features:
- PIXEL CONTROL - The wide range of color mixing and beam effects can be enhanced with the individual pixel control of each RGBW LED.
- TILT & ZOOM - With a 3º to 54º zoom range, the unit offers two zoom sections for greater control. The motorized 210º tilt is further enhanced with the 16 bit movement, for a seamless tilt rotation.
- VERY BRIGHT - Equipped with 12 powerful 40-Watt RGBW LEDs to produce bright, colorful aerial effects or highlight performers and objects on or off stage.
Specifications:
- TILT ANGLE: 210° 8/16 bit
- DMX CONNECTORS: Panel Mounted 5-Pin XLR Connectors In/Out
- POWER CONNECTIONS: Panel Mounted Seetronic Type Power In/Out Connection (Nema 5-15 to Seetronic Power Female Cable Included)
- THERMAL: Maximum Ambient Temperature: 104°F | Maximum Surface Temperature: 140°F
- DISPLAY: Digital
- FASTENING SYSTEM: 2 Quick Release Clamp Mount
- LENS ANGLE: 3° - 54°
- ZOOM CONTROL: 2 Zoom Sections | Zoom 1: 1-6 / Zoom 2: 7-12
- GUIDES: Removable Side Alignment Guides
- LED TYPE: 40Watt RGBW
- LED QTY: 12
- POWER INPUT: Universal 100 - 240V 50/60 Hz
- BALLAST: Electronic
- POWER CONSUMPTION: Watts: 590W | Amps: 5.04A
- PIXEL CONTROL: 12 Pixel Control
- PROTOCOL: DMX 512
- DMX CHANNELS: 2 Modes of Operation (See Manual)
- OPERATING MODE: Stand Alone 255 Step Dimmer Setting via Display | Auto Preprogram via Display
