Overview

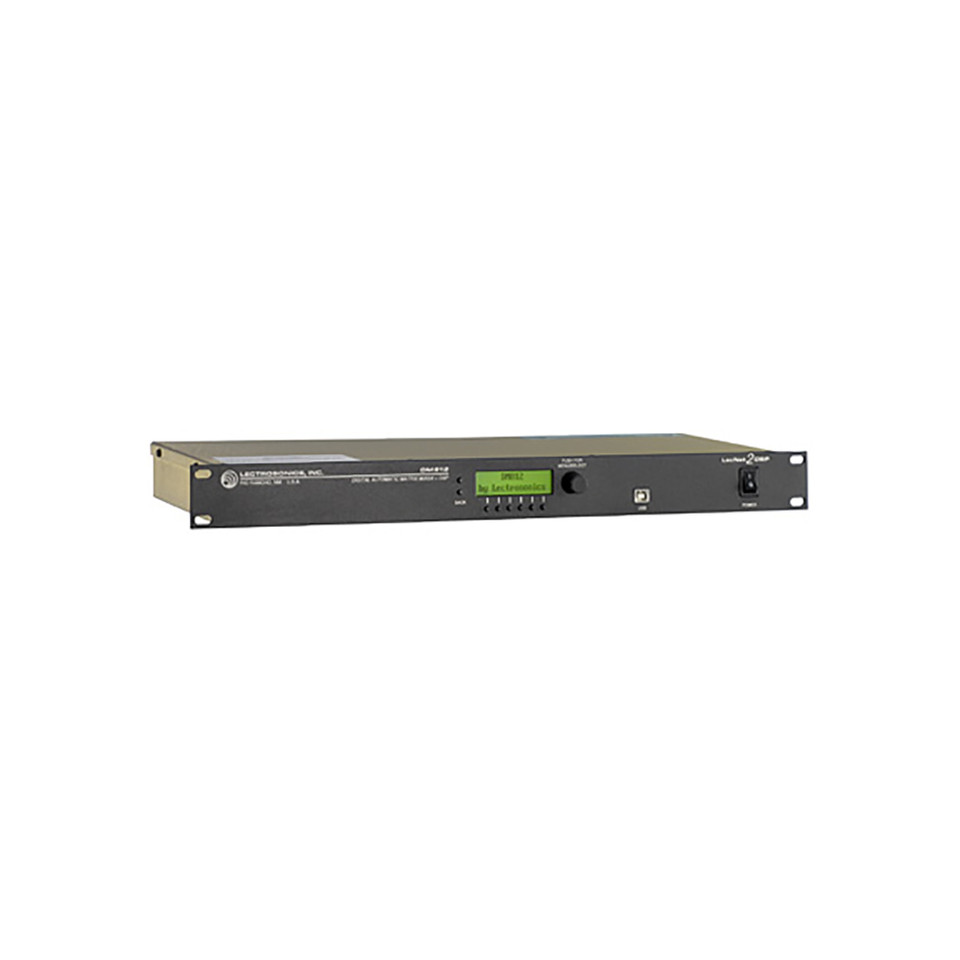

Digital Matrix Audio Processor, 8 In, 12 Out
The DM812 is a powerful digital audio processing, mixing and routing system. The primary applications are sound reinforcement and conferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The design represents a milestone in DSP technology in its basic architecture and in its processing speed and efficiency.
The basic architecture consists of 8 mic/line inputs and 12 outputs with a full DSP-based crosspoint matrix that allows every input to be routed to any or all outputs. Following the A-D conversion at each input, the signal passes through multiple DSP filters, ADFE (automatic digital feedback eliminator), a compressor and a digital delay. In the matrix, gain is adjustable from -69 to +20 dB in 1 dB steps at each crosspoint. Each of the 12 outputs provides a digital delay, multiple DSP filters and a compressor/limiter.
Features
- 8 mic/line inputs, 12 line outputs (4 outputs are mic/line switchable)
- 8 x 12 digital matrix mixing; gain is adjustable from
-69 to +20 dB - Proportional gain auto mixing algorithm with AutoSkew™ - US Patent 5,414,776 and 5,402,500
- Auto mixing operates at the output of the matrix - each input channel can participate differently in each output mix
- Each output has its own NOM mixing bus
- 6 filter stages plus compressor, ADFE and delay on each input
- 9 filter stages plus compressor, limiter and delay on each output
- 128 macros available for storing up to 64 commands per macro
- USB and RS-232 interfaces for setup and control
- Digital I/O ports for "daisy chaining" and to connect other LecNet 2 devices
- AMX© and CRESTRON™ compatible
- Simultaneous LecNet2 and Third-Party control
- Patented proportional gain auto mixing*
- Optimized Architecture TM for unlimited DSP
resources - no “Gas Gauge”
- 6 filter stages plus compressor, ADFE
and delay on each input
- 9 filter stages plus compressor, limiter
and delay on each output
- 128 global macros available with up to
64 commands per macro
- AMX© and CRESTRON® compatible
- Simultaneous LecNet2 and Third-Party control
Specifications
|
Audio inputs
|
|
|
Gain:
|
-10 dB to +60 dB, programmable in 1 dB steps |
|
Input impedance:
|
2.5 k Ohm |
|
Phantom voltage:
|
15 V, programmable |
|
Connector:
|
5-pin Phoenix |
|
Audio outputs:
|
|
|
Nominal level:
|
Floating balanced, either side can be grounded 0 dBu all outputs, -40 dBu selectable on outputs 9 through 12 |
|
Output impedance:
|
|
|
Line Only:
|
• 50 Ohms differential line level only outputs |
|
Mic/Line
|
• 600 Ohm differential programmable outputs at line level |
| • 130 Ohm differential programmable outputs at microphone level | |
|
Input Dynamic Range:
|
96 dB at -50 dBu input level 102 dB at all other levels (unweighted 20 - 20 kHz) |
|
Output Dynamic Range:
|
105 dB (unweighted 20 - 20 kHz) |
|
Audio Performance:
|
|
|
IMD + noise:
|
0.1% max. |
| 0.02% nominal input level | |
|
THD + noise:
|
0.1% (worst case) |
| 0.02% nominal input level | |
|
EIN:
|
-126 dBu |
|
Connectors:
|
|
|
Audio I/O:
|
5-pin Phoenix |
|
Expansion:
|
RJ45 |
|
Logic I/O:
|
DB25 |
|
Serial:
|
Standard USB and mini TRS |
|
Proprietary network
|
|
|
Physical level:
|
LVDS (Low Voltage DIfferential Signal) high speed |
|
Connector:
|
Four RJ-45 |
|
Cable quality:
|
Shielded CAT-5 |
|
Transmission speed:
|
50 Mbits/s |
|
Programmable control inputs
|
|
|
Number of inputs:
|
22 |
|
Analog voltage range:
|
0-5V |
|
Logic input:
|
TTL, LVTTL, CMOS, LVCMOS |
|
Programmable control outputs
|
|
|
Number of logic outputs:
|
16 |
|
Logic control:
|
active low |
|
Max sink current:
|
100 mA |
|
Max supply voltage:
|
40 V |
|
Supply voltage for control I/O:
|
5 V |
|
Max current:
|
750 mA |
|
Power requirements:
|
100-240 VAC, 47-63 Hz |
|
Power consumption:
|
30 Watts |
|
Fan Cooling:
|
Continuous; DM1612F and DM1624F only |
|
Dimensions:
|
(1.75 in. high) (7.5 in. deep) (19 in. wide) |
|
Weight:
|
(3lb 12oz) (1.7012 kg ) |
