Overview

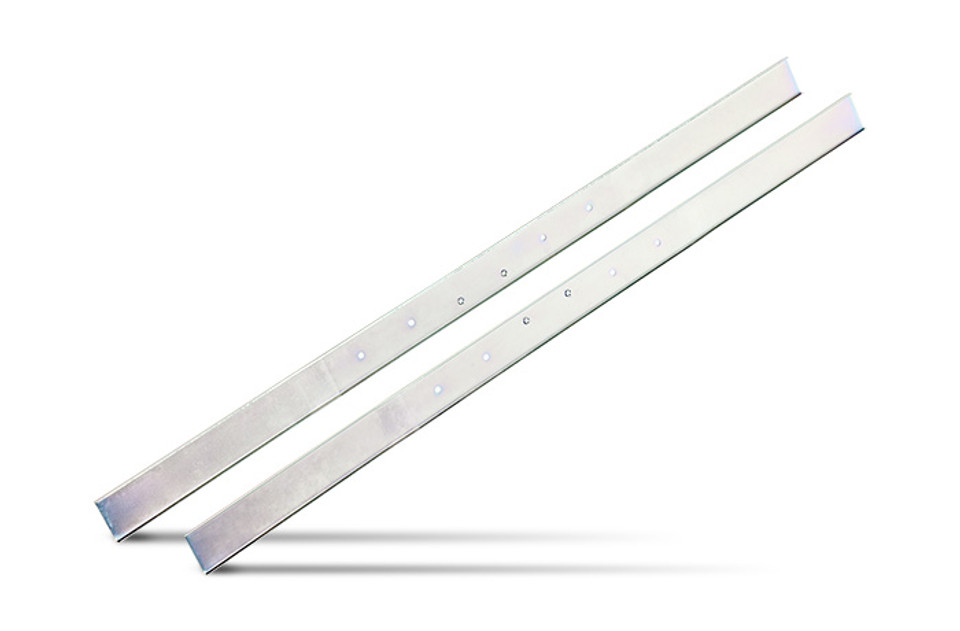

The CSS-TR4/8x12 Tile Rails from JBL are designed to support the CSS-BB4x6 and CSS-BB8x6 backcans when installing speakers in tiled ceilings.
Specs
| Compatibility | CSS-BB4 and CSS-BB8 backcans | |
| Dimensions | 600 x 36 x 8 mm (23.6 x 1.4 x 0.3 in) |
|
| Bolt Mount Circle | N/A | |
| Air Space | N/A | |
| Material | Punched/formed steel, zinc-plated | |
| Conduit Knockouts | N/A | |
| Attachment Points | 2 points screw onto backcan, each rail. | |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849. | |
| Net Weight (ea) | 0.18 kg (0.4 lb) | |
| Shipping Weight (ea) | 0.21 kg (0.5 lb) | |
| Included Accessories | M4 x 8 mm machine screws for attaching rails |
