Overview

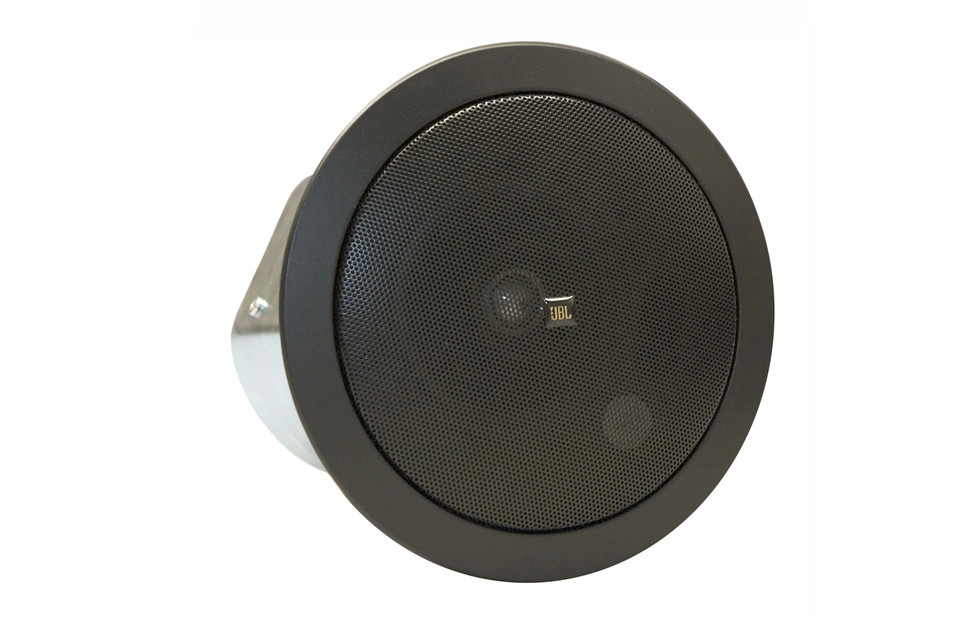

The Control 24CT Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.
Features
- Extremely wide 150° coverage.
- Smooth frequency response.
- Includes 9 W multitap transformer for
- Shallow 4 in (100 mm) depth.
- Packaged with grille, backcan and tile rails for fast
Specifications
| Frequency Range | 85 Hz - 25 kHz | |
| Power Capacity | 30 W Continuous Program Power; 15 W Continuous Pink Noise | |
| Transformer Taps | 70 V: 9 W, 4 W, 2 W, 1 W & 0.5 W taps 100 V: 9 W, 4 W, 2 W, 1 W taps |
|
| Crossover Frequency | 3.5 kHz | |
| Rated Maximum SPL | 94 dB @ 1 m (3.3 ft), 9 W tap |
