Sensor IQ 120/240 V 1-phase (bi-phase), 12 Pole breaker sub-panel with no breakers

SKU: ETC-7131A1125

Overview

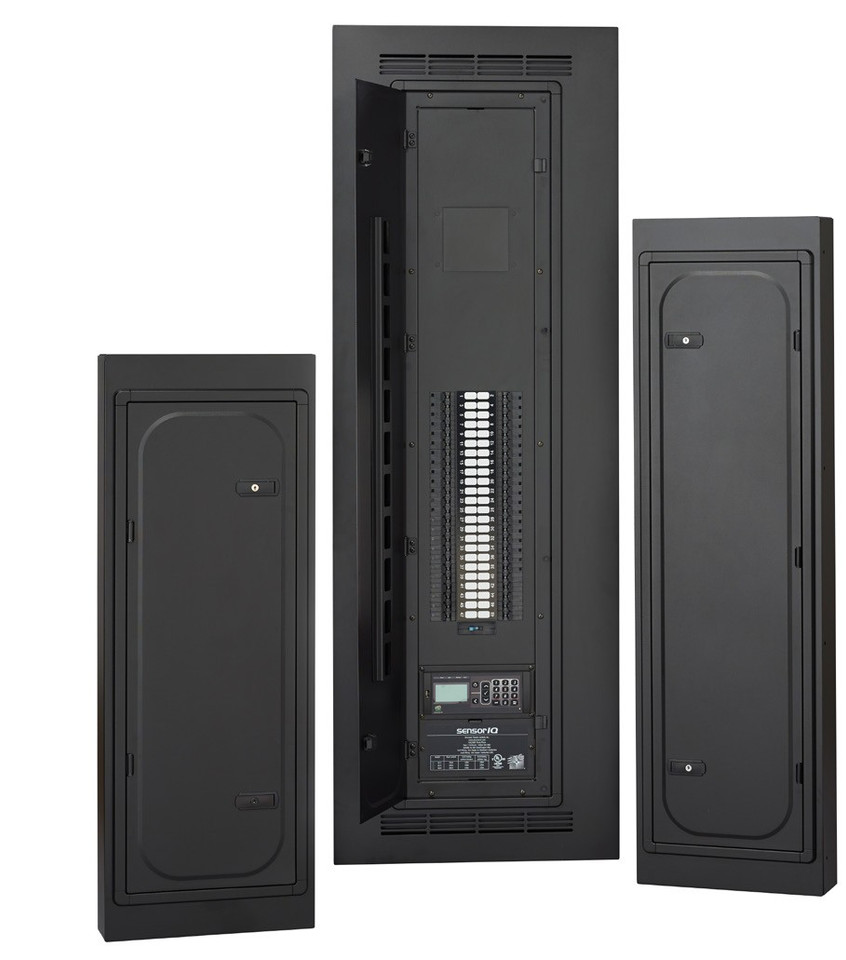

ETC’s Sensor IQ Intelligent Breaker System provides mains-fed power distribution for up to 48 branch circuits in the industry’s most compact footprint. Sensor IQ breakers combine high-inrush rated overcurrent protection, switched power control, and power usage/breaker status reporting in a single device. With built-in station and sensor support via contact input, DMX and Ethernet connectivity, and optional 0–10 V dimming or DALI output, Sensor IQ panels easily integrate into a broad range of systems and applications.

APPLICATIONS

  • Theaters
  • Schools
  • Houses of worship
  • Conference centers
  • Studios
  • Arenas and stadiums

FEATURES

  • Mains Feed: Three-phase 120/208 V four-wire plus ground or single (bi) phase 120/240 V three-wire plus ground
  • 12-, 24- or 48-position breaker subpanel
  • Breakers
    • Hydraulic magnetic breaker with high inrush trip curve
    • 22 kA SCCR (up to 65 kA series rated with main breaker)
    • Freely mix one-, two- and three-pole breakers up to 30 A
    • Integrated air-gap relay switching
    • Integrated on/off/tripped and connected load feedback
    • No power required for handle operation at the breaker
    • 20 A single-pole intellingent breakers are suitable for plug load control
  • DMX and Ethernet (sACN) control of preset and sequence playback
  • Local user interface provides:
    • Panel configuration
    • Preset and sequence programming and playback
    • Individual channel control
  • Built-in Ethernet port
  • Available 0–10 V, contact input, and DALI control cards
  • UL924 Listed emergency control bypass with load shedding

Specifications

REGULATORY AND COMPLIANCE

  • Breakers Listed to UL 489
  • Enclosures listed to UL 67, UL 508, UL 924
  • Complies with ANSI DMX512-A standard
  • Complies with ANSI E1.31 streaming ACN standard

USER INTERFACE

  • Graphical display
  • Button interface
    • 0–9 number entry
    • Up, down and back-arrow navigation with enter
    • Test shortcut for local activation of preset, sequence and
  • set level overrides
  • USB interface for uploads of setup and software updates

BREAKER

  • Hydraulic magnetic breaker maintains trip curve through entire thermal range, reducing nuisance tripping Bus connection type: Stab on
  • One, two or three poles
  • UL 489 Listed
  • 15, 20 or 30 A
  • 50/60 Hz frequency
  • Inrush-pulse tolerance: 25 times rated current for half-cycle
  • Integrated hall-effect sensors detect contact positions
  • Integrated solenoid for remote operation
  • Trips on overload even if handle is forcibly held in the “on” position
  • Load lugs accept 14-6 AWG load wiring
  • Multi-conductor rated output terminal
  • Integral mechanically held air gap relay
  • Integral current sensing
  • Integral position and trip sensing
  • Supports manual control of relay state using breaker handle without power
  • Control and status provided by contact pads directly at bottom of the breaker case. No external wires or connections required for control or feedback
  • Remote Feedback for breaker state, breaker type, current draw and phase voltage
  • Visible state indication:

MECHANICAL

  • Enclosure constructed of 16-gauge steel finished in black, fine-textured, scratch-resistant powder coat paint
  • Removable outer panel includes integral locking door to limit access to electronics, breakers and local relay overrides
  • Full front access with no side clearance required
  • Removable covers for access to Class 1 and Class 2 wiring
  • Complies with California building code - seismic zone four

ELECTRICAL

  • Mains feed power input to support 120/208 V three-phase four-wire or 120/240 V bi-phase three-wire plus ground•
  • Max current input: 100 A at 12 circuits, 200 A at 24 circuits, and 400 A at 48 circuits
  • Quiescent draw: <10 W with relays at steady state
  • Optional isolation between chassis and equipment grounding
  • Short-circuit current rating: 22,000 A or 65,000 A symmetrical (see chart a right)
  • Overloads occurs at 50 operations of 600% of rated current
  • Integrated current transformer
  • Current measurement range of 1–30 A. The maximum crest factor of primary current is 2.5
  • Feeder entry supported at top or top side
    • Bottom or bottom side entry supported by rotating enclosure during installation
  • Load wire entry supported on top, sides or bottom

ENVIRONMENTAL

  • Thermal: 0°C to 40° C (32°F to 104° F) operating temperature
    • 24 A circuit (30 A breaker) - 1.4 W, 4.8 BTU/hr
    • 16 A circuit (20 A breaker) - 1 W, 3.4 BTU/hr
  • Humidity; 5%–95%, non-condensing
  • Complies with ESD immunity to IEC standard 1000-4-2

CONTROL ELECTRONICS

  • Input: 120–277 V (+/-15%), 50/60 Hz, <16 A
  • Multi-tap transformer terminals accept up to 12 AWG wire
  • Control wiring terminations:
    • Control terminals accept maximum of 12 AWG wire
    • Control wiring exiting the panel are Class 2
    • All control terminations utilize removable connectors

FUNCTIONAL

  • System-Wide control
    • DMX or sACN input
      • Per-circuit patching
      • Per-circuit threshold
      • 0–200 prioritization
    • Configurable data loss behavior:
      • Play preset; Hold last look; Wait and fade
    • UL 924 emergency lighting with load shedding
      • Load shedding requires a UPS Control Backup Wiring Kit (7131K1817) and Uninterruptable Power Supply (UPS) by others
      • UPS to supply 800 W–2400 W AC power to control processor
    • Application/Space segmented Control
      • Space segmenting: up to 16 spaces per panel
      • Power Sequencing: one 16-step sequence per space
      • -  Presets: up to 64 per space configurable via local UI
      • - Zone control: up to 16 zones per space
    • Monitoring Per Circuit:
      • Breaker-trip notification
      • Relay state
      • Current draw, phase voltage, and energy usage
    • Monitoring Per Space:
      • Active sequences, presets, and clock events
      • Zone levels

ACCESSORIES

  • 0-10 Dimming Option
    • 24 outputs of 0–10 V sink dimming control rated for 100 mA per output
  • Contact Input Option
  • 24 dry contact inputs which can be used to:
    • trigger presets and sequences, which will play at the priority configured for architectural sources, or;
    • directly control one or more outputs. The priority of these outputs is configurable. If nothing is configured, the last action takes precedence
  • DALI Control Option
    • 24 control loops of broadcast DALI control
    • Each loop supports up to 64 ballasts
    • External DALI power supply required
  • RideThru Option
    • Short-term power backup of control electronics
    • Automatically engages when power is lost
    • Recharges during normal power operation
  • UPS Backup Kit for Load Shedding
    • Allows Power Control Processor to be powered via external
    • UPS (by others)
    • Required for load shedding applications
    • UPS provides power to drive relays off when normal power is lost
    • UPS for each Sensor IQ panel must by UL 924 Listed and
    • rated for a minimum of 200 W peak load
  • Branch Circuit Fuse Kit
    • Aids engineers in selective coordination* of
    • emergency circuits
