Overview

The NETRON RDM 10 is a first of its kind hybrid splitter. Dual DMX input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.

Key Features

• 10 assignable DMX outputs
• Integrated 2 Universe Artnet/sACN node
• Configurable DMX refresh rate
• Dual DMX Inputs for backup and signal loss options
• Remote configuration via internal webpage
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Contact closures for cue or preset recall
• Powder-coated aluminum rackmount housing
• Unlocks ONYX NOVA 4 Universe License

Specifications

• Mounting: Rackmount

Connections

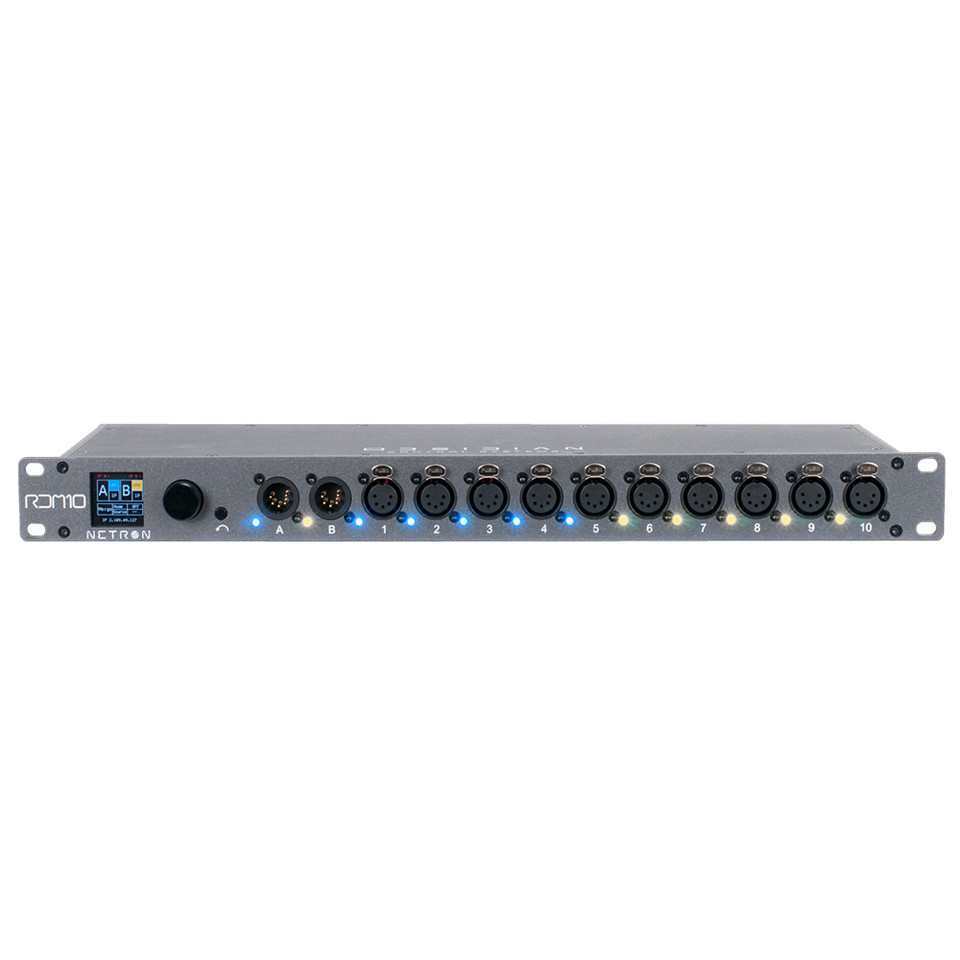

Front

• (2) 5pin DMX Input
• (10) 5pin Opto-Isolated DMX Outputs
• Full color OLED display
• Encoder w. Push to Select / Exit Button

Back

• (2) 5pin DMX Input (parallel with front)
• (2) 5pin DMX Through
• (2) Locking RJ45 Ethernet Network In
• (10) Contact Closures (Terminal Block)
• Locking Power In/Thru

General

Physical

• Length: 482.5 mm (19 in.)
• Width: 146 mm (5.7 in.)
• Height: 44 mm (1.7 in.)
• Weight: 1.82 kg (4 lbs)

Electrical

• 100-240 V nominal, 50/60 Hz
• POE 802.3af

Approvals / Ratings

• cETLus / CE / IP20
