Overview

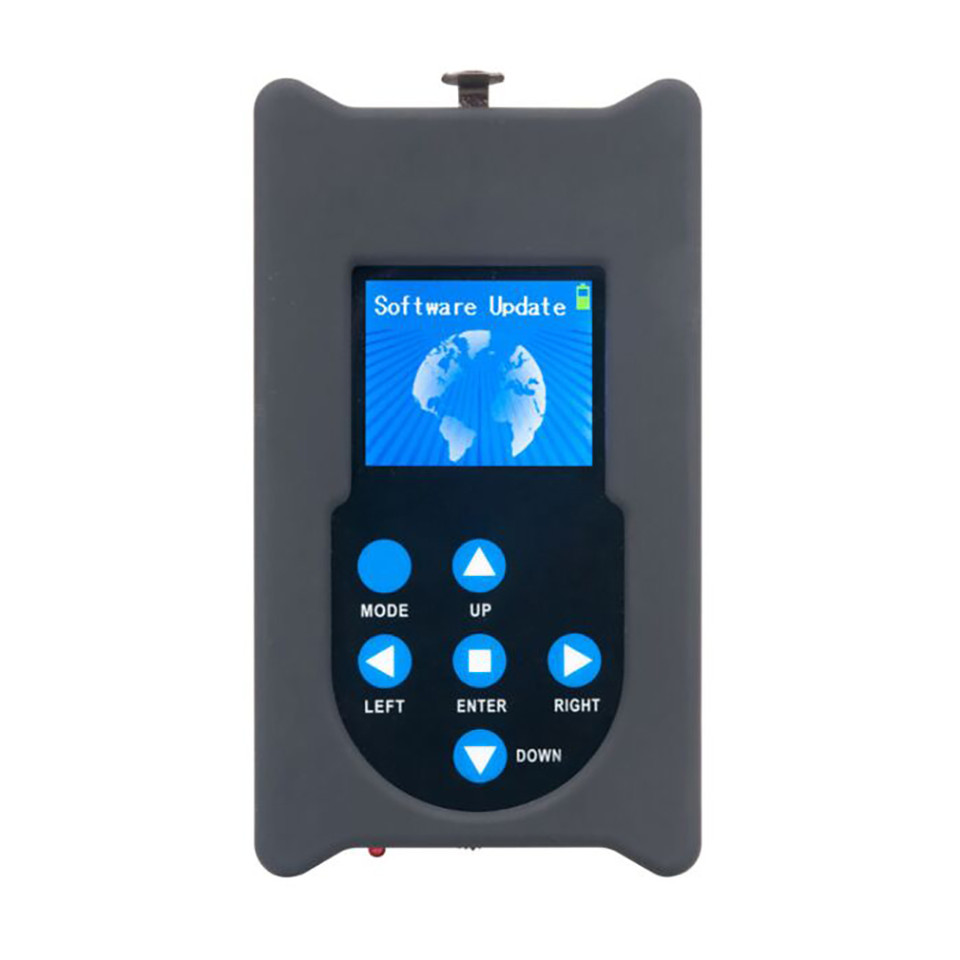

The C-LOADER™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader.

C-LOADER features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to MICRO SD card adapter, and blank MICRO SD card.

Features

Contact Elation Service for available fixture software updates.

Specifications

• CONTROL / CONNECTIONS
• 6 Button Touch Control Panel
• LCD Menu Display
• 3pin DMX Out
• MICRO SD Card Slot
• Mini USB Input

SIZE / WEIGHT

• Length: 4.89” (124.15mm)
• Width: 2.73” (69.46mm)
• Vertical Height: 1.48” (37.5mm)
• Weight: 0.4 lbs. (0.2 kg)

ELECTRICAL

• USB Powered (Internal Battery)

INCLUDED ITEMS

• USB Cable
• MICRO SD Card
• USB to MICRO SD Card Adapter
