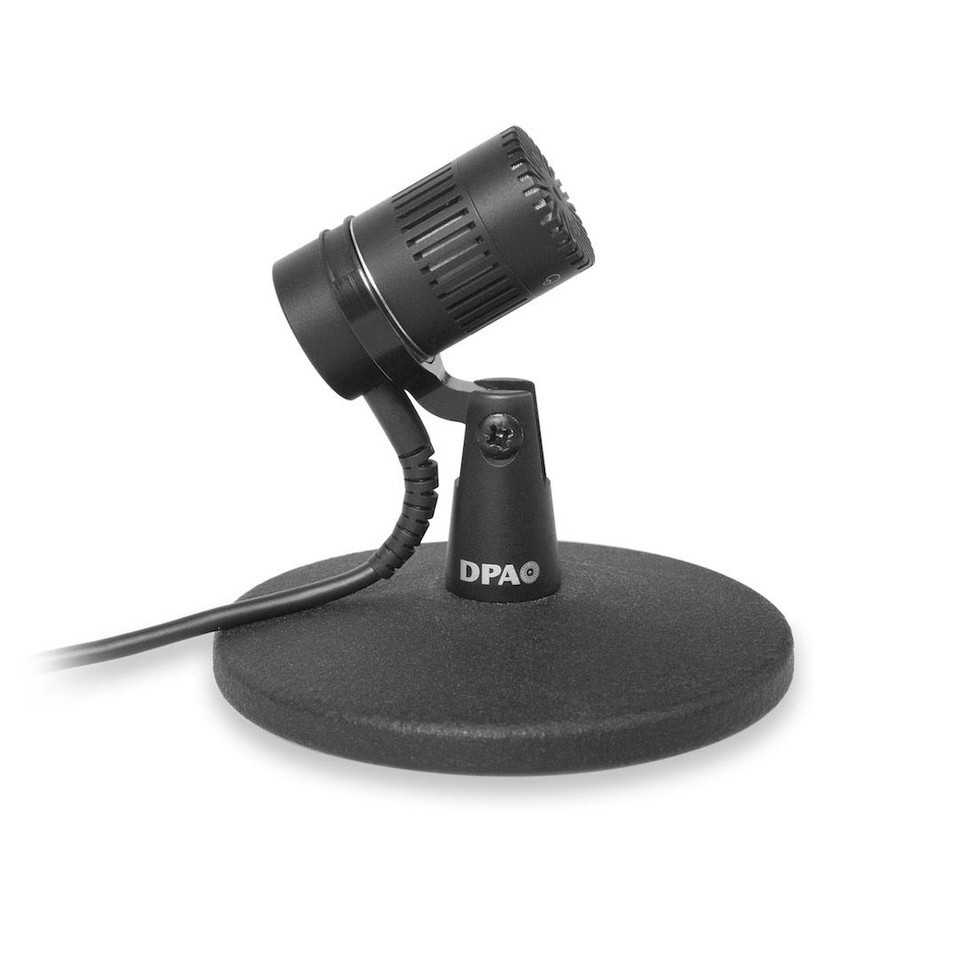

4018 Supercardioid Tabletop Mic, 5 cm (2 in), Black, XLR

SKU: DPA-4018-DE-D-B01-005
MSRP: $2,140.00
MAP: $2,140.00

Overview

Elegant and exclusive design

This mic can be used for dialogue, interview and table or spot-recording use. It offers superb expandability through modular accessories and is ideal for unobtrusive or distant miking such as desktop use.

  • Low noise and high sensitivity
  • Highly directional for high isolation
  • Most controlled supercardioid shape
  • Uniform, frequency independent directionality
  • Unobtrusive desktop mic
  • Modular flexibility

With a length of only 5 cm (2 in), the 4018 Supercardioid Microphone has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Combine it with the preamp of your choice

Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-GR/GS Preamp with Modular Active MicroDot Cable for Pencil Microphone, 3 m (9.8 ft) (MMP-GR, MMPMMP-G Modular Active Cable MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter. The MMP-G, together with the GSM4000 Gooseneck Shock Mount, can be used for anything from very lightweight booming applications to very high-end instrument miking using the 4099 series of instrument mounting options.

Specifications

  • Directional Pattern: Supercardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Dynamic range: Typ. 121 dB
  • Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 18 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz: 12 mV/Pa; -38.4 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 23 dB
  • Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
  • Max. SPL, THD 10%: 142 dB SPL peak
  • Minimum load impedance: 2 kΩ
  • Rated output impedance: 100 Ω
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing
  • Common mode rejection ratio (CMRR): > 40 dB
  • Power supply (for full performance): P48 (Phantom Power)
  • Current consumption: 3.5 mA
  • Maximum output voltage, RMS: 2.2 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Matching tolerance (frequency response and sensitivity): ±1 dB
  • Phase deviation for kit: < 10°
  • Weight: 109 g (3.8 oz)
  • Microphone diameter: 19 mm (0.75 in)
  • Capsule diameter: 19 mm (0.75 in)
  • Microphone length: 35 mm (1.38 in)
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
