Overview

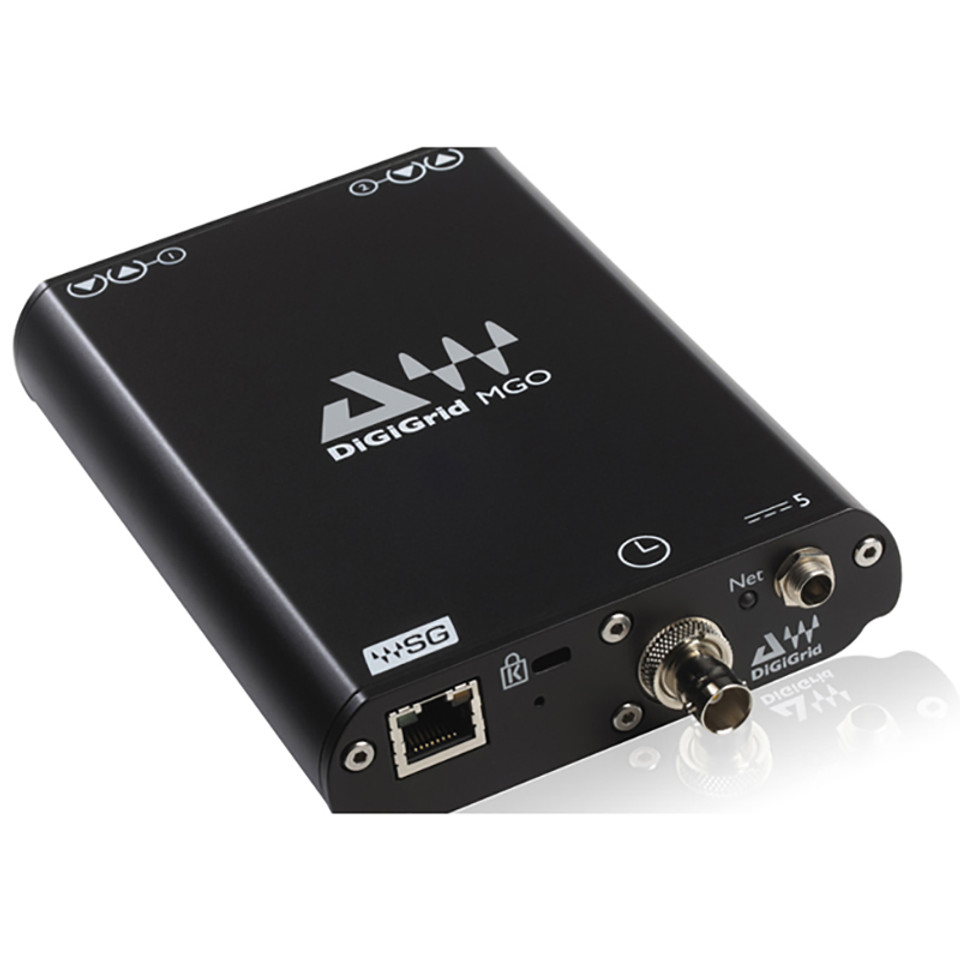

DiGiGrid MGO Optical MADI interface allows you to connect any MADI-enabled device to the SoundGrid network. Record, process and playback up to 128 channels with Waves and third-party SoundGrid-compatible plugins in high-fidelity at a super low-latency of 0.8 milliseconds! Moreover, the DiGiGrid MGO can record to two computers simultaneously – one for virtual soundcheck, the other for backup.
Features
- MADI-to-SoundGrid interface
- Plug any MADI-enabled device into SoundGrid
- Record, process and playback up to 128 channels
- Record to two computers simultaneously
- Compatible with SuperRack, MultiRack, eMotion LV1, SoundGrid Studio
Specifications
- MADI Optical I/O (SFP Optics cartridges)
- Supported sample rates: 44.1, 48, 88.2, 96 kHz
- 112/128 channel I/O @ 48kHz
- 56/64 channel I/O @ 96kHz
- Support for 64chn and 56chn modes
- Support for double wire (48k frame) and single wire (96k frame) @ 96kHz
- Clock Synchronisation via (in fallback order): Word Clock input, MADI (port A), SoundGrid (SoE), Internal 1 SoundGrid port (RJ45)
- Reset switch
Package Contents
- DiGiGrid MGO unit
- Universal power adaptor with interchangeable plugs (UK, US, EU, AU) (100-240V)
- Ethernet cable: Cat 5e (2 meters)
- Registration card
Dimensions
- Width: 10.6 cm / 4.17 inches
- Height: 14.82 cm / 5.83 inches
- Depth: 2.9 cm / 1.14 inches
- Device Weight: 0.4 kg / 0.88 lbs
