Control room I/O 2 mic inputs, 8 line inputs, 8 line outputs and 2 headphone outputs, 2 Network ports, plus 16 AES digital outs ADAT for additional connectivity options.

SKU: WVS-IOC
MSRP: $3,799.00

Overview

Perfect for the control room, the DiGiGrid IOC audio interface offers a range of connectivity options, including 2 mic/line inputs with broadcast-grade preamps, 8 line inputs/outputs, and 16 AES and ADAT inputs/outputs, plus two powerful headphone outputs. With the IOC and a dedicated SoundGrid DSP server on your network, you will be able to run up to hundreds of SoundGrid-compatible Waves and third-party plugins, all fully integrated within your DAW of choice. Just plug the IOC into your SoundGrid network using a single Ethernet cable, and you will enter a new world of real-time tracking, mixing and monitoring, with extremely low latency of only 0.8 milliseconds.

Features

  • ASIO- and Core Audio-compliant audio I/O for Native DAWs
  • 2 mic/line inputs with broadcast-grade preamps and 8 line inputs
  • 8 line outputs and 2 headphone outputs
  • 16 AES ins/outs, ADAT ins/outs
  • Connects via a single Ethernet cable (Cat 5e/Cat 6)

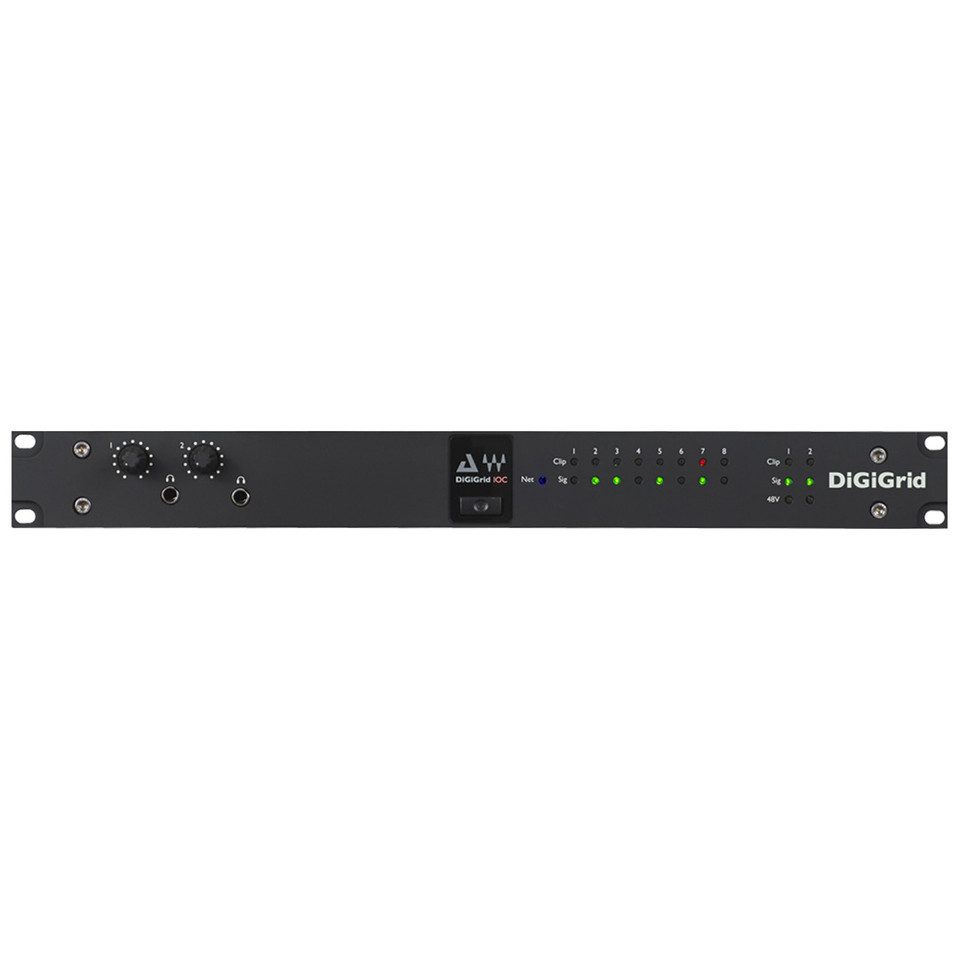

  • Quick-view front panel metering
  • High-definition 192 kHz ADC conversion
  • Compatible with SuperRack, MultiRack, eMotion LV1, SoundGrid Studio

Specifications

General

  • 8x line inputs (25-pin DB25)
  • 8x line outputs (25-pin DB25)
  • 16x AES/EBU I/O (25-pin DB25)
  • 1x ADAT I/O (8 channels @ 48kHz). (4 channels @ 96 kHz and 2 channels @ 192 kHz will be supported in the future)
  • 2x Mic inputs (XLR/TRS combo)
  • 2x SoundGrid RJ45 Ethernet ports
  • 1x Word clock I/O
  • 1x AC input
  • 2x headphone outputs with analog level knobs
  • 1U rack-mounted
  • Supported sample rates: 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future)
  • Clock Synchronization via Word Clock input, AES/EBU, SoundGrid (SoE), Internal
  • Reset switch
  • Multiple broadcast level format settings (jumpers on all analog I/Os)

Inputs

  • Mic input impedance: 2K5 Ohms
  • Phantom power: 48V
  • Line input impedance: 8K0 Ohms
  • Mic gain range:0 dB to +52.5 dB in 7.5-dB steps. Fine control provides an additional 0dB to 7dB in 0.5-dB steps
  • Mic maximum input level: +26dB
  • Line maximum input level: +36dB
  • Mic equivalent input noise: >-126dB (150 Ohm source, Gain +59.5dB)
  • Frequency response: +/-0.5dB 20Hz to 20kHz
  • Channel separation: Better than 90dB (40Hz to 15kHz)

Outputs

  • Maximum line output level: +22dBu
  • Residual line output noise:<90dB (20Hz to 20kHz)
  • Frequency Response: +/-0.5dB (20Hz to 20kHz)
  • Line output impedance: 50 Ohms
  • Channel separation: Better than 90dB (40Hz to 15kHz)
  • Harmonic Distortion: Typically <0.01% @ unity gain, -10dB input @ 1kHz.

Dimensions

  • Width: 48.26 cm / 19 inches
  • Height: 4.36 cm / 1U
  • Depth: 35.6 cm / 14.01 inches
  • Device Weight: 4.5 kg / 9.92 lbs
