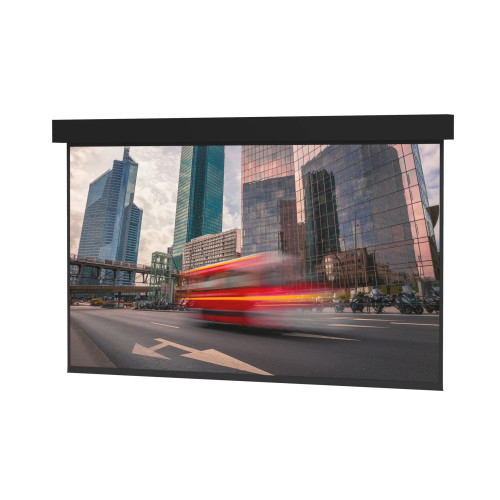

The Dalite Professional Electrol is ideal for large screen applications in stage or auditorium settings. It's a heavy-duty screen for exposed or recessed installation without doors.

It features a patented in-the-roller motor mounting system for quiet operation. Standard with a Decora style three position wall switch. Matte White fabric up to and including 16' will be seamless.

Standard with a Decora style three position wall switch

Matte White fabric up to and including 16' will be seamless

Type
Style	Professional Electrol
Front/Rear Projection	Front
Mount	Ceiling recessed
Finish	Matte White; flame retardant and mildew resistant fiberglass
Tension Control	Non-tensioned
Keystone Control	Not Applicable

Dimensions
Overall Size	Not Specified by Manufacturer
Image Size	119 x 212" (302 x 536cm)
Diagonal	243" (617cm)
Format	HDTV
Aspect Ratio	16:9
Masking Options	Black masking borders standard; Optional black or white "Extra Drop" to lower picture area more than normal. Maximum total drop 22' including picture area, except for 24' wide, where maximum drop is 18'.

Controls
Voltage	120 volt A.C. (60Hz). Screen; 2.4 amp motor
Integrated Control	3 position control switch with cover plate, Preset but adjustable limit switches to automatically stop screen fabric in the "up" and "down" positions
Control Options	Single Motor Low Voltage Control System 3 - Button Radio Frequency Wireless Remote Control for LVC System Infrared Wireless Remote Control for LVC System Locking Switch Coverplate for 120V or 3 Button LVC Switch Key Operated Switch for 120V only (note: cannot be used with low voltage system) 220 Volt (50 Hz) Motor Video Projector Interface, external SCB-100 - RS-232 Serial Control Board NET-100 Ethernet-Serial Adapter (must be used with SCB-100)

Casing
Color	Black primer coat - ready to accept final finish by others
Material	Wood
Length	226" (574cm)

General
Shipping Weight	429 lbs (194.6kg)

Packaging Info
Package Weight	429.0 lb
Box Dimensions (LxWxH)	231.0 x 12.25 x 10.25"
