Overview

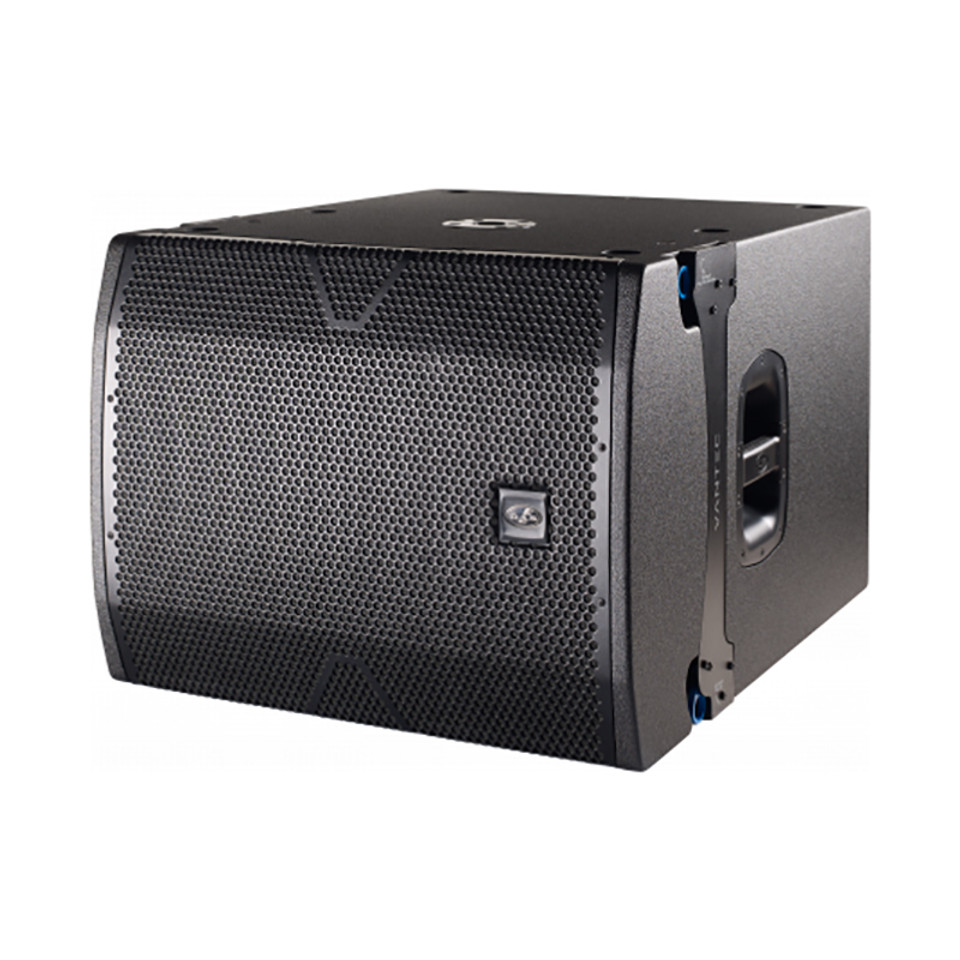

The VANTEC-118A is an active front loaded bass system which has been designed specifically for use with the VANTEC-20Acurved source line array. Compact in size, the unit can be flown in arrays or linked together in ground stacks thanks to the DAS Click-Lock™ rigging system which is compatible with the VANTEC-20A.
The electronics package includes a 2000 Wpeak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique “Deep-Loud” EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the “Deep” setting or a louder hard hitting performance in the “Loud” setting. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The VANTEC-118A is phase response coherent with the other Vantec Series active tops such as the VANTEC-20A offering precise alignment without the need of an external DSP.
Features
- Active front-loaded subwoofer system
- 1 x 18″ DAS 18FW loudspeaker
- Class D amplifier 2000 Wpeak
- Digital signal processing (DSP)
- Unique “Deep-Loud” bass EQ switch
- Variable low-pass filter 80 Hz-125 Hz
- LED ON/OFF switch on backplate
- Rigging compatible with VANTEC-20A
- Top located pole mount socket
Applications
- Concerts and corporate A/V
- Portable and live clubs
- Concert halls, theaters and auditoriums
- Houses of worship
Specifications
Performance
- Frequency Range (-10 dB): 35 Hz – 125 Hz
- Maximum Peak SPL at 1 m: 134 dB
Electronics and Connectors
- Nominal Amplifier Power (continuous): 1000 W
- Nominal Amplifier Power (peak): 2000 W
- Input Type: Balanced
- Input Impeadance: 20 kohms
- Input Sensitivity: 3 V (+12 dBu)
- Audio Signal Input Connector: 2 x Female XLR
- Audio Signal Loop Thru Connector: 2 x Male XLR
- AC Output Connector: powerCON NAC3FCB
- Current Draw 230 V / 115 V: 2.2 A/4.4 A
Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Rectangular
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Dimensions ( H x W x D ): 490 x 615 x 785 mm, 9,3 x 24,2 x 30,9 in
- Net Weight: 44,0 kg ( 97,0 lb )
Components
- LF Driver: 18FW
