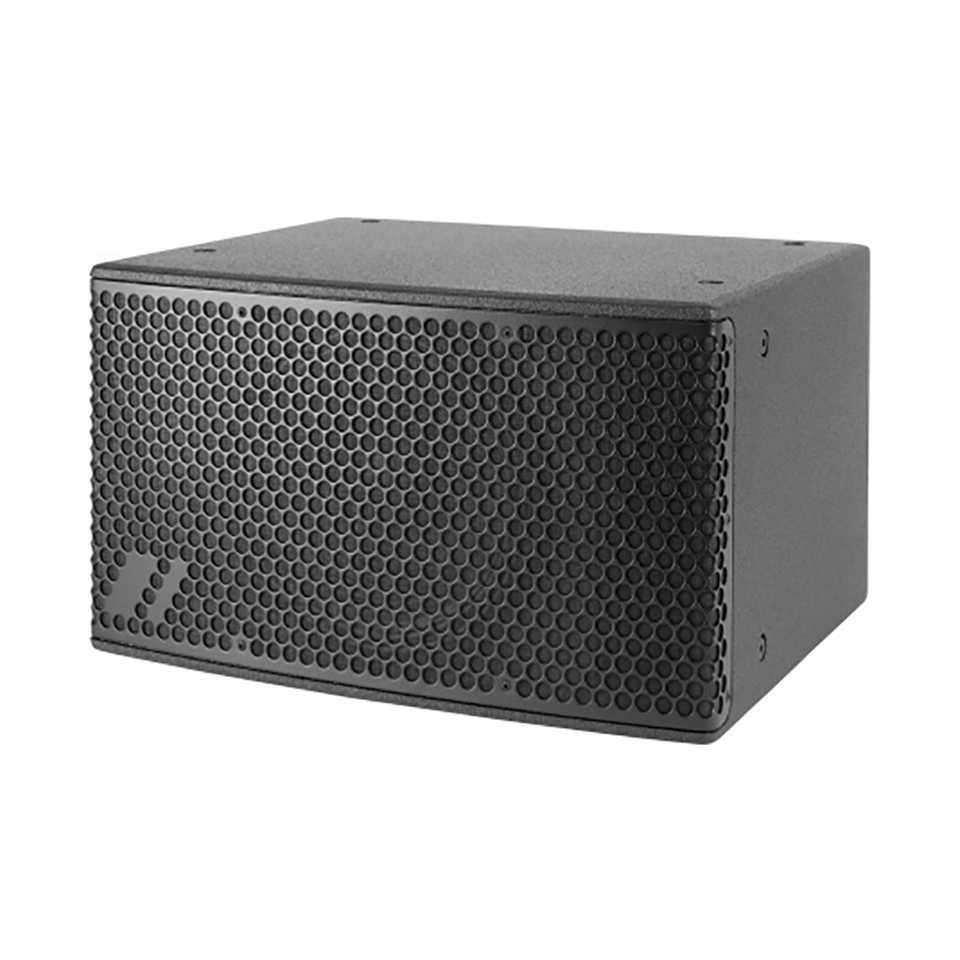

Passive, 200W (RMS), 8ʺ ultra compact Bass-Reflex subwoofer, black

SKU: DAS-Q-8
MSRP: $751.47

Overview

This ultra-compact, low-profile subwoofer is ideal for small- and medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops.

The connector panel provides a high-pass filtered satellite output for the Q Series tops

Features

  • Compact subwoofer system
  • Birch plywood enclosure
  • 1 DAS 8FW loudspeaker
  • Frequency range 50 Hz – 200 Hz

Applications

  • A/V systems and corporate events
  • Meeting rooms, classrooms, and exhibit areas
  • Installations in bars and clubs

Specifications

Performance

  • Frequency Range (-10 dB): 50 Hz – 200 Hz
  • Nominal Impedance: 8 Ohms
  • RMS Power Handling: 200 W
  • Peak Power Handling: 800 W
  • On-axis Sensitivity 1W/1 m: 92 dB SPL
  • Maximum Peak SPL at 1 m: 118 dB
  • Recommended Processor: DSP-226

Connectors

  • Audio Input Connector: Covered Barrier Strip Terminals
  • Audio Output Connector: Covered Barrier Strip Terminals

Enclosure

  • Enclosure Construction: Birch Plywood
  • Enclosure Geometry: Rectangular
  • Finish: ISO-flex Paint
  • Color: Black
  • Depth: 265 mm (10,5 in)
  • Dimensions ( H x W x D ): 260 x 405 x 265 mm, 10,0 x 16,0 x 10,5 in
  • Net Weight: 9,0 kg ( 19,8 lb )

Components

  • LF Driver: 8FW
