Crown IT4X3500HDS

Crown IT4X3500HDS

Crown IT4X3500HDS

Crown IT4X3500HDS

IT4X3500HDS SpeakOn Version

SKU: CRN-4X3500HDS-U-USFX
MSRP: $15,000.00
MAP: $15,000.00

Overview

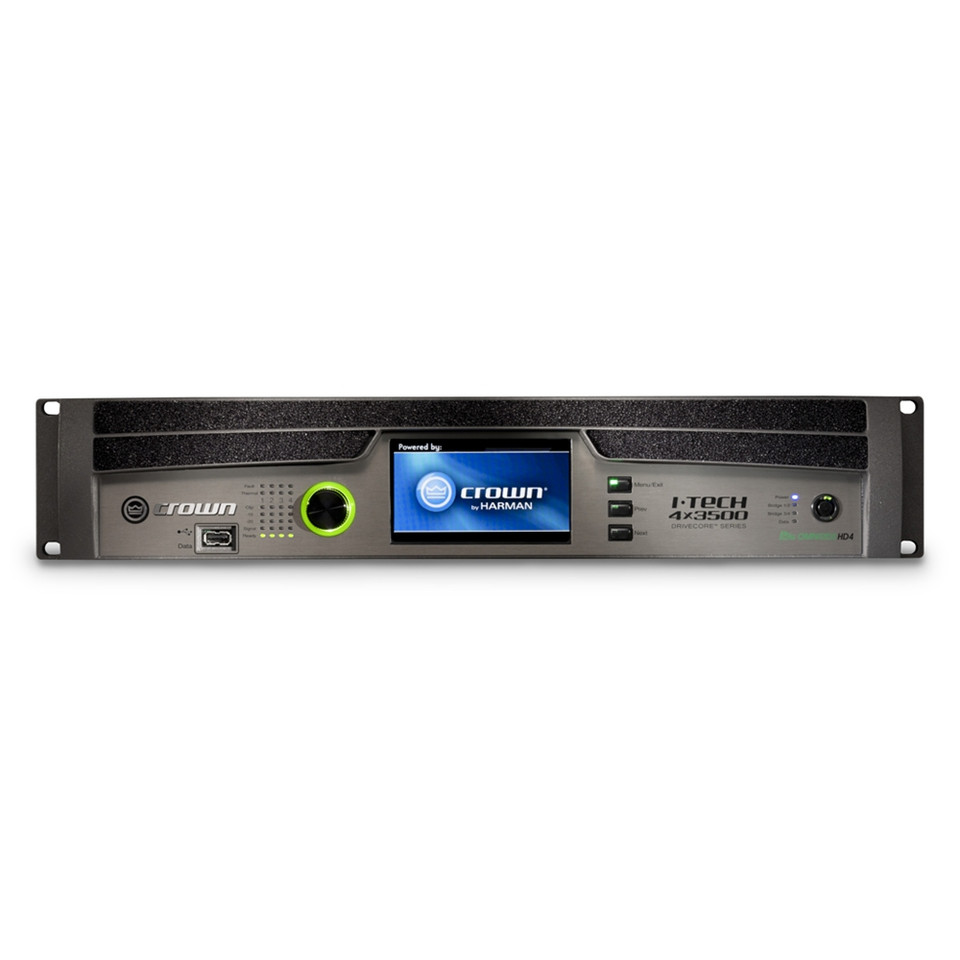

The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs.  Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings.  Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.

Features

More Flexibility

• True Ethernet backbone – fast, reliable and scalable

• Color LCD provides users with diagnostics and presets for easy setup

• Includes SLM (Sweep Load Monitoring) with system-level diagnostics

• Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP

• New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard

• The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity

No Compromise

• BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters

• High common-mode rejection eliminates hum and RFI on input cables

• Professional-grade connectors for all inputs and outputs

• Full power-supply voltage is always available, allowing instantaneous power on demand

• Quality-graded components let you safely drive the amplifier harder

• More total capacitance provides tremendous energy reserves for power bursts

No Comparison

• The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)

• LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound

• Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw

• Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)

Specifications

Channels 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet)
Sensitivity Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms
Damping Factor > 5000
Signal to Noise Ratio ≥ 108dB
THD (full rated power, 20 Hz - 20 kHz) 0.35%
Frequency Response ± 0.25dB
Intermodulation Distortion (from 0 dB down to -40 dB) 0.06%
Crosstalk > 80dB
Common Mode Rejection > 80dB typical
Dimensions 3.3" x 19" x 16.95" (8.9 cm x 48.3 cm x 43.1 cm)
Net Weight 29 lbs (13.2 kgs)
Power Connector 32A powerCON (on amp) - L6-30 plug (into wall)
