Overview

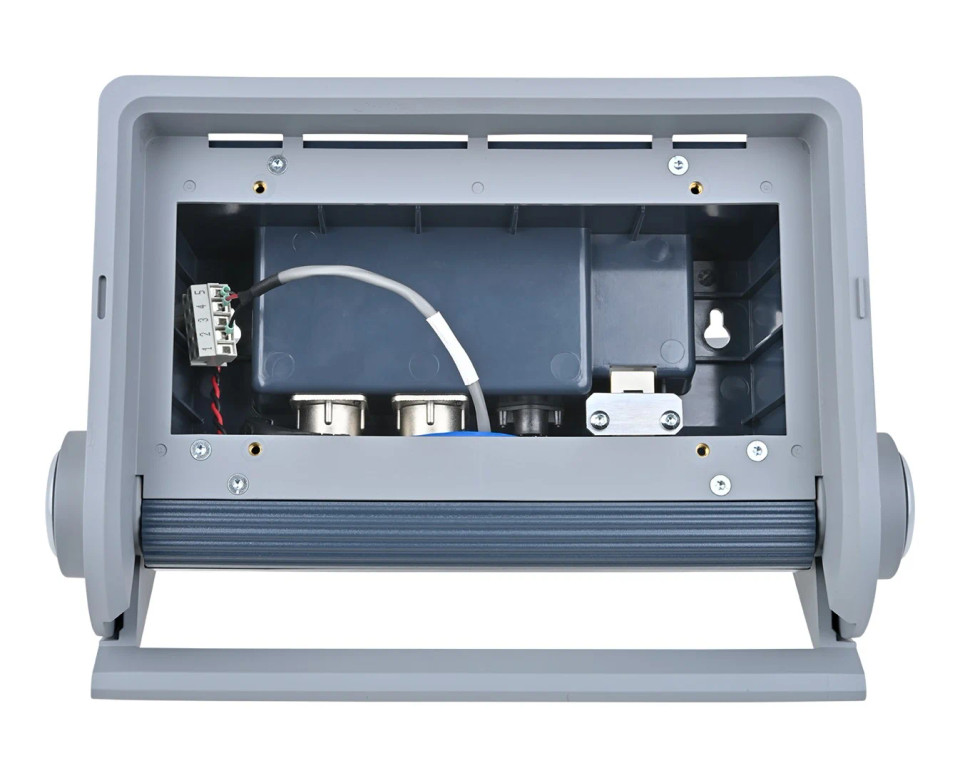

Clear-Com HelixNet Surface Mount: Desk/Wall for HelixNet Speaker Station - S-MOUNT

Simplify the desktop or surface mounting of your HelixNet Speaker Station (sold separately) with the HelixNet Speaker Station Enclosure. Offering adjustable angles to suit a wide variety of deployment needs, this flexible enclosure is ideal for both portable and semi-permanent installations, providing multiple angles for optimal use. It features various connectivity options, making it easy to integrate into your current setup and ensuring reliable performance in any environment.

HXII-MOUNT Includes:

• (4) 6/32 x 1/2" mounting screws (280038Z)
• (4) Screw cover (416G054)
• (4) Rubber feet (111G032)
• Wall adapter PSU 15W 48V DC (453G025)

Features

• Flexible enclosure for Speaker Station
• Desktop with multiple angles
• Portable and semi-permanent installations
• Various connectivity options

Specifications

• Connectors
  • XLR Powerline: 3-pin XLR-M/F
  • DC Power: 3-pin KPJX-PM-3-S
  • Ethernet/PoE: RJ45
• Power
  • AC Adapter Wall (included):
  • Input Voltage Range: 100 - 240V AC
  • Input Frequency Range: 50 - 60Hz
  • Input Power Connector: Universal
  • Output Voltage: 48V DC
  • Output Power (Max): 15W
  • Output Power Connector: KPPX-3-P
• Environmental
  • 32º - +104ºF (0º - +40ºC)
  • 90% relative humidity
• Dimensions
• Minimum (Closed):
  • 9 x 10.4 x 6.7 in (HxWxD)
  • (99 x 265 x 170 mm)
• Maximum (Open):
  • 9 x 10.4 x 6.7 in (HxWxD)
  • (175 x 265 x 170 mm)
• Weight
  • HXII-MOUNT: 1.9lbs (0.86kg)
  • S-MOUNT: 2.8lbs (1.2kg)
