Maverick MK Pyxis Includes: IP powerKON Power Cord, 2pc Omega Brackets Control: 3-pin DMX, 5-pin DMX, ArtNet, sACN, WDMX

SKU: CHV-MAVERICKPYXIS
MSRP: $2,969.92
MAP: $2,468.75

Overview

Includes:IP powerKON Power Cord, 2pc Omega Brackets Control:3-pin DMX, 5-pin DMX, ArtNet, sACN, WDMX

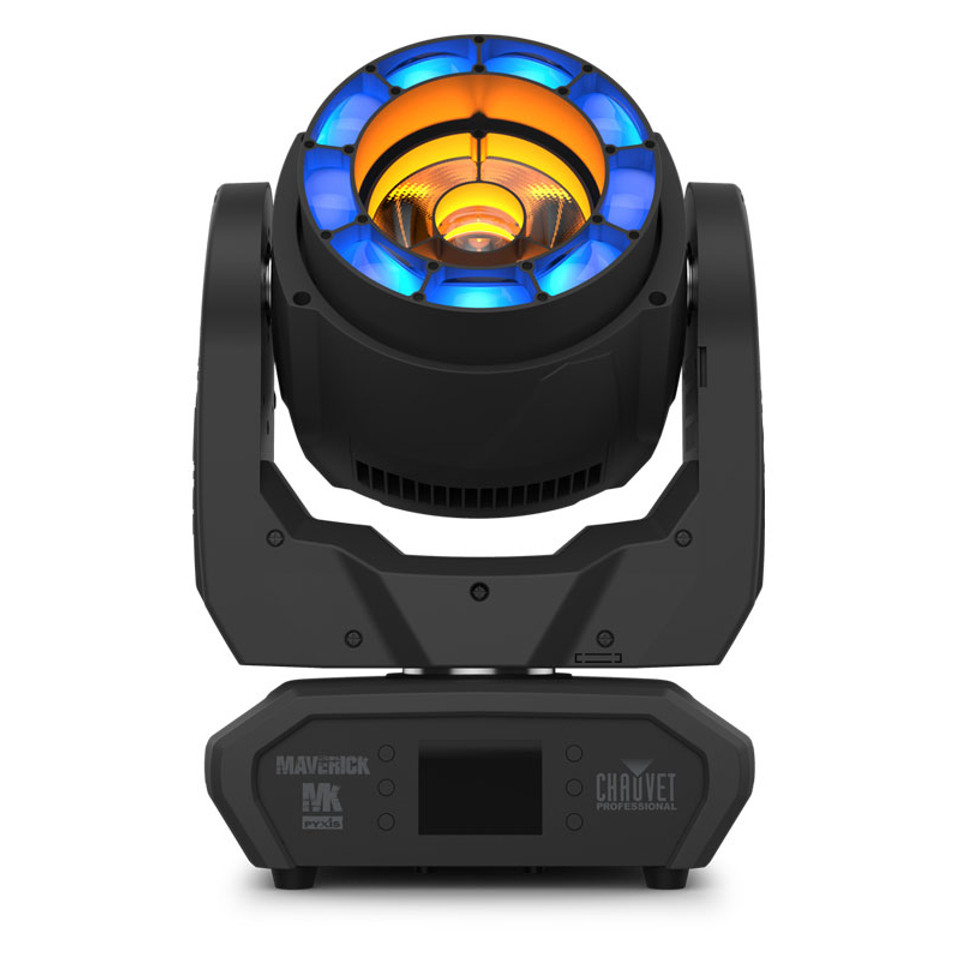

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.

At a Glance

  • A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement
  • A (9) 15 W RGBW LED outer ring of LEDs with a 4.9°— 58.4° zoom range and pixel control for wash and narrow effects
  • A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects
  • Virtual Color wheel with instantaneous access to 21 colors
  • Built in color effects for quick design possibilities
  • Built in virtual gobo wheel with background colors for impressive atmospheric effects
  • Quiet operation for a wide range of installation situations
  • DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
  • RDM enabled for remote addressing and trouble shooting
  • Converts TCP/IP to DMX for shorter data cable runs
  • 2.8°— 58.4° zoom range for variable beam sizes
  • True 1 compatible power input
  • Battery backup touchscreen display with auto rotate depending on fixture orientation
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

Specifications

Optical

  • Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy
  • Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle (center pixel and outer ring): 2.8°
  • Beam Angle (center pixel): 2.7°
  • Beam Angle (outer ring): 4.9° to 32°
  • Field Angle (center pixel and outer ring): 6.7°
  • Field Angle (center pixel): 4.5°
  • Field Angle (outer ring): 7.9° to 47.8°
  • Cutoff Angle: 8.3° to 58.4°
  • Zoom Range: 2.8° to 58.4°
  • Lumens – Source: (center pixel) 1,700 (outer ring) 4,300
  • Lumens – Output: (center pixel) 1,100 (outer ring) 2,400
  • Illuminance (center pixel / outer ring): 11,267 lux @ 5 m
  • Illuminance (center pixel): 19,306 lux @ 5 m
  • Illuminance (outer ring): (7.9°) 4,724 lux @ 5 m, (47.8°) 437 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 270°, 180°, 90° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Modes: 2
  • Dim Curves: 4

Construction / Physical

  • Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)
  • Weight: 31.96 lb (14.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input/Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, , Amphenol XLR Net RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
  • DMX Channels Single Mode: 26,66,113,131
  • DMX Channels Dual Mode – Function: 13,26,33
  • DMX Channels Dual Mode – Pixel: 30,40,80
  • Art-Net Channels Single Mode: 26,66,113,131
  • Art-Net Channels Dual Mode – Function: 13,26,33
  • Art-Net Channels Dual Mode – Pixel: 30,40,80

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
  • Power and Current: 325 W, 2.726 A @ 120 V, 60 Hz
  • Power and Current: 322 W, 1.546 A @ 208 V, 60 Hz
  • Power and Current: 321 W, 1.395 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP20, dry location

What's Included

  • Maverick PYXIS
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware
