Overview

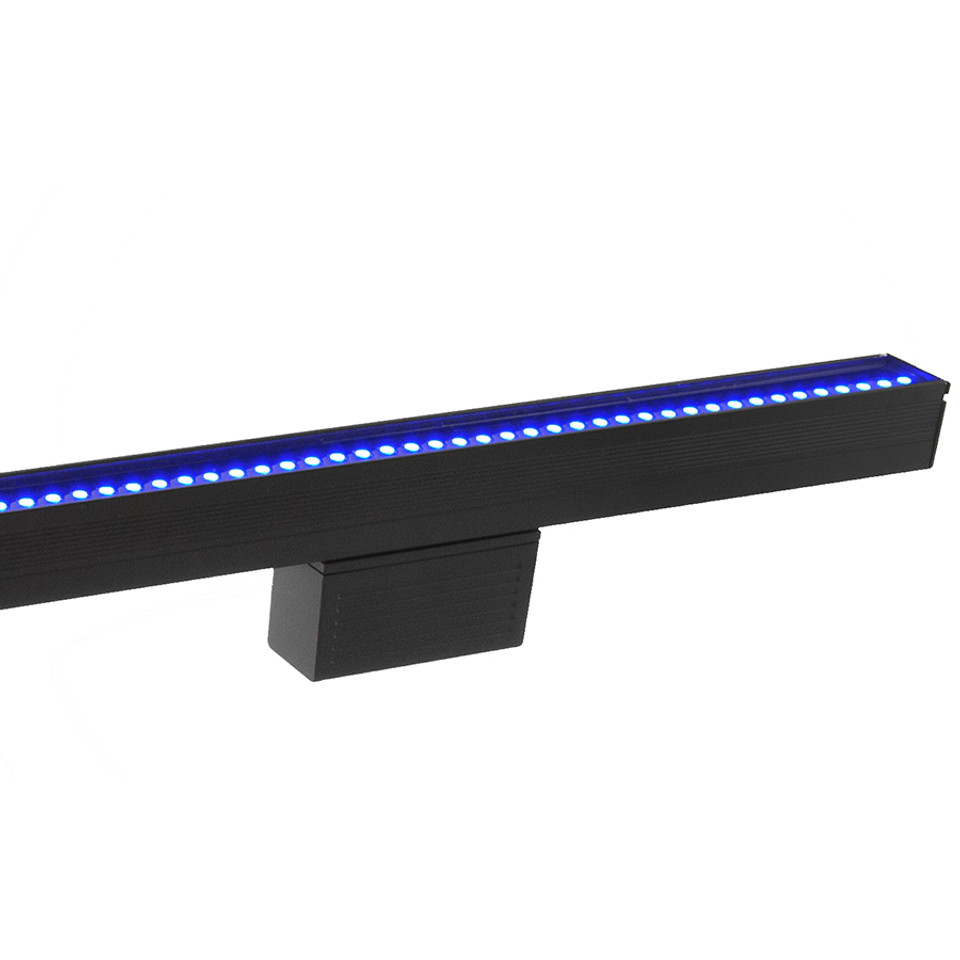

ÉPIX Strip IP
Épix Strip IP is an outdoor pixel-mapping 1-meter LED strip, featuring 100 LEDs in a row, ideal for festivals, concert touring, and installations. Power and control it through the Épix Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN). Quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks. For added versatility and more creative options, dome and flat accessories are included.
Features
-
Pixel-mapping 1-meter 100 x 1 IP65 rated LED strip for showing video and/or motion graphics
-
Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.
-
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
-
Reduce programming time and increase application by using the alternate personalities of 17 channel, 5, 10, 20, and 50 sections, or use the Pixel personality for use with video servers
-
Increase viewing angle by using the optional dome accessory
-
Epix Drive 2000 IP required for operation
Specifications
| OPTICAL | |
| Light Source | 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy |
| Viewing Angle (with installed square milky filter) | 160° |
| Viewing Angle (with optional dome filter) | 160° |
| Pixels | 100 x 1 |
| Pixel Pitch | 10 mm |
| Refresh Rate | 4800 Hz |
|
CONSTRUCTION / PHYSICAL
|
|
| Dimensions (with installed square milky filter ) | 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm) |
| Dimensions | (with included black stealth filter) 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm) |
| Dimensions (with optional dome filter) | 39.37x 5.03 x 1.77 in (1000 x 128 X 45 mm) |
| Weight | 6 lb (2.7 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum |
|
CONNECTIONS
|
|
| Data Connectors | 4-pin XLR |
| Physical Linking | 10 inline Epix Strip IP per port of Drive 2000IP |
| Total max. cable length (shielded cables) between Epix Drive 2000 IP and last Epix IP fixture | 210 ft (64 m) |
| Max. cable length (shielded cables) between Epix Drive 2000 IP and first Epix IP fixture | 65 ft (20 m) |
| Max. cable length (shielded cables) between Epix IP fixtures | 60 ft (18 m) |
| Total max. cable length (unshielded cables) between Epix Drive 2000 IP and last Epix IP fixture | 300 ft (91 m) |
| Max. cable length (unshielded cables) between Epix Drive 2000 IP and first Epix IP fixture | 150 ft (45 m) |
| Max. cable length (unshielded cables) between Epix IP fixtures | 100 ft (30 m) |
|
CONTROL
|
|
| Control Protocol | Art-Net, Kling-Net, sACN |
| Control Channels Art-net, sACN) | 15, 17, 30, 60, or 300 |
|
ELECTRICAL
|
|
| Power and Current | 35 W, 0.292 A @ 120 V, 60 Hz |
| Power and Current | 44 W, 0.210A @ 208 V, 60 Hz |
| Power and Current | 44 W, 0.195 A @ 230 V, 50 Hz |
|
CERTIFICATIONS / QUALIFICATIONS
|
|
| CE, MET | |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
