Overview

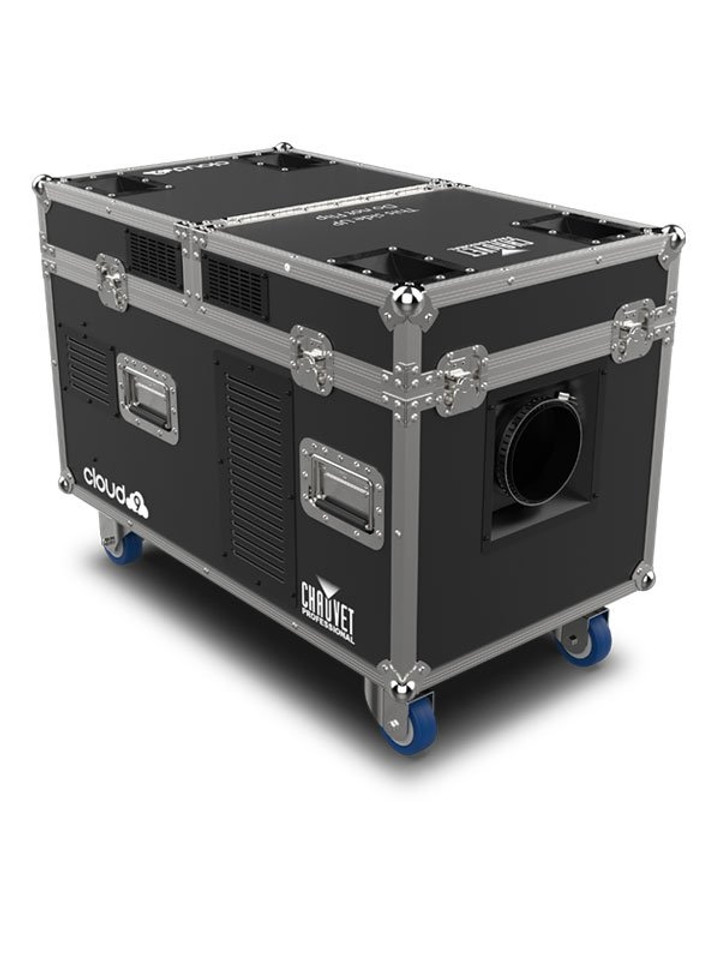

Cloud 9 is an impressive, low-lying fogger that creates thick, cloud-like effects with a high-impact output ideal for use on large-scale stages, theatres, live performances and theme parks. The robust unit has a best in class heat-up time of 4 minutes and no dry ice or CO2 is needed, which means no special licensing/training is required. Because it works without a special coolant or compressor, only water and fog fluid is needed for continuous output. The powerful unit weighs in at 121 lbs and is equipped with several handy transport features such as its road case housing, metal handles and wheels to easily glide across any stage. Control it on the LCD display or via DMX.
Features
- Professional fogger gives high-impact low-lying fog effect on stage or in ballrooms
- Continuous operation produces fog to cover 3,230 ft2 (300 m2) area
- Ultrasonic agitator combines distilled water with fog to produce low-lying fog effect
- Ships in rugged flight case with locking casters with hinged top cover to allow for operation even when closed
- Control via on board digital display or DMX
- Integrated water drain system makes cleanup fast and easy
- Works with fog fluid, haze fluid, or quick-dissipating fluid for desired effect
- Use without dry ice or CO2, so no special licensing/training required
Specifications
Dynamic Effects
- Output: 15,000 cfm
- Low Fluid Shutdown: Yes
- HDF- Best overall performance for a medium to large coverage area. Fog dissipates after lifting into the air.
- PHF- Great dual-purpose effect. Good coverage area. Fog lifts into the air to become haze.
Construction / Physical
- Dimensions: 33.85 x 19.29 x 24.80 in (860 x 490 x 630 mm)
- Output Nozzle (outer diameter): 4.76 in (121 mm)
- Hose Length (fully extended): 8 ft (2.44 m)
- Weight: 121.3 lb (55.8 kg)
- Exterior Color: Black
- Fluid Tank Capacity: 0.92 gal (3.5 l)
- Water tank Capacity: 5.3 gal (20 l)
- Fluid Consumption: 29 ml/min (0.75 gal/hour)
- Water Consumption (distilled): 165 ml/min (2.62 gal/hour)
- Maximum Run Time: 2 hours max runtime @ 100% output
Connections
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65 (2x 120 V, 1x 230 V)
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX,
- DMX Channels: 2
- Modes/Personalities: 1 personalities (2)
- On-Board Control: Yes
Electrical
- Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
- Power and Current (input A): 1000 W, 8.36 A @ 120 V, 60 Hz (120 V version)
- Power and Current (input B): 1130 W, 9.40 A @ 120 V, 60 Hz (120 V version)
- Power and Current: 2,600 W, 11.3 A @ 230 V, 50 Hz (230 V version)
- Heat-up Time: 3 min
- Breaker Size: 15 A (Input A, 120 V version)
- Breaker Size: 20 A (230 V version)
Certifications / Qualifications
- CE
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Cloud 9
- 2 Seetronic Powerkon IP65
- Directional hose and hose clamp
- Overflow polyurethane tubing, 8.5 mm, 3ft (0.9 m)
Required Accessories
- PHF
- HDF
