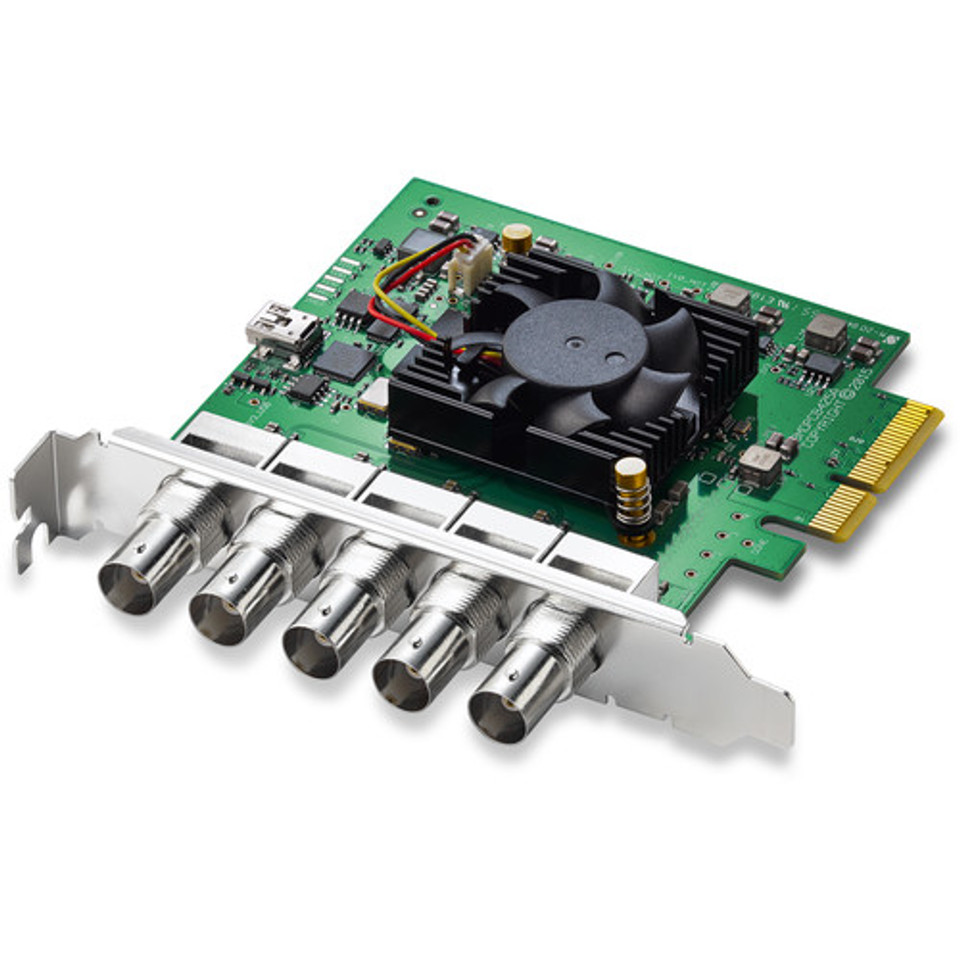

DeckLink Duo 2

SKU: BMD-BDLKDUO2
MSRP: $495.00
MAP: $495.00



With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.



Processing
  • Colorspace Conversion: Hardware based real time
  • HD Down Conversion: Built-in, high quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
  • HD Up Conversion: Built-in, high quality software up conversion from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
  • Cross Conversion: Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
  • Real Time Effects Support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects
Software Compatibility
The DeckLink Duo 2 interfaces with many popular NLE, DAW, and professional software programs including:
  • Blackmagic Design: DaVinci Resolve, Fusion 8
  • Apple: Final Cut Pro X
  • Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
  • Avid: Media Composer, Pro Tools
  • Stienberg: Cubase, Nuendo
For an up-to-date list, see the Blackmagic Design website
Features
I/O 4 x Bi-directional SDI BNC
1 x Sync BNC input
Interface PCI-E x4
Format Support 1080p23.98/24/25/29.97/30/50/59.94/60
1080PsF23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94
NTSC
PAL
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B
Sampling Video: 4:2:2, 4:4:4
Audio: 24-bit, 48 kHz
Color Precision 8, 10-bit YUV 4:2:2
8, 10, 12-bit RGB 4:4:4
Color Space REC 601, REC 709
OS Compatibility Mac OS 10.9, 10.10, 10.11 or newer
Microsoft Windows 7, 8, 10
Linux
Certification FCC, CE, C-Tick
Environmental Operating temperature: 32 to 104°F / 5 to 40°C
Storage temperature: -4 to 113° F / -20 to 45°C
Relative humidity: 0 to 90% non-condensing
Form Factor Length: 3.7" / 94 mm
Form factor: Single slot
Weight 5.6 oz / 160 g
Packaging Info
Package Weight 0.6 lb
Box Dimensions (LxWxH) 5.6 x 5.4 x 1.2"
