Overview

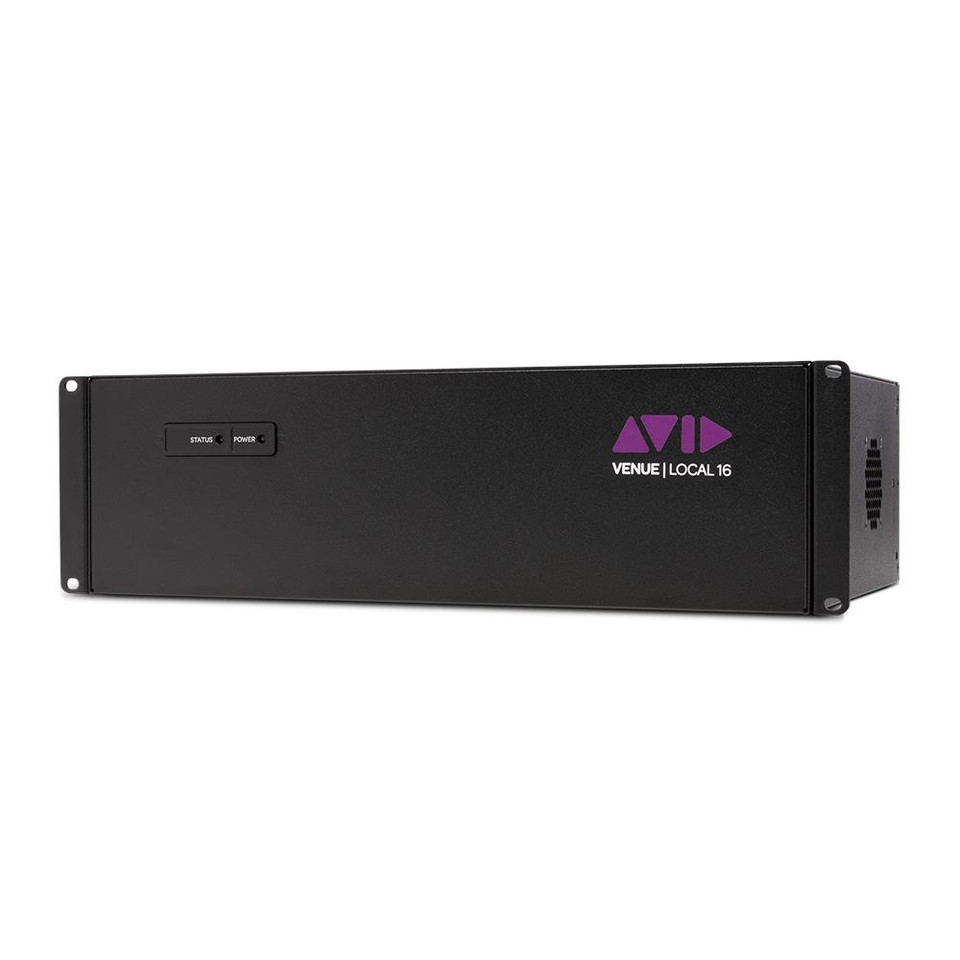

Expand your local I/O capabilities—or add primary local I/O if mixing on the S6L-16C control surface—with this compact I/O rack.

Features:

• Provides 8 analog inputs, 8 analog outputs, 8 AES digital inputs, and 8 AES digital outputs
• 3U rack
• Serves as the primary local I/O component for S6L-16C

Specifications:

• Maximum I/O: 8 XLR mic/line inputs, 8 XLR outputs, 4 pairs of XLR stereo AES/EBU inputs (8 channels total), 4 pairs of XLR stereo AES/EBU outputs (8 channels total)
• I/O card slots: n/a
• Sample rates: 96 kHz
• Ethernet AVB ports: 2 Gigabit Ethernet AVB ports
• Maximum cable length: 328ft (100 meters)
• MADI: n/a
• Headphone confidence monitor: n/a
• Word Clock I/O: n/a
• Power supply: Dual redundant internal PSUs
• Dimensions (H x W x D): 5.2" x 17.4" x 11.0" (132 x 442 x 278mm)
• Rack spaces: 3RU
