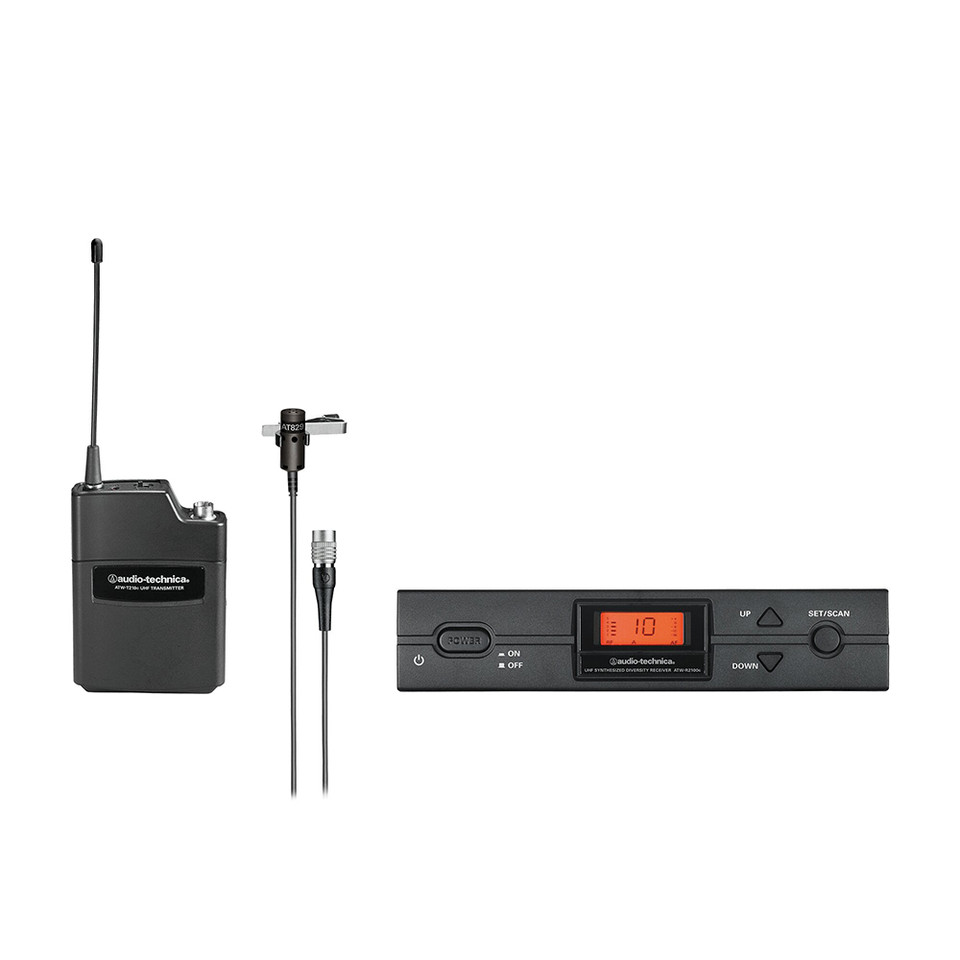

ATW-R2100c receiver and ATW-T210c body-pack transmitter with AT829cW lavalier microphone.

Specifications

Overall System Specifications

• Operating frequency: 487.125 to 506.500 MHz

• Number of channels: 10 total
• Modulation mode: FM
• Maximum deviation: ±40 kHz
• Dynamic range: > 110 dB (A-weighted), typical
• THD: < 1% (at 1 kHz, ±20 kHz deviation)
• Operating range: 100 m (300') typical; open range environment with no interfering signals
• Operating temperature range: 41º F to 113º F (5º C to 45º C)
• Frequency response: 100 Hz to 15 kHz (+1 dB, -3 dB)


Receiver Specifications

• Receiving system: True diversity
• Image rejection: 60 dB nominal, 55 dB minimum
• RF sensitivity: 20 dBuV at 60 dB, S/N ratio (50 ohms termination)
• Antenna input: BNC-type, 50 ohms
• Bias voltage 12V DC, 60 mA, each
• Power requirements: 12-18V DC, 500 mA
• Dimensions: 8.27" W x 6.39" D x 1.73" H (210.0 x 162.2 x 44.0 mm), not including BNC connectors or feet
• Maximum output level: XLR, balanced: +9 dBV; 1/4" (6.3 mm), unbalanced: +4 dBV
• Accessories included: Two flexible UHF antennas, AC adapter (country dependent), rack-mount adapters


Body-Pack Transmitter Specifications

• RF power output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
• Spurious emissions: Following federal and national regulations
• Input connections: Four-pin locking connectors; Pin 1: GND, Pin 2: INST, INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
• Batteries Two 1.5V AA, not included
• Battery life: High 7 hours (alkaline), Low 9 hours (alkaline) depending on battery type and use pattern
• Dimensions: 2.60" W x 0.89" D x 3.63" H (66.0 x 22.5 x 92.3 mm)
