SD72 10oz Dual Cone Speaker/ 5 Watt Transformer (70.7/25V) Assembly

The speaker used in the SD72 is the next generation of Atlas high performance cone loudspeakers very similar to the preceding C-Series speakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72.

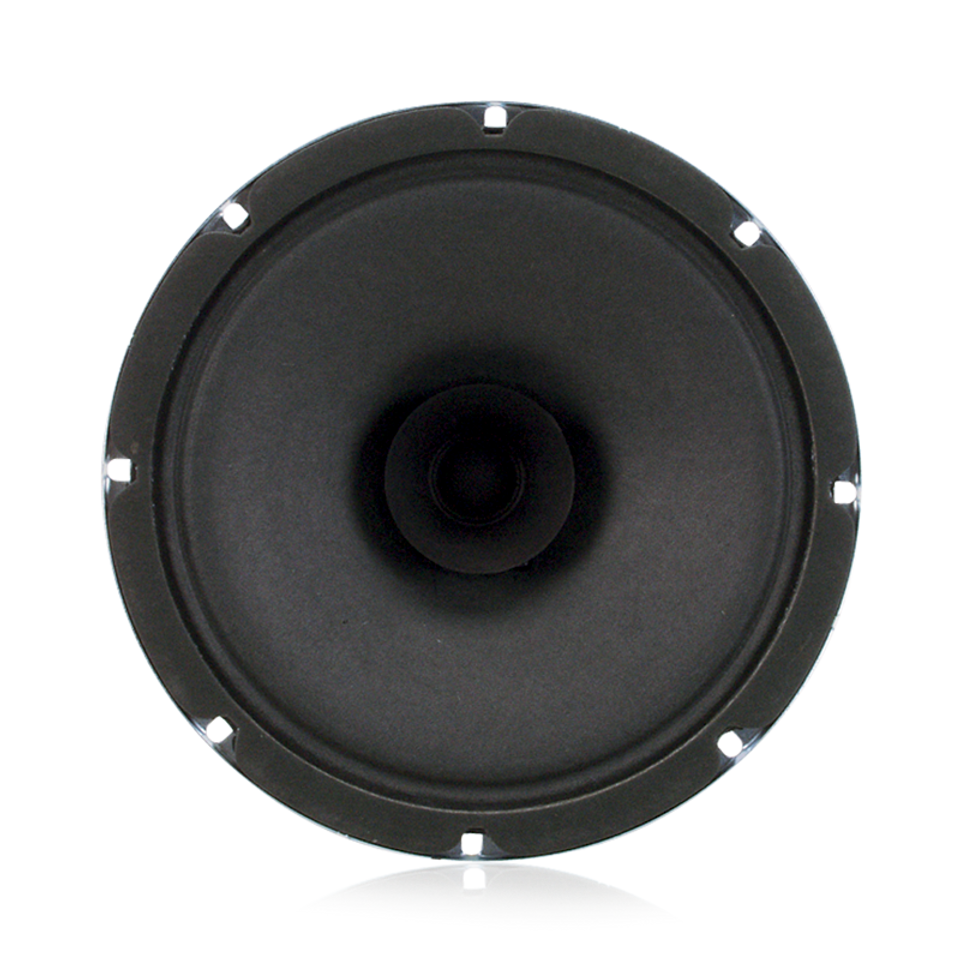

Model SD72 is a dual cone 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

Model SD72 operates within a frequency response range of 45Hz to 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

The unit mounts a wide variety of Atlas Sound round and square baffles and enclosures to meet functional and aesthetic application requirements.

• 5 watt-dual voltage transformer
• Individually packaged for stocking & ordering convenience
• Quality 10oz dual cone speaker provides familiar response & performance
