FA42T-6MB “Motor Board” Assembly
Fits Original Strategy Series 6" and 8" Enclosures

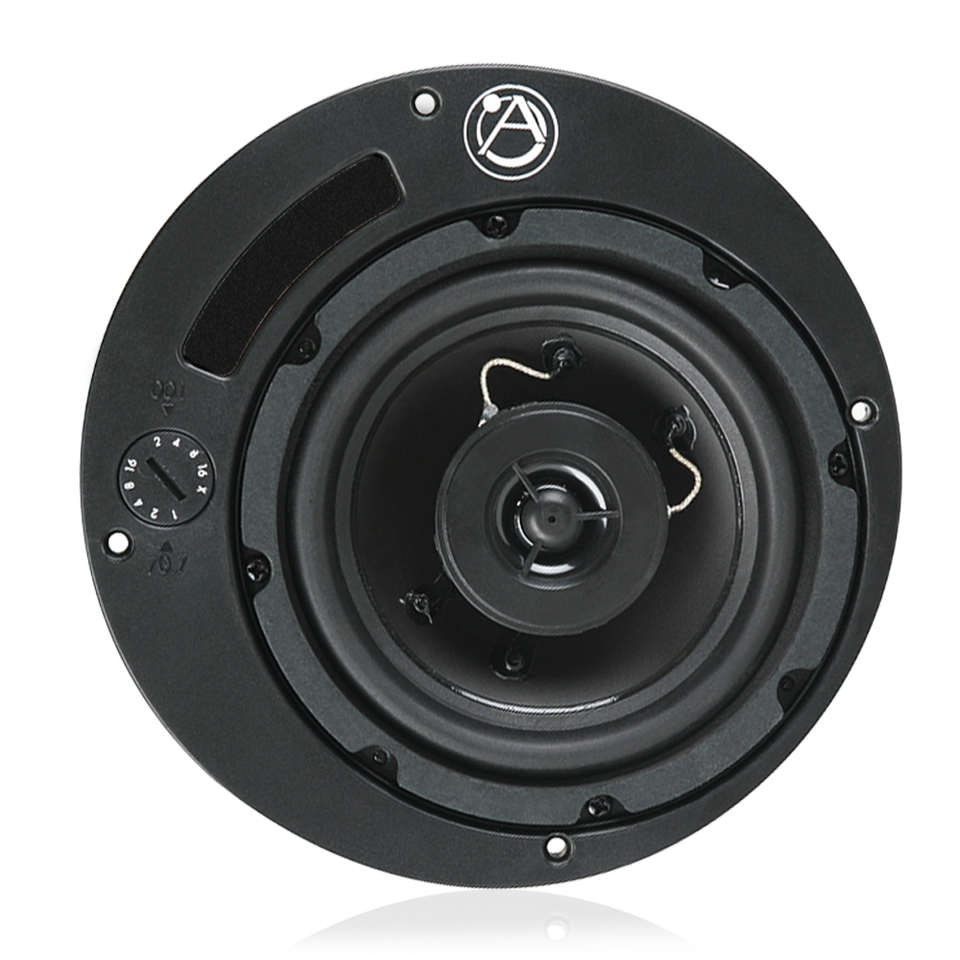

Model FA42T-6MB is the entire 4" speaker/ transformer/ selector switch/ front plate assembly found in the FAP42T assembly. The footprint of the FA42T-6MB is identical to a standard FA series 6" speaker component. This footprint allows the motor board to fit into all original Strategy Series 6" enclosures in the exact same manner as a regular 6" FA speaker (FA136Txx).
- 4" Speaker installs into 6" Strategy enclosure
- Designed for division of labor installations when enclosures need to be installed before speakers are installed
- Enhanced quality 70.7V/100V internal Install Sound > Install Speakers > Transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
- Front mounted tap selector switch for easy system tuning adjustments
- Motorboard assembly has same footprint and bolt-hole pattern as 6" speaker
- Tuned port maximizes low frequency response from FA97-6 & FA95-6 enclosure
- UL1480 for General Signaling Listed file UEAY.S1824
Specifications
Speaker Type |
Coaxial |
Power Taps |
1, 2, 4, 8, & 16 Watts |
Dispersion |
130 |
