Overview

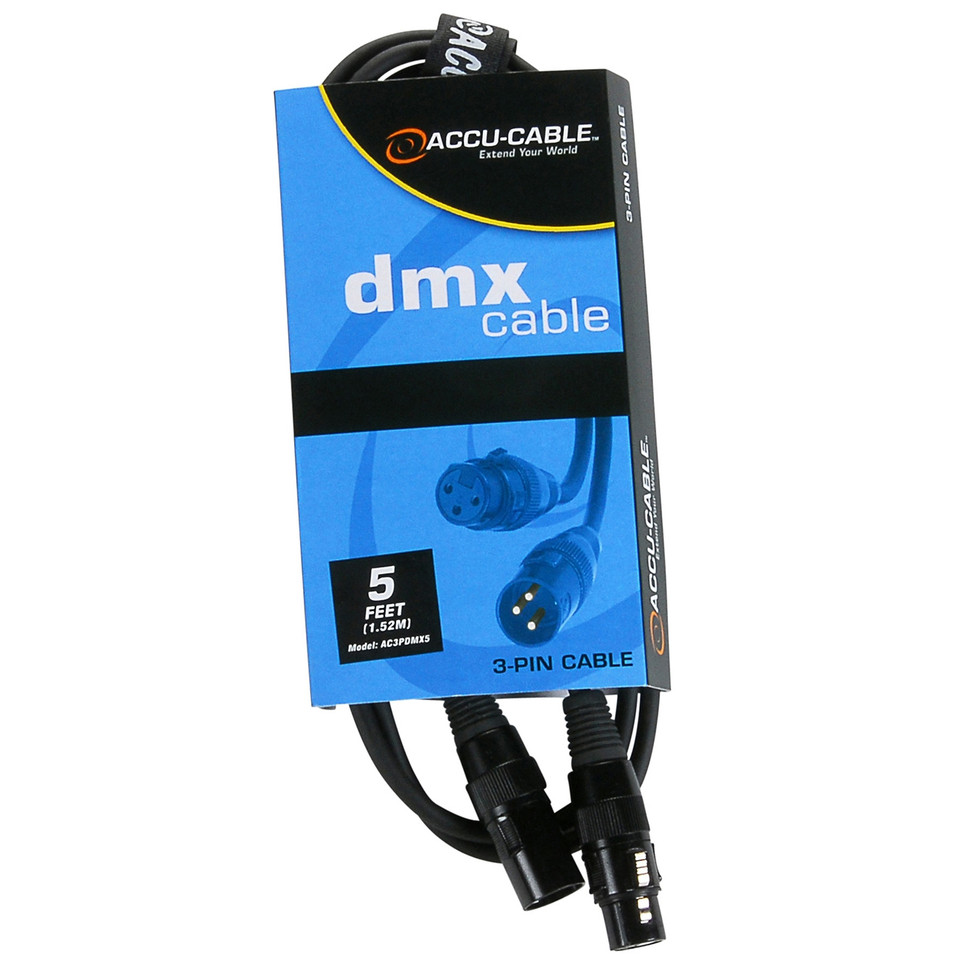

5 foot 3-pin DMX cable to hook up lights to controllers, or to connect dimmer packs together.

Features

• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
