DISTANCE TRANSMISSION
for installed and mobile multilingual conference setups, tour guides and assistive listening
The CSX IRT3 and CSX IRT4 are 10 channel infrared transmitter. Using digital PPM signal always all LED´s cover the same area and distance, regardless the number of channels needed in an application ensuring perfect coverage even with changing channel needs. The CSX IRT3 and 4 can be cascaded almost without limit due to a signal refresher built into all transmitters. Even very large areas can be covered. The transmitters are designed in a way that no cooling fans are needed – they act absolute quiet without any noise. Clearly visible LED´s indicate the status from the distance, providing highest security for the technician on site.

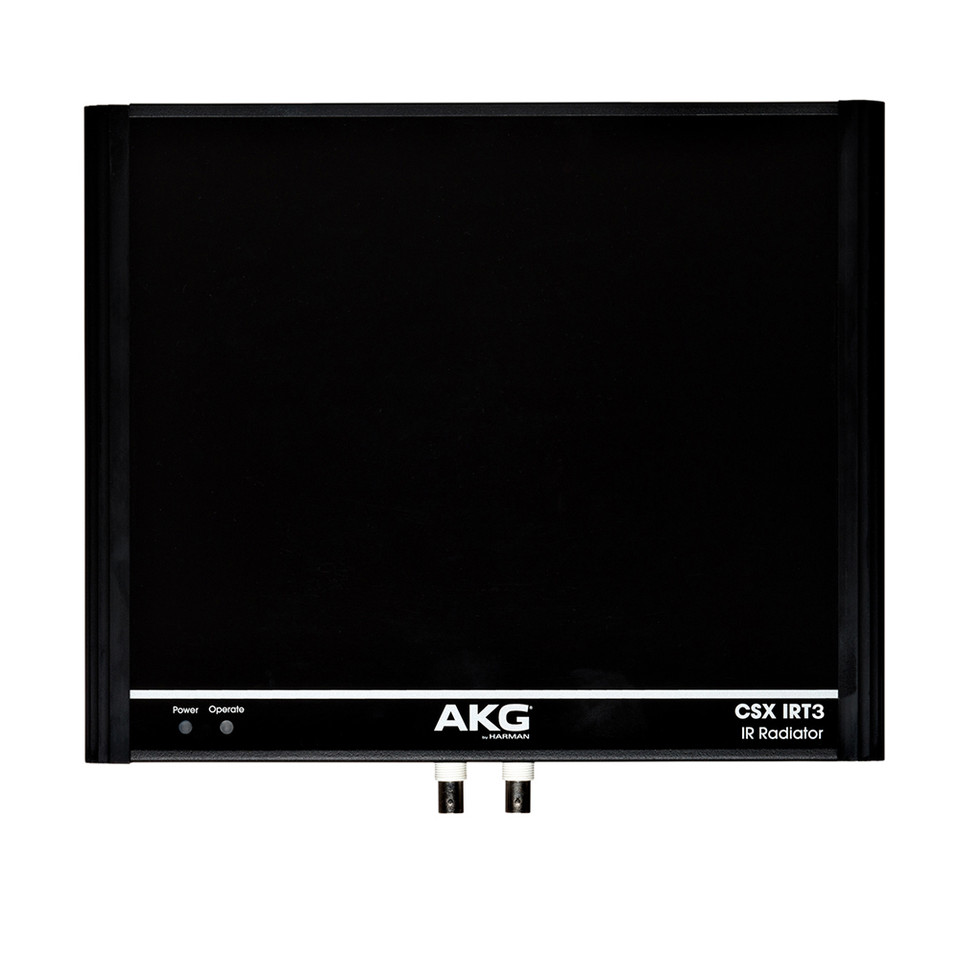

The CSX IRT3 is the spotlight version with a light angle of +/-17° to cover distances up to 65m.
Features
- Digital Transmission with PPM technology - effective audio and radiation quality control – easy to install
- For CS5 or as standalone system - works with all kind of analogue inputs
- Elegant Design with Status LED - showing clearly the status
- Included signal refresher - cascadable to cover large areas
- Mounting bar - for wall or ceiling mount
- 2 different light characteristics – flood and spot light
Specifications
| General |
|
| System Interface In |
| Amount |
1 |
| Contacts |
2-pin |
| Rated Impedance |
50 Ohms |
| Type |
BNC |
|
| System Interface Out |
| Amount |
1 |
| Contacts |
2-pin |
| Rated Impedance |
50 Ohms |
| Type |
BNC |
|
| Design |
| Body |
Metal |
| Finish |
Matte black |
|
| Powering |
|
| Dimensions / Weight |
| Width |
280 mm |
| Height |
260 mm |
| Depth |
70 mm |
| Net Weight |
4000 g |
|
