AKG CSX IRR10

AKG CSX IRR10

AKG CSX IRR10

AKG CSX IRR10

Conference System Equipment

SKU: AKG-6500H00150
MSRP: $597.31
MAP: $467.00

Overview

Intuitive Pocket Receiver

for installed and mobile multilingual conference setups, tour guides and assistive listening

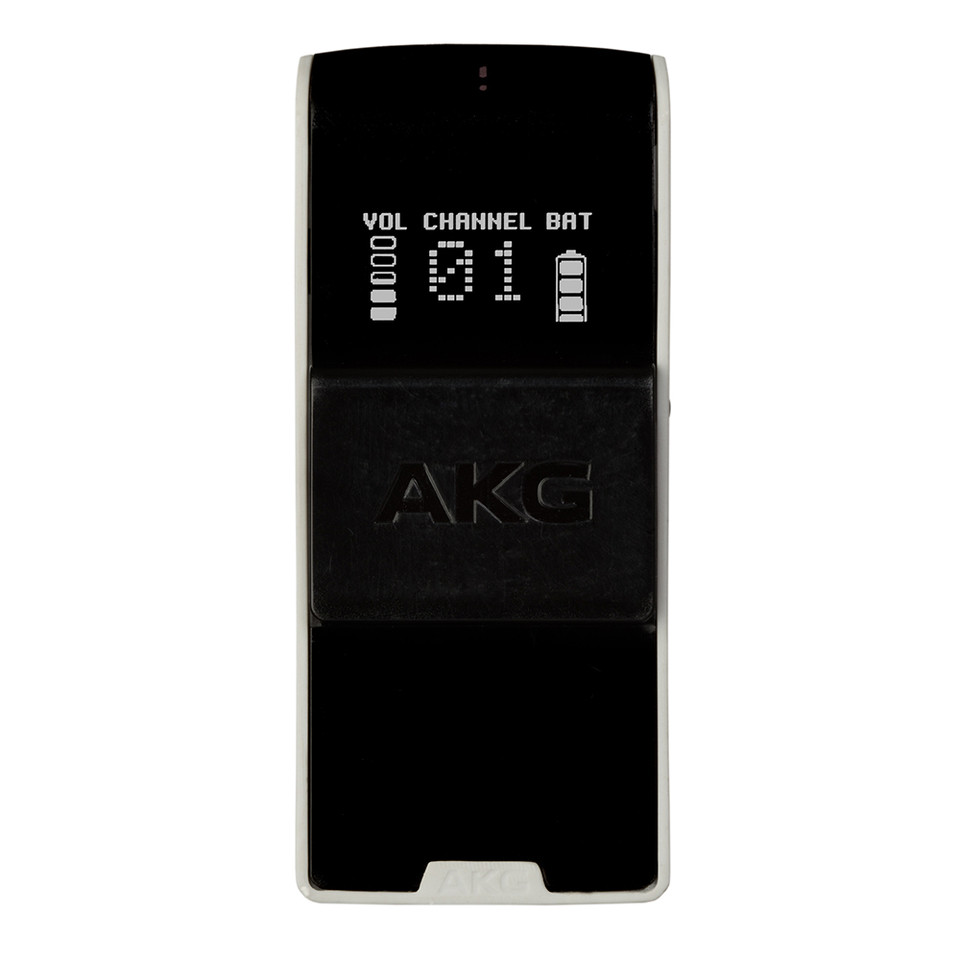

The CSX IRR10 is a reference conferencing infrared receiver that supports up to ten language channels. A large OLED display clearly shows all required information for output volume, channel number and battery status.

With 2 jog dial selectors (1) one can select the requested channel and adjust the output level to the headphones. A standard 3,5mm stereo jack plug (2) enables the use of any kind of headphones. To charge the 2700mAh NiMh rechargeable batteries (up to 20 hours operation time) a charging/storage case (3) for 50 units is available. For single units a standard USB charger (4) can be used.

Features

  • Digital Transmission using PPM modulation - prevents fluorescent-light interference for effective audio and radiation quality control

  • For CS5 or as standalone system - works with all types of analogue inputs

  • Receives up to ten different languages - For multilingual conference applications

  • Up to 20 hours operation with only 2x AA standard rechargeable batteries - Low operation cost and energy technology

  • Integrated clip on front panel - for tight fit in the pocket of a shirt

  • Charging via any USB charger for single units or via the charging case for 50 units - for quick and easy, space saving and intelligent charging

  • Specifications

    General
    Number of languages 10
    Reception angle 140
    Headphone Output
    Amount1
    Audio frequency bandwidth150 to 5100 Hz
    Contacts3-pin
    GenderFemale
    Output level>55 dB
    Recommended load impedance32 Ohms
    Signal to Noise>55 dB-A
    TypeJack Stereo (1/8")
    Battery
    Battery typeHR 6 AA (NiHM) rechargeable battery
    Number of batteries2
    Operating time20 h
    Design
    Bodyplastic
    Finishmatte black/white
    Dimensions / Weight
    Width57 mm
    Height132 mm
    Depth23 mm
    Net Weight140 g
