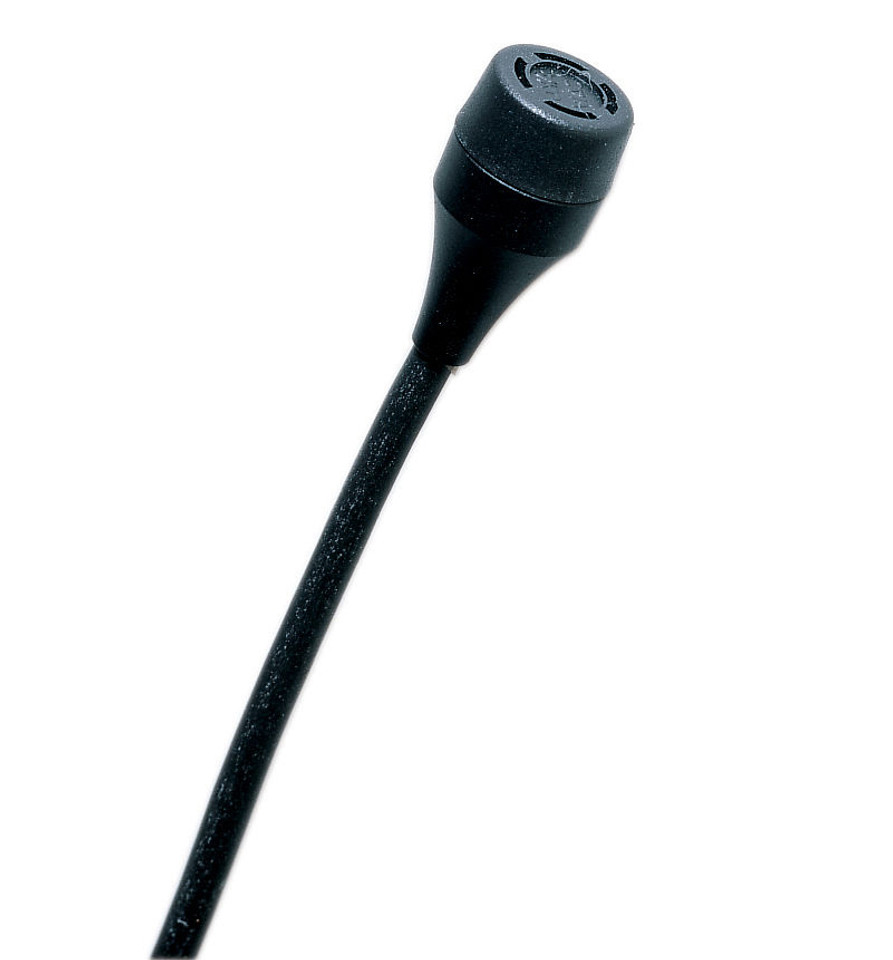

Affordable professional miniature condenser microphone. Its broadband flat audio reproduction in an omnidirectional format is ideal for all types of broadcast and theatrical applications. The sound is extremely open and natural making it ideal for wireless or hardwire multi-mic situations. An attachment clip tiepin and windscreen are supplied with each C 417.
C 417 PP: For hardwire applications with standard XLR connector for phantom powering.
C 417 L: With mini XLR connector for use with B 29 L battery operated power supply MPA V L external phantom power adapter or AKG WMS bodypack transmitters.
Specifications
| General | | Audio Frequency bandwidth | 20 to 20000 Hz | | Sensitivity | 7 mV/Pa | | Equivalent Noise Level | 34 dB-A | | Signal to Noise | 60 dB-A | | Electrical Impedance | 200 Ohms | | Recommended Load Impedance | 1000 Ohms |
|
| Powering Interface | | Voltage | 2 to 12 V | | Current | 2 mA |
|
| Audio Output | | Type | Mini XLR | | Gender | Female | | Contacts | 3-pin |
|
| Design | |
| Dimensions / Weight | | Height | 15 mm | | Diameter | 7.5 - 7.5 mm | | Net Weight | 68 g |
|
