Overview

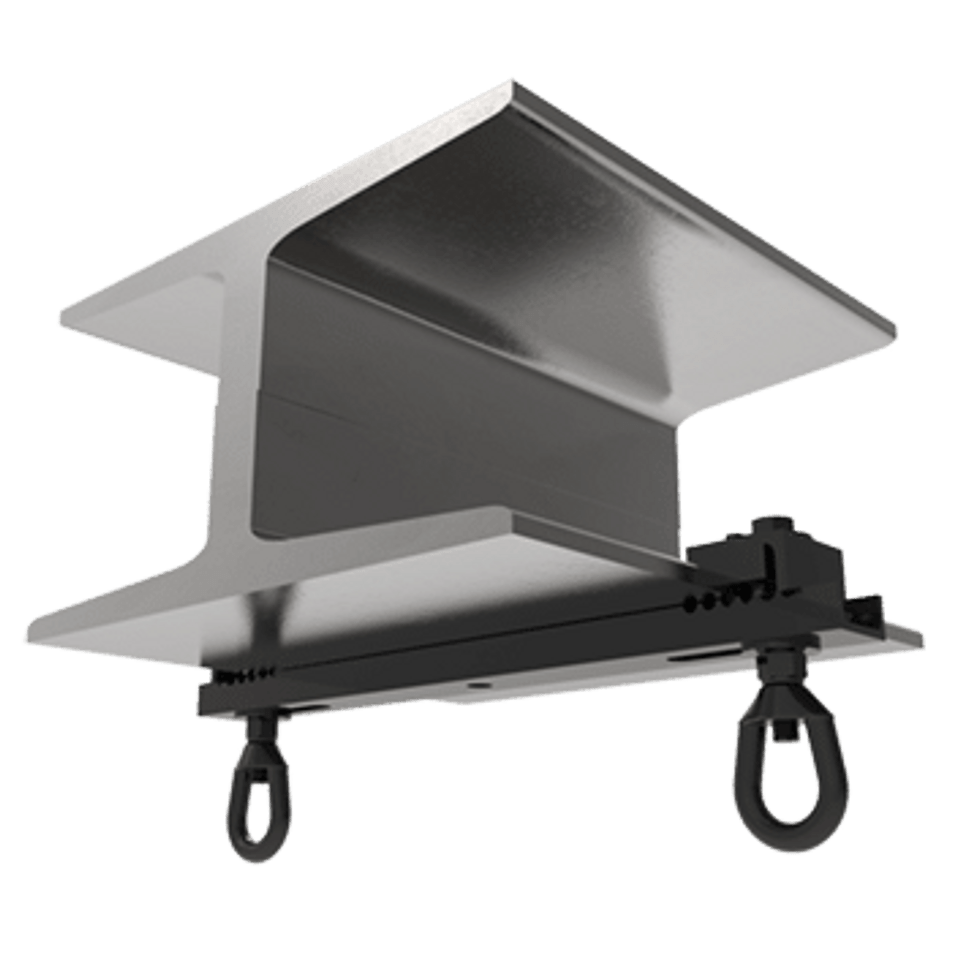

Provides two offset load rated rigging points from structural I-Beams with flange widths ranging between 12” and 17” (304-431 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.
NOTE: Recommended torque = 40-50 ft/lb
Standard Features
- For Beam Flanges 12″-17″
- Two load-rated suspension points
- Clamps quickly / permanently to I-Beams
Specifications
| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: All Steel Components | 2 pcs 5/8” eye nut |
| Width:(BC12-17-2) 12” to 17” / 304mm to 406mm | 1 pc Channel Clamp |
| WLL:980 lb / 445 Kg WLL (VERTICAL) | |
| Finish: Powder Coat | |
| Color: Black | |
| Design Factor: 5:1 | |
| 45 DEG. 578 lb / 261 Kg | |
