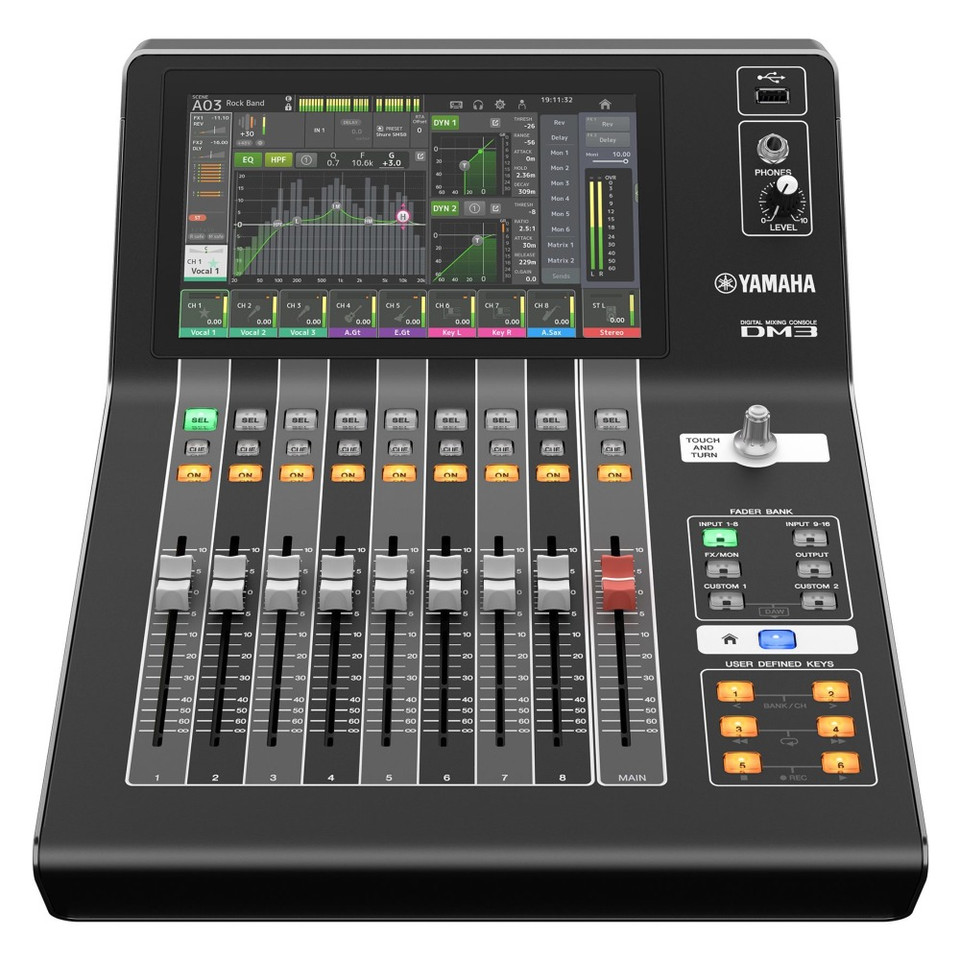

Yamaha DM3-D

Yamaha DM3-D

Yamaha DM3-D

Yamaha DM3-D

Professional 22 Channel Ultra-compact Digital Mixer with Dante

SKU: YAM-DM3-D
MSRP: $2,915.00
MAP: $2,099.99

Overview:

The Yamaha DM3-D is a 22-channel digital mixer with capabilities that far exceed the confines of its ultra-compact size. Although the DM3-D is jam-packed with cutting-edge features, it's a breeze to navigate thanks to its best-in-class, 9-inch touchscreen and single all-purpose touch-and-turn knob. You get crystal-clear 96kHz audio, which is bolstered by 16 excellent-sounding mic preamps and eight analog outputs. Yamaha has long been renowned for their digital effects, going way back to their '80s-era REV and SPX processors, and the DM3-D reflects that storied heritage. You'll also benefit from multiple recording and streaming options, including an 18 x 18 USB interface, 16 x 16 Dante interface, and 2 x 2 recording directly to a USB drive. A DAW remote mode with transport control and custom control via OSC, USB-MIDI, and ProVisionaire round out the DM3-D's extensive feature set. Want a subcompact, Dante-equipped digital mixer with zero sacrifices or compromises? If so, the solution is simple: the Yamaha DM3-D.

Features:

  • Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns
  • 9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
  • Capable of sampling rates as high as 96kHz
  • 6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
  • 16 outstanding mic preamps and 8 convenient analog outputs
  • Excellent built-in DSP effects
  • 16 x 16 Dante interface supplies loads of room for expansion
  • 18 x 18 USB audio interface for playback and recording
  • 2 x 2 recording directly to a USB drive
  • DAW remote mode with transport control
  • Custom control via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications

Specs:

  • Type: Digital Mixer
  • Channels: 22
  • Inputs - Mic Preamps: 12 x XLR, 4 x XLR-1/4" combo
  • Phantom Power: 16 Channels
  • Outputs - Main: 8 x XLR
  • Busses/Groups: Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix)
  • Data I/O: 2 x Locking Ethernet (Dante), 1 x RJ-45 (LAN)
  • Headphones: 1 x 1/4"
  • USB: 1 x Type A, 1 x Type B
  • Computer Connectivity: USB (18 x 18)
  • Faders: 9 x 100mm Motorized Faders
  • A/D Resolution: Up to 96kHz
  • DAW Control: Yes
  • Screen: 9" touchscreen
  • Storage: USB Slot
  • Power Source: 24V DC, 2.5A Power Supply (included)
  • Height: 5.5"
  • Depth: 17.9"
  • Width: 12.6"
  • Weight: 14.33 lbs.
