Overview:

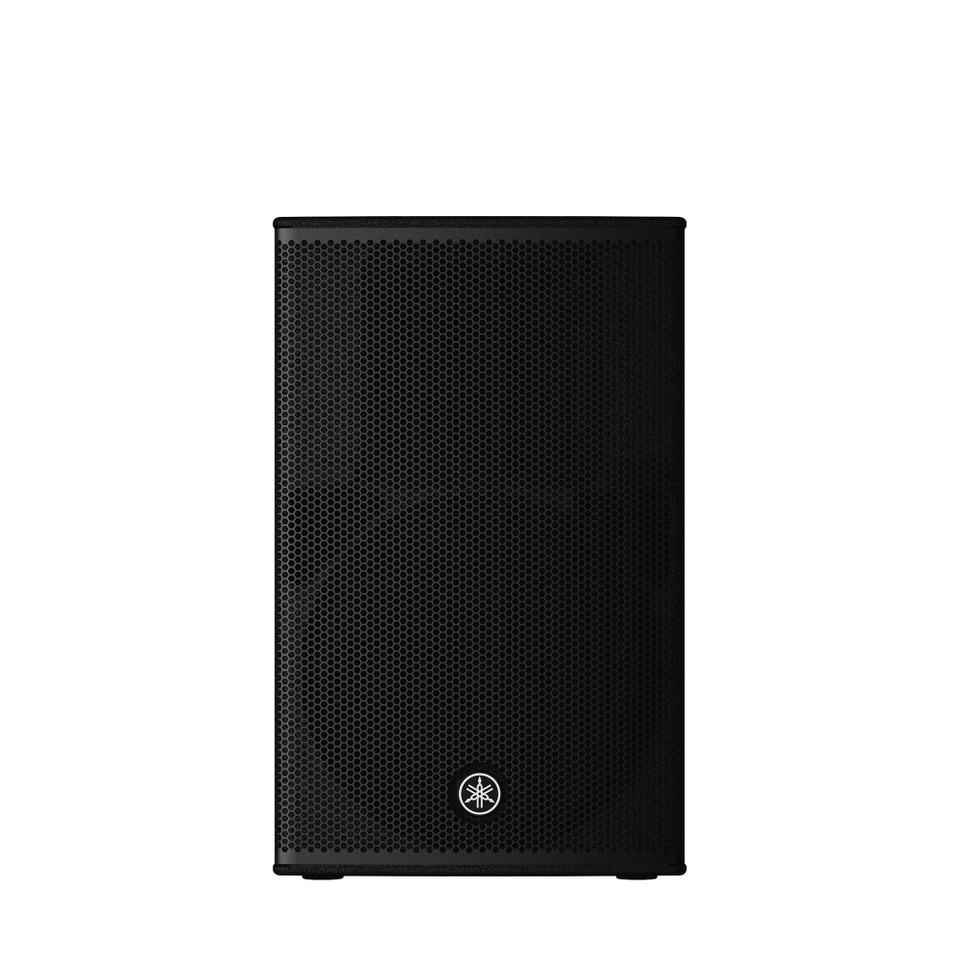

The DHR12 is a 2-way bi-amp powered loudspeaker equipped with a 12-inch woofer and a 1.4-inch HF driver, perfect for use as a main or utility speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12 offers best-in-class sound quality and durability.
Features:
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 12-inch LF driver that provides excellent low frequency response
- Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
- Optional UB-DXRDHR12 U-bracket allows both for vertical or horizontal use
- Dual-angle pole sockets offer both 0° or a -7° down tilt
- Rigging points for use with eye bolts
- Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specs:
Powered: Yes
Power Configuration:
Bi-amped LF Driver Size: 12"
woofer HF Driver Size: 1.4"
Titanium compression driver Total Power:
1000W Frequency Range: 52Hz-20khz (-10 dB)
Maximum Peak SPL: 125dB SPL
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Enclosure Material: Plywood
Mounting Options: Pole, Floor, Wall-mount
Power Source: Standard IEC AC cable
Height: 13.4"
Width: 14.1"
Depth: 22.8"
