Overview

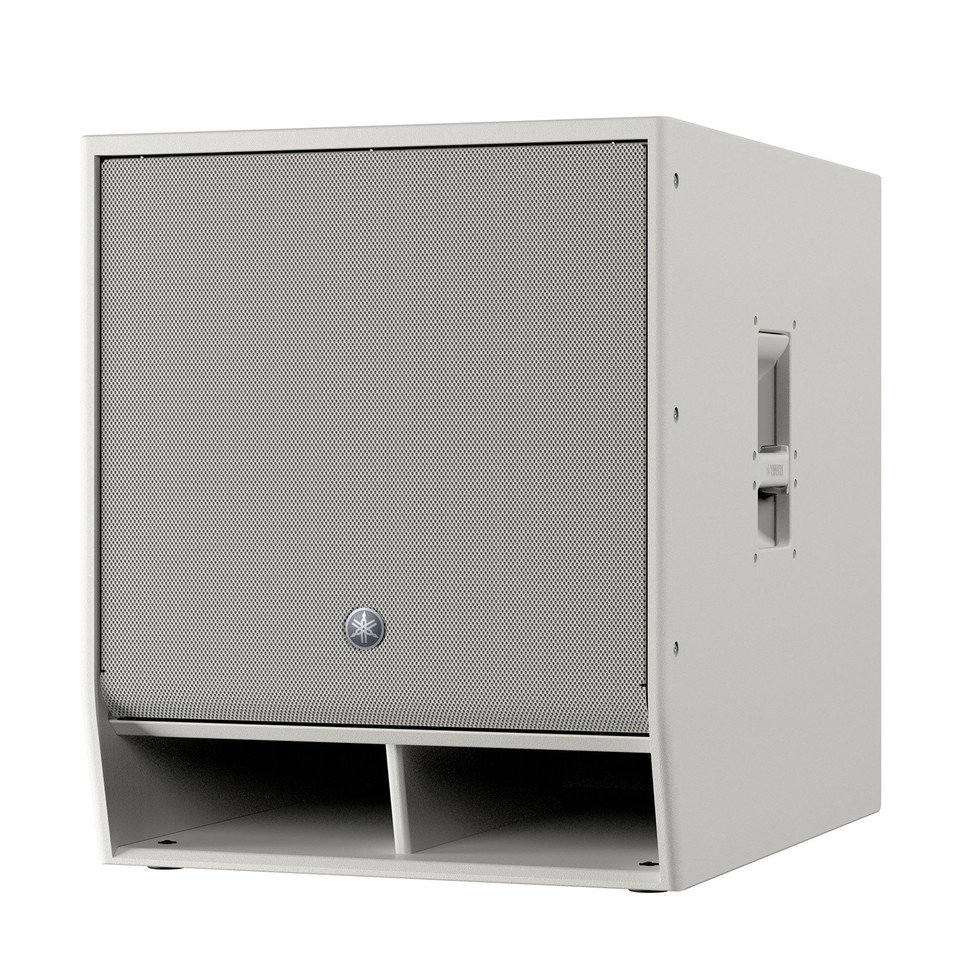

Perfectly suited for use with DZR full-range speakers, the DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
- Powered 18” subwoofer with 4” Voice Coil
- Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP for true high-resolution sound with super low latency
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
- Durable Black or White finish
Specifications
| Speaker type | Powered Subwoofer, bass-reflex | |
|---|---|---|
| Frequency range (-10dB) | 30Hz - 150Hz | |
| Coverage area | - | |
| Components | LF | 18" Cone, 4" Voice Coil, Ferrite magnet |
| MF | - | |
| HF | - | |
| Crossover | - | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 136dB SPL *1 | |
| SRC | Yes | |
| Power rating | Dynamic | 1600W *2 |
| Continuous | 1230W | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
| Digital I/O | Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T | |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 40W (Idle), 180W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | - | |
| Dimensions | W | 550 mm (21.7") |
| H | 657 mm (25.9") (with rubber feet) | |
| D | 720 mm (28.3") | |
| Net weight | 48.9kg (107.8lbs) | |
| Options | Cover: SPCVR-DXS18X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black | |
| Floor Monitor Angle | - | |
| Pole socket | Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
