Overview:

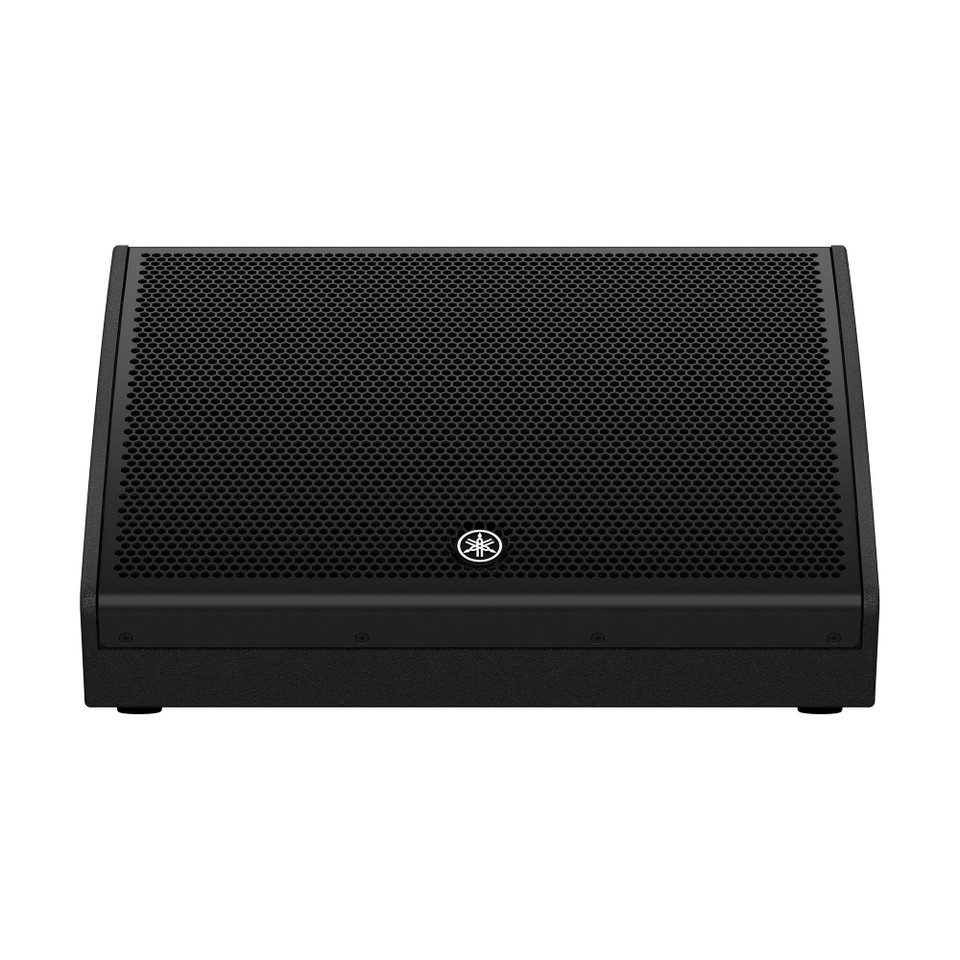

The CHR15M is a 2-way loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on our high-end CZR Series, the CHR15M offers best-in-class sound quality and durability.
Features:
The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
A pole socket for use on a stand
Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Specs:
Powered: No
Power Configuration: Bi-amped
LF Driver Size: 15" woofer
HF Driver Size: 1.4" HF Compression Driver
LF Driver Power Amp: 800W
HF Driver Power Amp: 200W
Total Power: 1000W
Frequency Range: 49Hz-20khz
Maximum Peak SPL: 125dB
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Enclosure Material: Plywood
Mounting Options: Floor
Height: 15.9"
Width: 17"
Depth: 27.2"
Weight: 48.5 lbs.
