Overview:

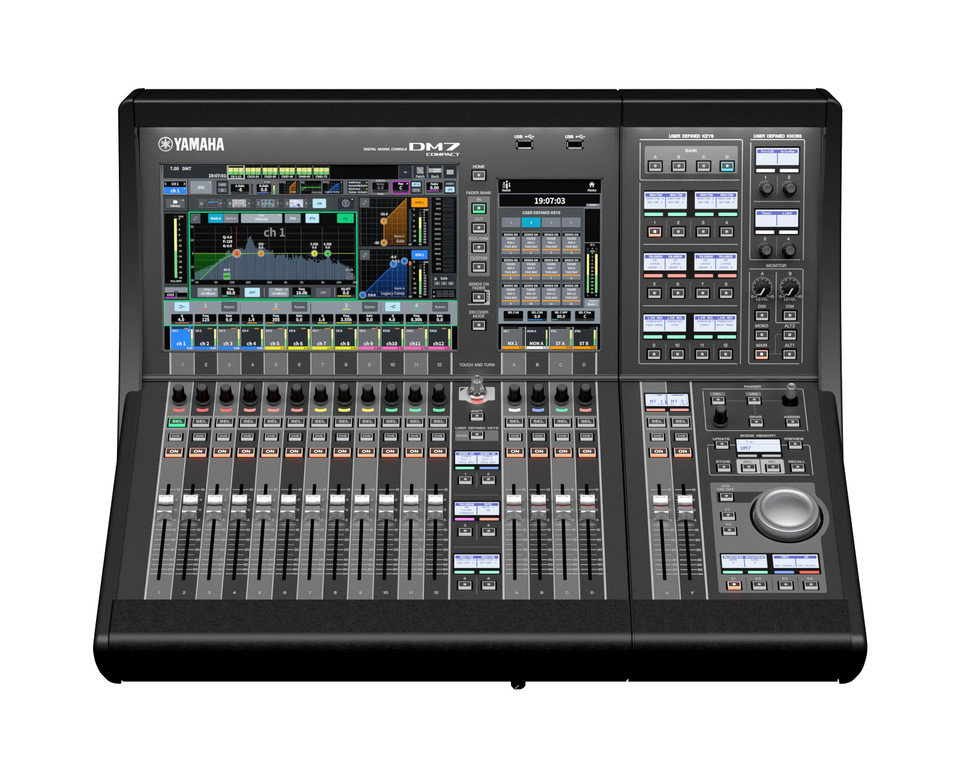

The DM7-EX Compact is a Dante-enabled 72-channel single bay digital console with control expansion. It is rack mountable using RK1. It provides tools that allow the user to reliably curate the perfect mix, no matter how short your soundcheck is. Capable of 96kHz sample rates, the DM7-EX Compact utilizes 18 faders, 12" high-res multi-tough screen, and an additional 7" screen. It includes an internal dual power supply, and 18x18 audio interface that works with Yamaha's VST RACK. Equipped with DAW remote and AI assist functions, the DM7-EX Compact is the perfect console for live sound, theater, broadcast, and corporate AV.
Features:
- Renowned Yamaha Sound with 96kHz sample rate
- Screens: 1 x High-Res Multi-touch 12” + 1 x High-Res 7”
- Faders: 12 + 4 + 2
- Mixable Channels: 72 inputs
- Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue
- Analog i/o: 16 x 16
- Digital: 1 AES Out
- PY Slot i/o: 64x64 @96k
- Dante: 144 x 144@96k
- USB-C: 18x18 Audio Interface – Works with VST RACK
- Time Code In
- Internal Dual Power Supply
- DAW Remote Function
- Split mode
- First-of-its-kind AI Assist Functions
Specs:
- Mixing Capacity72 Inputs, 48 MIX + 12 Matrix + 2 Stereo
- Sampling Frequency
- External Clock Frequency Range: 48 kHz / 96 kHz ±200 ppm
- Internal Clock Frequency: 48 kHz / 96 kHz
- Signal DelayLess than 1.5 ms, Input to Omni Out @Fs=96 kHz
- Screen12.1" multi-touch screen × 1, 7" multi-touch screen × 1
- Fader3.94" touch-sensitive motorized fader × 16
- Power Requirements100-240V, 50/60 Hz
- Power Consumption240W
- Dimensions (WxHxD)18.42x12.75x22.2" (including the rubber feet)
- Weight35.27 lbs
- NC Value*
- Fan Speed LOW: NC=15
- Fan Speed HIGH: NC=25
- *Measured 30 cm horizontally away and vertically up from the unit (front pad).
- Operating Temperature RangeMin: 0°C, Max: 40°C
- Storage Temperature RangeMin: −20°C, Max: 60°C
- Software
- DM7 Editor
- DM7 StageMix
- Console File Converter
- MonitorMix
- ProVisionaire Control/Touch
