Overview

WaveCAST System With 6 WAV Pro Wi-Fi Receivers

Discover real-time audio over Wi-Fi with this WaveCAST Wi-Fi assistive listening system. This system includes 6 easy-to-use WAV Pro Wi-Fi Receivers that deliver the assistive listening industry’s largest display at 6.8” full HD+ display, along with Bluetooth® compatibility and up to 40 hours of continuous audio streaming under normal use conditions. The WAV Pro Wi-Fi Receiver connects with any Williams AV WaveCAST-enabled product and allows users to connect via Bluetooth® to their own personal headphones, hearing aids, or neck loop. The WAV Pro Wi-Fi Receiver is the only wireless Wi-Fi device on the market that is new and purposed solely for assistive listening. The WaveCAST System with 6 WAV Pro Wi-Fi Receivers meets ADA hearing requirements.

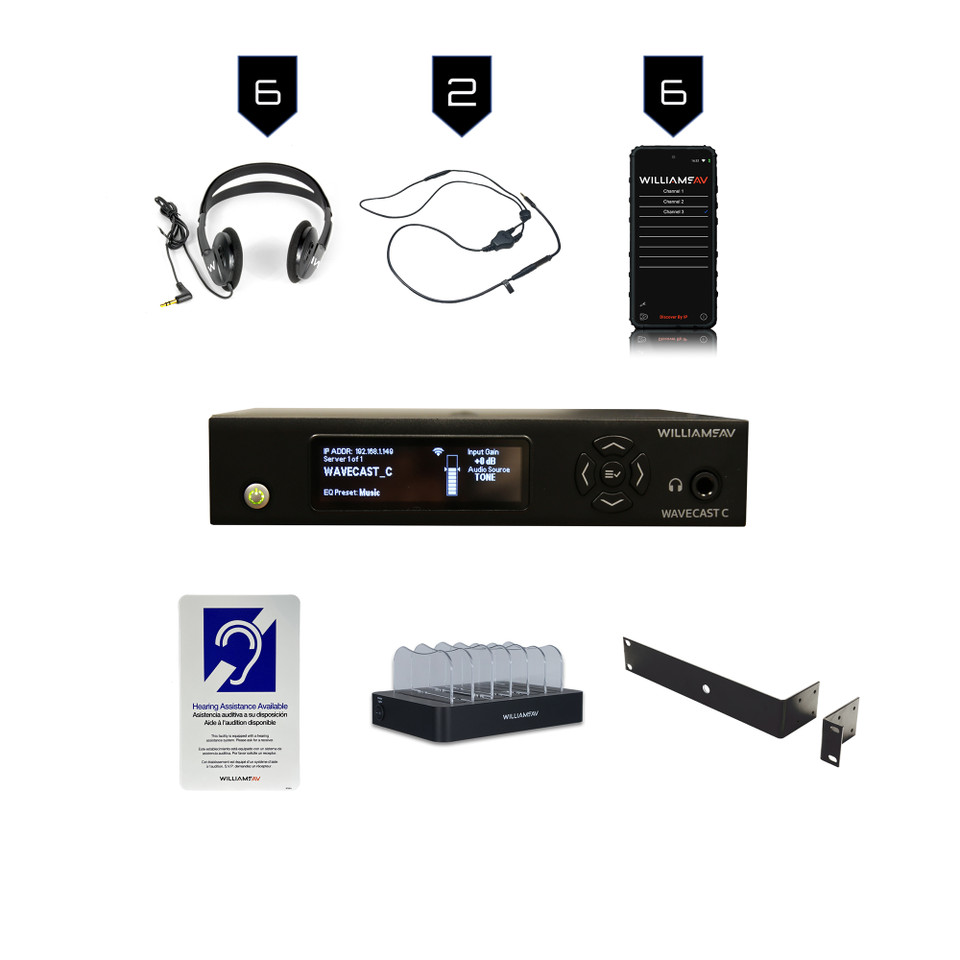

System Includes

(1) WaveCAST C transmitter (WF T5C)
(6) WAV Pro Wi-Fi Receivers (WF R2-N)
(2) Neckloops (NKL 008)
(1) Rack Panel Kit (RPK 005)
(6) Folding Stereo Headphones (HED 024)
(1) ADA Wall Plaque (IDP 008)
(1) 6-Bay Charger (AC CHG406)

Specifications

• Style: Stereo Headphones
• Plug: 3.5mm stereo
• Cord: 39"
• Driver Size: 30 mm
• Nominal Impedance: 16Ω
• Freq. Response: 20 - 20kHz
• Weight: 60g
• Max Power Input: 100 mW
• Sensitivity: 108 dB @ 1kHz
• Replacement Pads: HED 023 (one pair)
• IDP 008: 10-3/8" (L) x 6-¼" (W) x 1/8" (H)

WF R2-03

• Dimensions: 168 x 76.5 x 8.9 mm (6.61 x 3.01 x 0.35 in)
• Weight: 7.12 oz (202g) without case
• Display: 6.8” Full HD+ Infinity Dot 1080 x 2460 Resolution | 396ppi
• Receiver Jack: 3.5mm (1/8”) stereo headphone jack
• Battery Life: Lithium Polymer (Li-Po) 6000 mAh, non-removable
• Battery Life: Up to 40 hours of continuous audio streaming
• USB Connection: USB Type C for power and charging
• Wi-Fi Frequency Compatibility: Works on both 2.4Ghz and 5Ghz
• Approvals: CE, FCC, WEEE, CB Scheme, UK CA, RoHS3. RCM and IC- Pending
• Warranty: Williams AV warrants the WAV Pro Wi-Fi Receiver against defects in materials and workmanship under normal use and conditions for two years from the purchase. The WAV Pro Receiver’s rechargeable battery is warrantied for one year from the date of purchase.

NKL 001-S

• Color: Black
• Weight: 1.5 oz
• Length: 18.5” cord
• Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
• Impedance: 8-16 Ohms
• Input Power: 500 mW max
• Magnetic Field Strength: 25 mW input at 1000 Hz produces 1.7 A/m 6” above the center
  of loop 85μW input produces 0.1 A/m (IEC Standard)
• Approvals: RoHS, WEEE
• Warranty: One Year

WF T5C

• Dimensions: 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
• Weight: Transmitter: 3.2 lbs (1.45 kg)
• Color: Black
• Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
• Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC
  Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• Power ON Indicator: Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF.
• Temperature Range: Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
• User Interface: 1. 3.12” High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide" for available commands and protocol).
• Dante: (1x) RJ-45 jack. Only available on WF T5CD
• Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices.

Audio Section

• Audio Inputs: (1x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input (“D” models only).
• Audio Processor Functions: DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets
• Frequency Response: 31-16000 Hz, ±3 dB (re: 1 kHz) (“Music” Audio Preset)
• Signal-to-Noise Ratio: 64 dB (typical) Transmitted RF @ 1kHz
• Total Harmonic Distortion: Less than 0.25% @ 1 kHz (RF output)
• Common Mode Rejection: Greater than 57 dB @ 1 kHz, Mic or Line mode
• Audio Input Gain Adjust: Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page
• Phantom Power: 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
• Audio Level Display: Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by 'OLVD' and flashing empty bar.
• Headphone Output: 1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 Ω.
• Dante Output: (1x) RJ-45 jack, only available on WF T5CD
• Input Level (Bal or Unbal) (at Audio Input Gain = 0dB): Nominal (@7th Segment Lit)     Overload Warning (Displayed on Screen)     Absolute Max. Rating*
• Microphone: -45 dBV (5.6 mV RMS)     -20 dBV (100 mV RMS)     +20 dBV (10.0 V RMS)
• Line: -8.4 dBV (380 mV RMS)     +16 dBV (6.5 V RMS)     +20 dBV (10.0 V RMS)
• Approvals: FCC, RoHS3, WEEE, Industry Canada, CE, UK CA, RCM
• Warranty: 2-year parts and labor

AC CHG406

• Dimensions: 7.2”L x 5.1”W x 1.1”H (18.2 cm x 12.9 cm x 2.7 cm)
• Weight: 1.3 lbs (0.58 kg)
• Color: Black and clear plastic
• Power Input: AC100-240V 50/60Hz 0.5A max
• Power Output: DC 5.0V/10A (50W)
• Ai Output     DC 5V/2.4A
• Indicators: Individual Charging Indicators: Blue LEDs light up dividing clear panels
• Cable Length: 1.5m (4.9ft)
• Compatible Units: WAV Pro Wi-Fi Receiver (WF R2-03) and (WF R2-N)
• Warranty: 1 year (90-day warranty on cables and power supply)
• Approvals: CE, FCC, ETL and RoHs
• Notes: Accepts USB type A plugs, with a USB-C or with a micro-B plug that can connect to the device to be charged.
