Overview

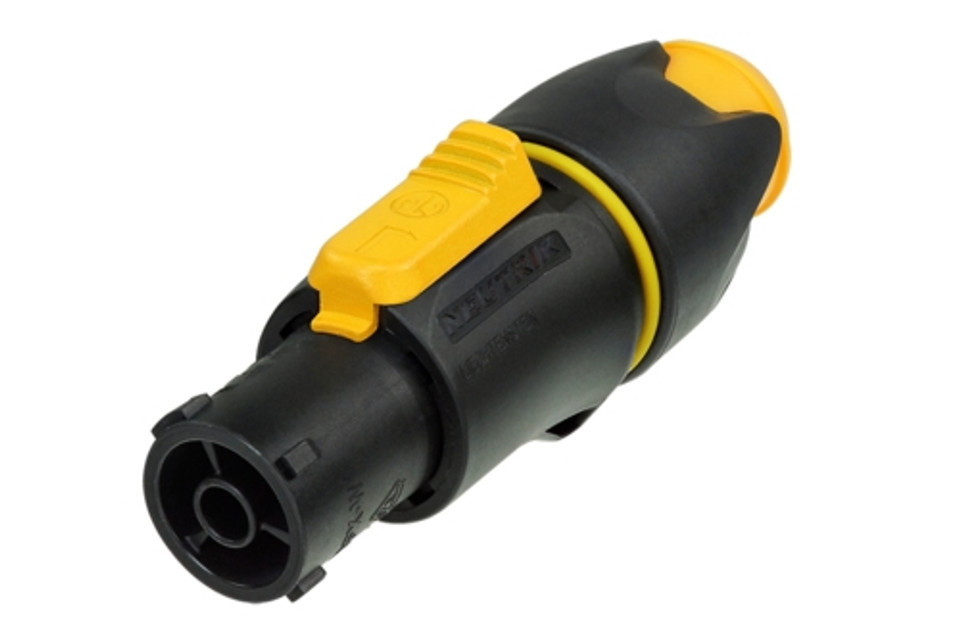

Locking female cable connector, screw terminals
The powerCON TRUE1 is a locking waterproof 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Dust and water resistant according to IP65 in mated condition
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL recognized components
Specifications
| Electrical |
|
| Contact resistance |
≤ 3 mΩ |
| Dielectric strength |
4 kVdc / 2.8 kVac |
| Insulation resistance |
> 0,1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts |
2 + PE |
| Rated current per contact |
16 A rms (USA: 20 A) |
| Rated voltage |
250 V ac |
| Mechanical |
|
| Cable O.D. |
6 - 12 mm |
| Lifetime |
> 5000 mating cycles |
| Wiresize |
1.0 - 2.5 mm² |
| Wiresize |
12 AWG |
| Material |
|
| Contact plating |
2 µm Ag |
| Contacts |
Bronze (CuSn0.2) |
| Insert |
Polyamide (PA 6.6 30 % GR) |
| Locking element |
ZuAl4Cu1 |
| Shell |
Polyamide (PA 6.6 30 % GR) |
| Strain relief |
Polyacetal (POM) |
| Environmental |
|
| Flammability |
UL 94 V-0 |
| Protection class |
IP 65 (mated) |
| Temperature range |
-30 °C to +80 °C |
