Overview

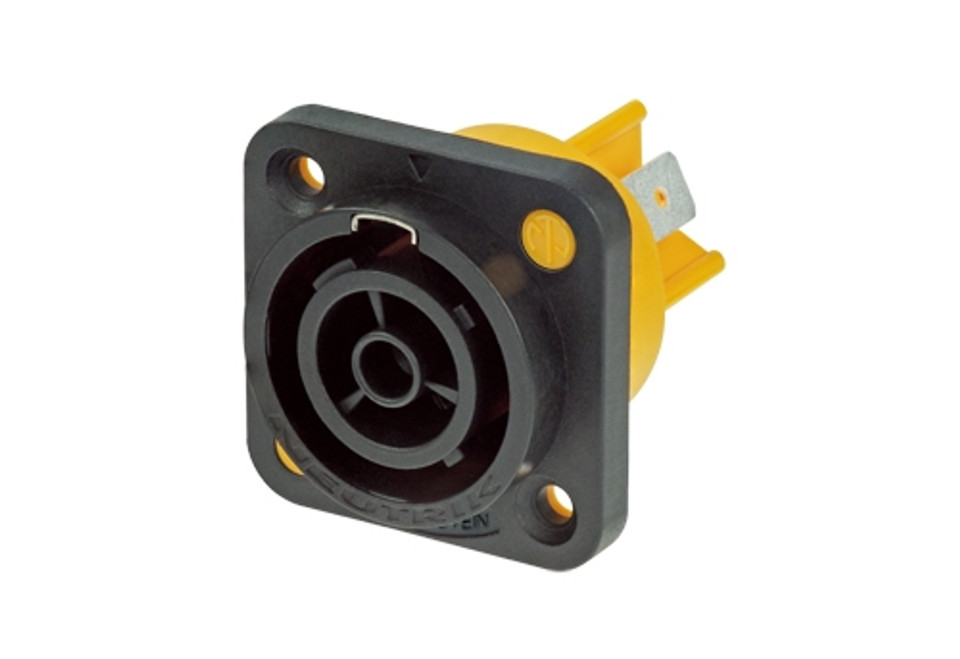

Appliance outlet connector, 1/4'' flat tab terminals
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features
Appliance outlet
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- ENEC certified according to IEC 60320
- UL recognized components
- IP65 ingress protection in mated condition and unmated in combination with SCNAC-FPX
Specifications
| Electrical |
|
| Contact resistance |
≤ 3 mΩ |
| Dielectric strength |
4 kVdc / 2.8 kVac |
| Insulation resistance |
> 0.1 GΩ (after damp heat test) |
| Number of electronical contacts |
2 + PE |
| Rated current per contact |
16 A rms (USA: 20 A) |
| Rated voltage |
250 V ac |
| Mechanical |
|
| Lifetime |
> 5000 mating cycles |
| Wiresize |
2.5 mm² |
| Wiresize |
12 AWG |
| Material |
|
| Contact plating |
2 µm Ag |
| Locking element |
Stainless steel |
| Shell |
Polyamide (PA 6.6) |
| Contacts |
Spring Copper (CuSn0.2) |
| Environmental |
|
| Flammability |
UL 94 V-0 |
| Temperature range |
- 30 °C - +80 °C |
