Description

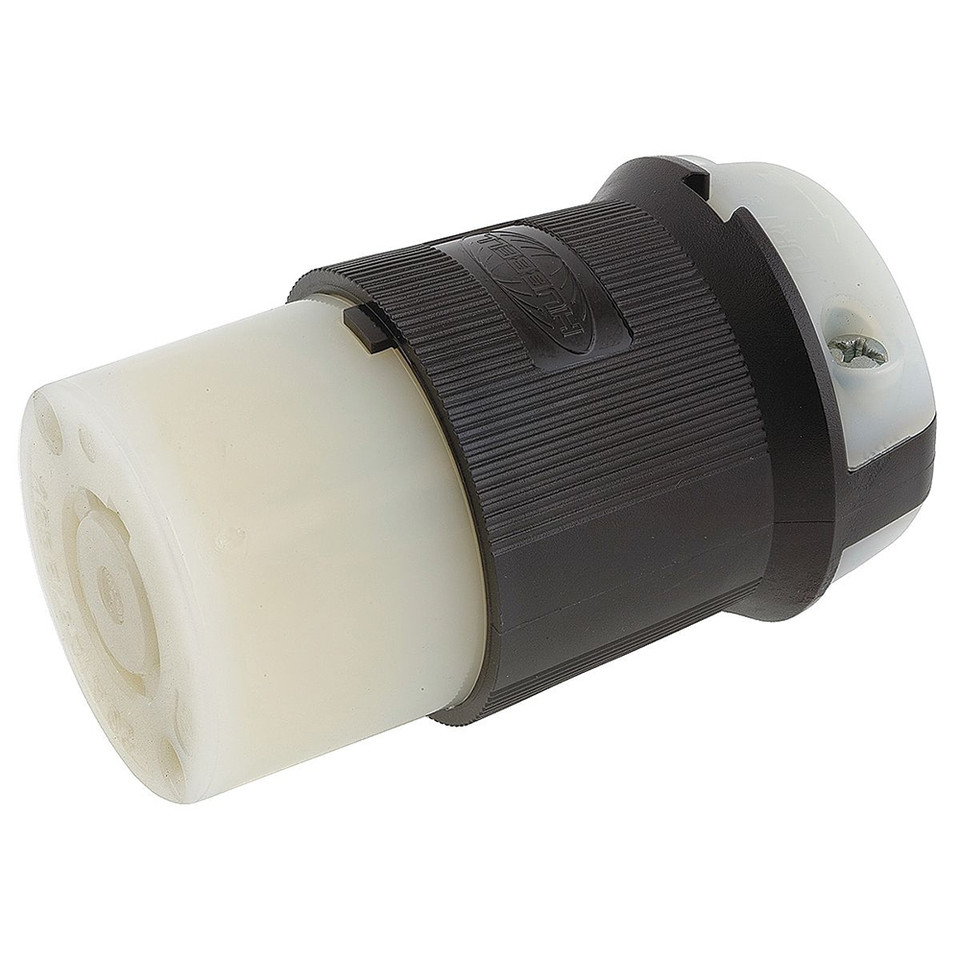

The HBL2513 is a 4-pole 5-wire 3-phase 20A 120/208VAC Y-type Twist-Lock NEMA L21-20R Insulgrip Grounding Connector, made of black and white nylon body, brass contacts, #10-32 Phillips/slotted/Robertson screw terminals and 9 to 29mm cord diameter.

• UL 498 listed
• HB or better per UL94 or CSA 22.2 No. 0.6 Flammability test
• IP20 Moisture resistance rating
• -40 to 75°C Operating temperature range
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants

Product Specifications:

• Connector Body Material:Nylon (Polyamide) Body
• Connector Color:Black, White
• Connector Type:Power Entry
• Current Rating:20A
• SVHC:To Be Advised
• Series:Insulgrip
• Voltage Rating VAC:208V
